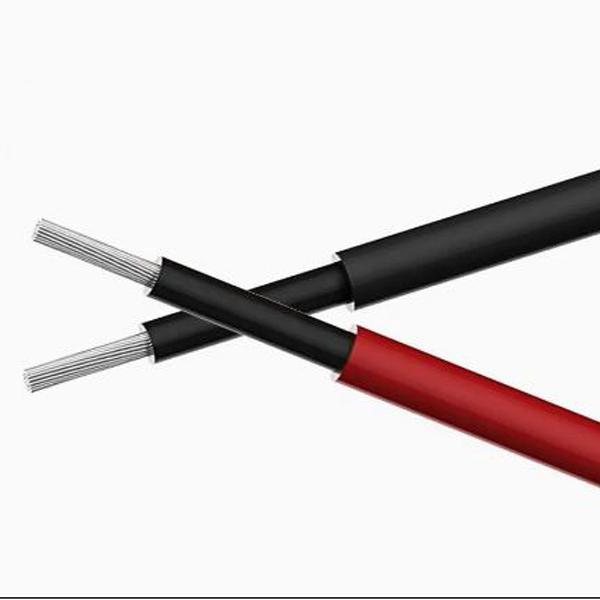

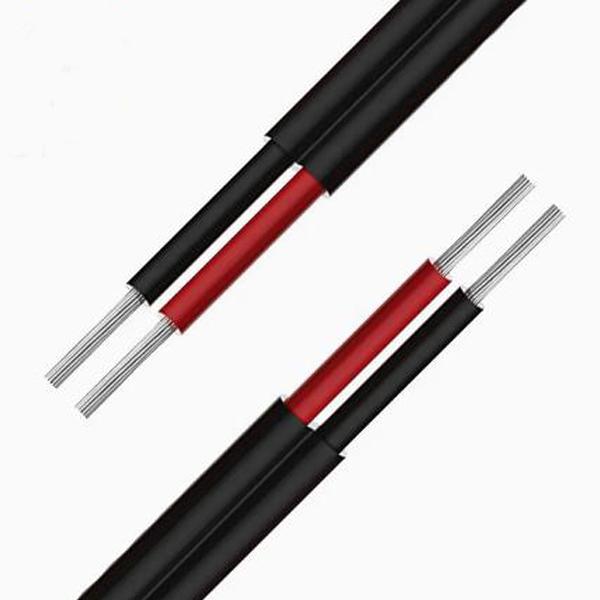

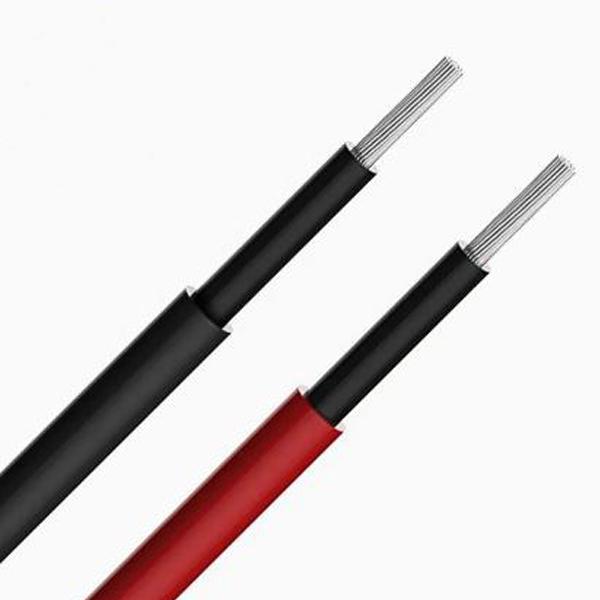

TUV H1z2z2-K PV1-F Xlpo XLPE Solar System Photovoltaic Flexible Copper PV Solar Panel Electrical Wire DC Electric Solar Cable

Introduction:

Photovoltaic cables are crafted from resilient cross-linked materials, expertly engineered to withstand UV-induced challenges such as degradation, cracking, embrittlement, and reduced longevity. Remarkably, these materials maintain their flexibility and robust mechanical properties, even after enduring exposure for an incredible duration of up to 25 years.

PV Solar cable specification:

Advantages:

• Dual Defense System: Capsaicin repellent + anti-penetration textile layer.

• Non-Toxic Formula: Eco-friendly, harmless to wildlife.

• Maintenance Cost Reduction: Prevents 90% of rodent-related faults.

• Compatibility Retained: Fully compliant with EN 50618/IEC 62930.

• No Conductivity Loss: Aramid layer is non-metallic and non-corrosive.

Characteristics:
Ambient temperature: 60℃
Max. conductor working temperature : 120℃
Rated temperature: -40~90℃
Rated Rating: DC:1/1.8KV AC: 0.6/1KV
Rated Current: 33~57A 41~98A
Weathering Resistance: Sun Resistant

Application:

Applications of Solar Cable / PV Wire

1.Unwavering UV Resistance for Outdoor Photovoltaic Projects

2.Exceptional High Insulation for Large Power Projects

3.Superior Flame Retardancy for Power Stations or Large Urban Projects

4.Unmatched Waterproof Performance for River and Ocean Photovoltaic Projects

5.Ingenious Anti-Termite & Rodent Cable Solutions

Cable Construction:

• Double insulation, electron beam cross-linked
• Excellent resistance to UV, water, ozone, fluids, salt, general weathering
• Excellent resistance to abrasion
• Halogen-free, flame retardant, low toxicity
• Excellent flexibility and stripping performance
• High current carrying capacity
• TUV and UL approved

Solar cables (PV wires) are crucial components in a solar power system, engineered to ensure electrical efficacy and reliability under harsh environmental conditions. Selecting the proper size and type of solar cable is vital for ensuring a safe and efficient solar installation. Always adhere to local electrical codes and manufacturer guidelines when choosing and installing these cables.

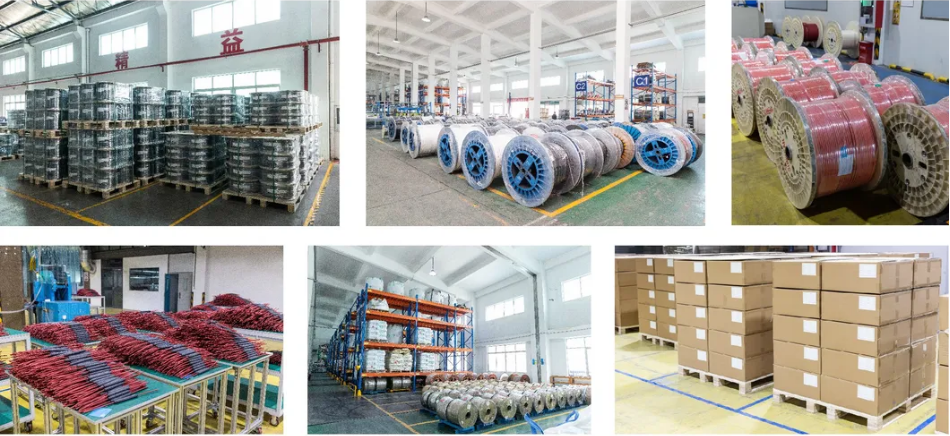

Packaging: 100 meters/roll. Or packed on wooden drum, as per customer’s requirements.
HS Code: 8544492100

Q & A:

1. Rated voltage

A.C. 0.6/1KV

D.C. 1500V

Max. voltage D.C. 1.8kv

2. Permissible ambient temperature

-40°C up to +90°C

3. Max. conductor temperature

at normal operation 120 °C

at short/circuit operation 200 °C

4. The min. Bending radius

4XD ( Note: D is for overall diameter of cable)

5. The min. thermal life

25 years

6. Free halogen, flame retardant

7. Weathering resistant, UV resistant, ozone erosion resistant, anti-penetration

Why Choose Us?

Anti-static compounds prevent dust accumulation

Memory-free coiling characteristics eliminate kinking

High-visibility coloration enhances worksite safety

Abrasion-resistant surfaces withstand concrete drag

Power your solar projects with unbreakable reliability! Request a FREE sample of our TÜV-certified PV cables today and experience superior performance firsthand.
