CNLINKO USB Plug Waterproof Usb 2.0 Panel Mount Waterproof Usb Female Connector
CNLINKO USB Plug Waterproof Usb 2.0 Panel Mount Waterproof Usb Female Connector
CNLINKO USB Plug Waterproof Usb 2.0 Panel Mount Waterproof Usb Female Connector
CNLINKO USB Plug Waterproof Usb 2.0 Panel Mount Waterproof Usb Female Connector
CNLINKO USB Plug Waterproof Usb 2.0 Panel Mount Waterproof Usb Female Connector
CNLINKO USB Plug Waterproof Usb 2.0 Panel Mount Waterproof Usb Female Connector
CNLINKO USB Plug Waterproof Usb 2.0 Panel Mount Waterproof Usb Female Connector
CNLINKO USB Plug Waterproof Usb 2.0 Panel Mount Waterproof Usb Female Connector
CNLINKO USB Plug Waterproof Usb 2.0 Panel Mount Waterproof Usb Female Connector
CNLINKO USB Plug Waterproof Usb 2.0 Panel Mount Waterproof Usb Female Connector
CNLINKO USB Plug Waterproof Usb 2.0 Panel Mount Waterproof Usb Female Connector
CNLINKO USB Plug Waterproof Usb 2.0 Panel Mount Waterproof Usb Female Connector
Specifications
Place of Origin :
China
MOQ :
2
Price :
$2.48-4.68
Type :
usb
Application :
Automotive
Gender :
Female
Connector type :
waterproof usb connector
Withstanding Voltage :
500V/AC
Durability :
5000 circles
Material :
PBT,BLACK
Contact :
Copper Alloy
Coupling ring :
PA66,BLACK
Working Temperature :
-40℃ to 80℃
Connecting mode :
quickly bayonet connect
waterproof rate :
ip67
Rated current :
1.5A
Description

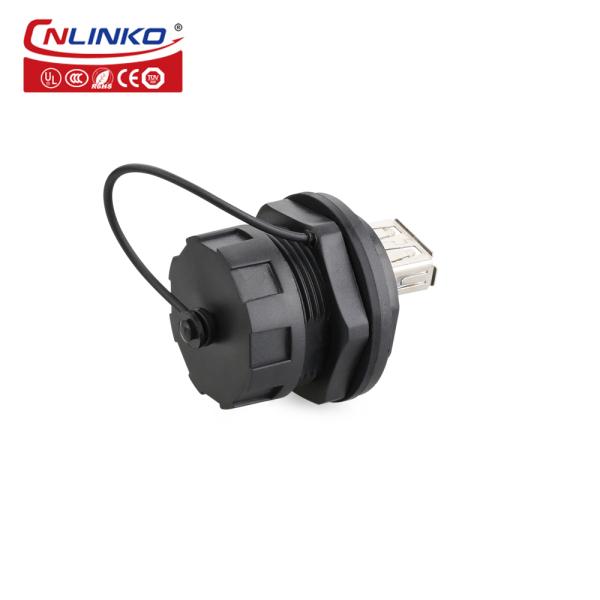

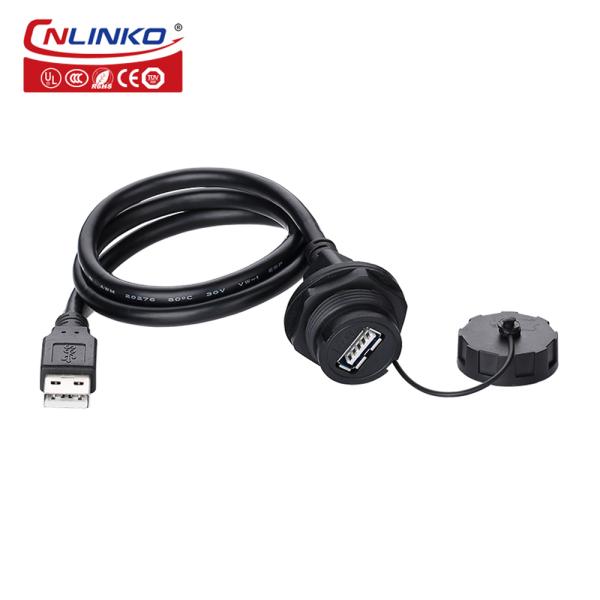

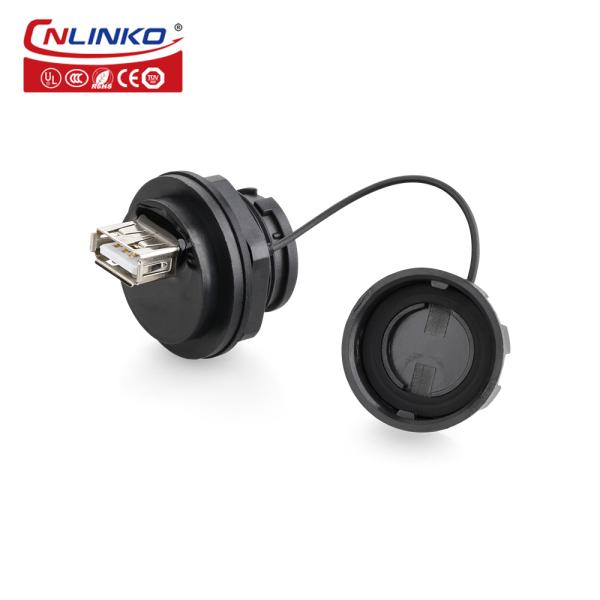

CNLINKO USB Plug waterproof usb 2.0 panel mount waterproof usb female connector

Features:

With PBT shell performance stable, compression, anti-explosion and anti-deformation unique dock connecting to extend cable length and Solid connections system can provide the solutions for data transmission in harsh environments, easy to install and operate.

Widely used in: computers, digital cameras, scanner and other transmission equipment. Varies types, can achieve male and female conversion docking, independent female, male with cable and so on.

Product Description

CNLINKO USB Plug Waterproof Usb 2.0 Panel Mount Waterproof Usb Female ConnectorCNLINKO USB Plug Waterproof Usb 2.0 Panel Mount Waterproof Usb Female ConnectorCNLINKO USB Plug Waterproof Usb 2.0 Panel Mount Waterproof Usb Female ConnectorCNLINKO USB Plug Waterproof Usb 2.0 Panel Mount Waterproof Usb Female ConnectorCNLINKO USB Plug Waterproof Usb 2.0 Panel Mount Waterproof Usb Female ConnectorCNLINKO USB Plug Waterproof Usb 2.0 Panel Mount Waterproof Usb Female ConnectorCNLINKO USB Plug Waterproof Usb 2.0 Panel Mount Waterproof Usb Female Connector

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP65/IP67
Cable specification 0.15mm2 ~ 0.2mm2 /26~24AWG
Diameter range Φ5.5mm ~Φmm
Contact diameter×Qty 4
Current rating(A) 1.5A
Temperature rise /
Withstanding voltage(AC.V)1min 1000V
Contact resistance <30mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0
Material
Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
Certifications
