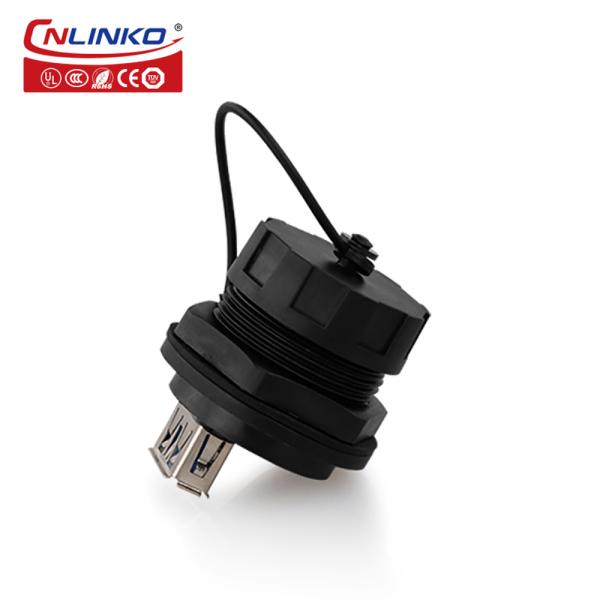

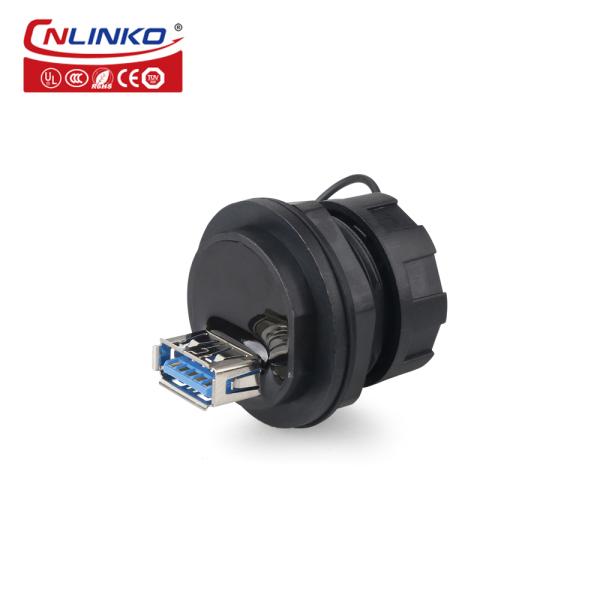

CNLINKO Waterproof USB3.0 a Female Connector Panel Mount Usb Connector
CNLINKO Waterproof USB3.0 a Female Connector Panel Mount Usb Connector
CNLINKO Waterproof USB3.0 a Female Connector Panel Mount Usb Connector
CNLINKO Waterproof USB3.0 a Female Connector Panel Mount Usb Connector
CNLINKO Waterproof USB3.0 a Female Connector Panel Mount Usb Connector
CNLINKO Waterproof USB3.0 a Female Connector Panel Mount Usb Connector
CNLINKO Waterproof USB3.0 a Female Connector Panel Mount Usb Connector
CNLINKO Waterproof USB3.0 a Female Connector Panel Mount Usb Connector
CNLINKO Waterproof USB3.0 a Female Connector Panel Mount Usb Connector
CNLINKO Waterproof USB3.0 a Female Connector Panel Mount Usb Connector
CNLINKO Waterproof USB3.0 a Female Connector Panel Mount Usb Connector
CNLINKO Waterproof USB3.0 a Female Connector Panel Mount Usb Connector
Specifications
Place of Origin :
Guangdong, China
Brand Name :
CNLINKO
Model Number :
YU-USB3-JSX-01-001
MOQ :
10
Price :
US$2.28-2.66
Type :
usb
Application :
Automotive, data transfering
Gender :
male+female
Connector type :
USB3.0
Waterproof level :
IP65
MOQ :
1pcs
Contact Qty :
9 pin
Current rating(A) :
1.5A
Contact resistance :
<30mΩ
Color :
Black
Material :
PBT
Product name :
3.0 usb connector
Description

Rugged USB3.0 A Female Connector panel mount usb connector

Features:

1. varies types, can achieve male &female conversion docking, independent female, male with cable, etc;
2. independent USB3.0 socket design, easy to install &operate;
3. compatible with USB2.0;
4. sheath of cable protect cable outlet;
5. Cable can be customized;
6. Solid connections system can provide the solutions for data transmission in harsh environments
7. protection level: IP67 Waterproof;
8. More Than 4 PIN USB Connector, USB to RJ11 Connector Similar to Hard Disk.

With PBT shell performance stable, compression, anti-explosion and anti-deformation unique dock connecting to extend cable length and Solid connections system can provide the solutions for data transmission in harsh environments, easy to install and operate.

Widely used in: computers, digital cameras, scanner and other transmission equipment. Varies types, can achieve male and female conversion docking, independent female, male with cable and so on.

Product Description

CNLINKO Waterproof USB3.0 a Female Connector Panel Mount Usb ConnectorCNLINKO Waterproof USB3.0 a Female Connector Panel Mount Usb ConnectorCNLINKO Waterproof USB3.0 a Female Connector Panel Mount Usb ConnectorCNLINKO Waterproof USB3.0 a Female Connector Panel Mount Usb ConnectorCNLINKO Waterproof USB3.0 a Female Connector Panel Mount Usb ConnectorCNLINKO Waterproof USB3.0 a Female Connector Panel Mount Usb Connector

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP65/IP67
Cable specification 0.15mm2 ~ 0.2mm2 /26~24AWG
Diameter range Φ5.5mm ~Φ6.5mm
Contact diameter×Qty 9
Current rating(A) 1.5A
Temperature rise /
Withstanding voltage(AC.V)1min 1000V
Contact resistance <30mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0
Material
Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
