Specifications
Place of Origin :
Guangdong, China
Brand Name :
Cnlinko
Model Number :
YU-USB3-CPI-01-100
Certification :
UL,CE,ROHS,CCC,ISO9001
MOQ :
2
Price :
US$7.13-14.26
Type :
usb
Application :
Data
Gender :
male and female, Female +male
Protection level :
IP68
Product type :
USB panel mount connector
Pin :
9 Pin
Current rating(A) :
1.5A
Shell & Insulated Parts :
High Performance Engineer Plastic
Hardware Matel :
Zinc Alloy (pearl hard chromium)
Connecting mode :
Quickly bayonet connect
Operating voltage :
500V
Description

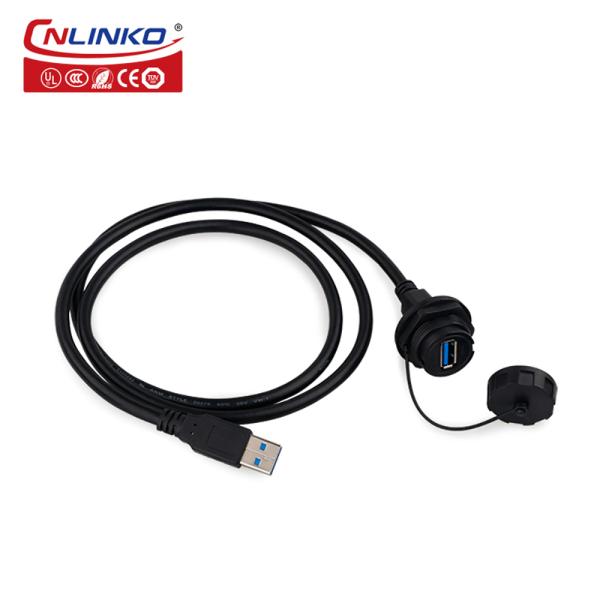

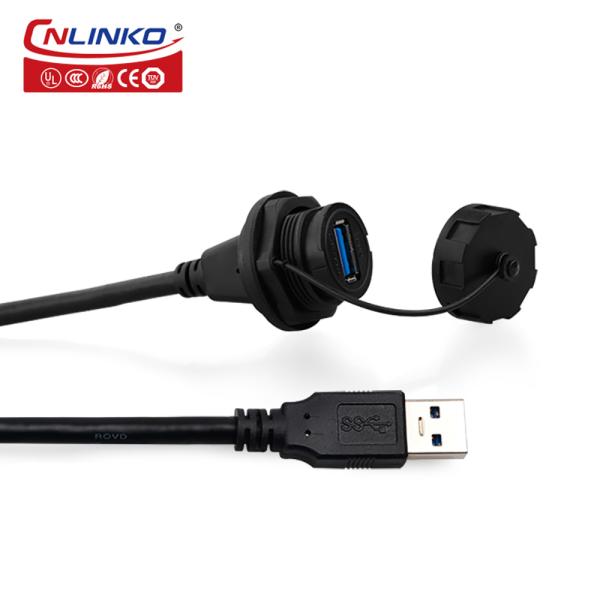

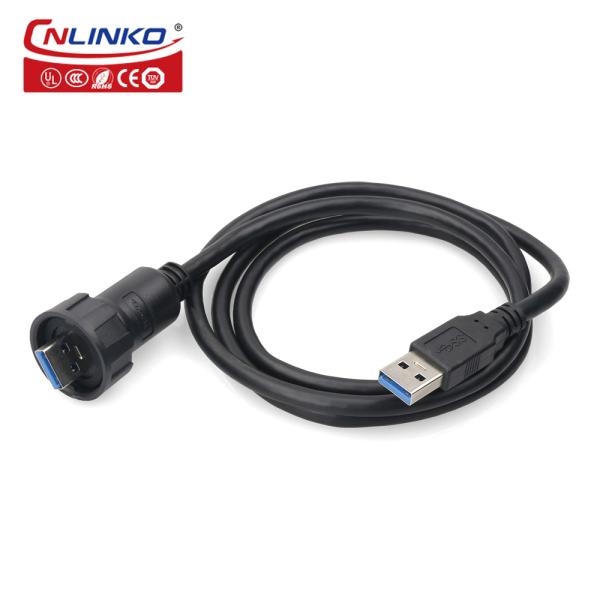

CNLINKO Waterproof USB panel mount Male Female Plug Socket USB 3.0 connector with Cover

Features:

1. varies types, can achieve male &female conversion docking, independent female, male with cable, etc;
2. independent USB3.0 socket design, easy to install &operate;
3. compatible with USB2.0;
4. sheath of cable protect cable outlet;
5. Cable can be customized;
6. Solid connections system can provide the solutions for data transmission in harsh environments
7. protection level: IP68 Waterproof;
8. More Than 4 PIN USB Connector, USB to RJ11 Connector Similar to Hard Disk.

With PBT shell performance stable, compression, anti-explosion and anti-deformation unique dock connecting to extend cable length and Solid connections system can provide the solutions for data transmission in harsh environments, easy to install and operate.

Widely used in: computers, digital cameras, scanner and other transmission equipment. Varies types, can achieve male and female conversion docking, independent female, male with cable and so on.

Product Description

CNLINKO Waterproof USB Panel Mount Male Female Plug Socket USB 3.0 Connector with Cover Mount Usb ConnectorCNLINKO Waterproof USB Panel Mount Male Female Plug Socket USB 3.0 Connector with Cover Mount Usb ConnectorCNLINKO Waterproof USB Panel Mount Male Female Plug Socket USB 3.0 Connector with Cover Mount Usb ConnectorCNLINKO Waterproof USB Panel Mount Male Female Plug Socket USB 3.0 Connector with Cover Mount Usb ConnectorCNLINKO Waterproof USB Panel Mount Male Female Plug Socket USB 3.0 Connector with Cover Mount Usb ConnectorCNLINKO Waterproof USB Panel Mount Male Female Plug Socket USB 3.0 Connector with Cover Mount Usb Connector

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP65/IP67
Cable specification 0.15mm2 ~ 0.2mm2 /26~24AWG
Diameter range Φ5.5mm ~Φ6.5mm
Contact diameter×Qty 9
Current rating(A) 1.5A
Temperature rise /
Withstanding voltage(AC.V)1min 1000V
Contact resistance <30mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0
Material
Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance

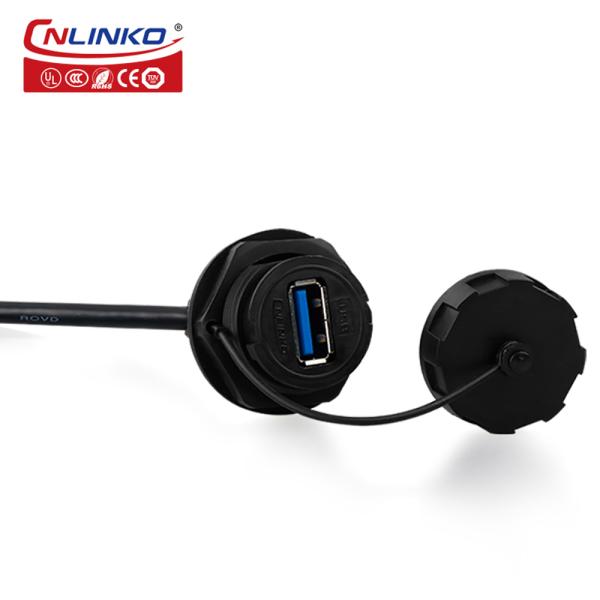

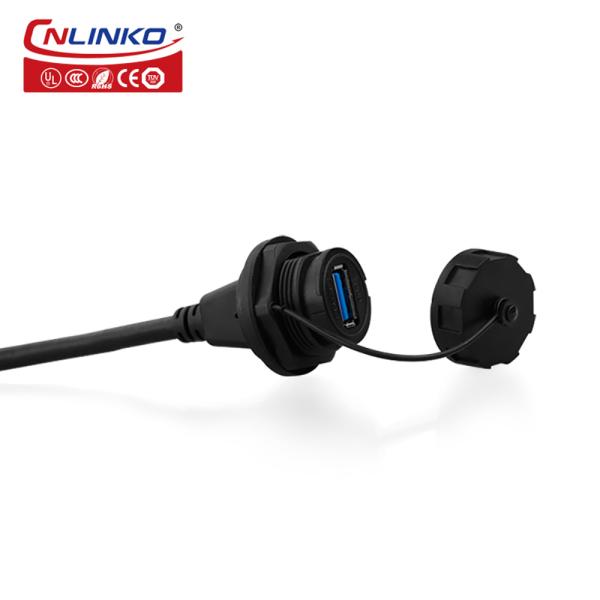

socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Certifications
