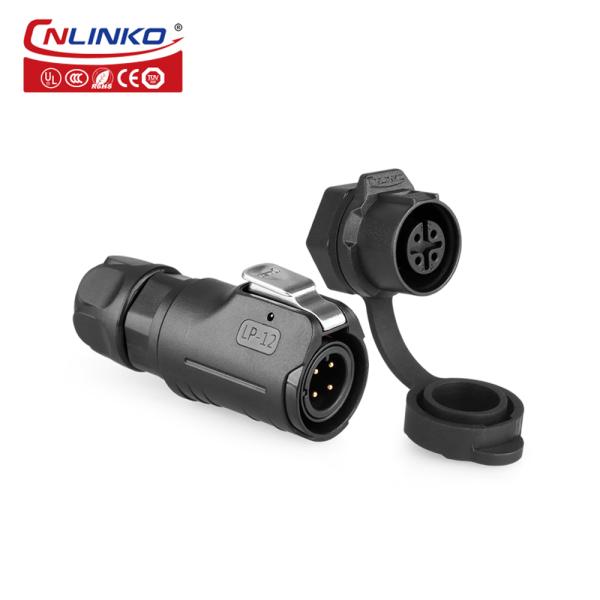

Cnlinko M12 IP68 Cable Wire Circular Waterproof Power 4pin Connector Male and Female Panel Mount Ebike Wire Cable Connector
Cnlinko M12 IP68 Cable Wire Circular Waterproof Power 4pin Connector Male and Female Panel Mount Ebike Wire Cable Connector
Cnlinko M12 IP68 Cable Wire Circular Waterproof Power 4pin Connector Male and Female Panel Mount Ebike Wire Cable Connector
Cnlinko M12 IP68 Cable Wire Circular Waterproof Power 4pin Connector Male and Female Panel Mount Ebike Wire Cable Connector
Cnlinko M12 IP68 Cable Wire Circular Waterproof Power 4pin Connector Male and Female Panel Mount Ebike Wire Cable Connector
Cnlinko M12 IP68 Cable Wire Circular Waterproof Power 4pin Connector Male and Female Panel Mount Ebike Wire Cable Connector
Cnlinko M12 IP68 Cable Wire Circular Waterproof Power 4pin Connector Male and Female Panel Mount Ebike Wire Cable Connector
Cnlinko M12 IP68 Cable Wire Circular Waterproof Power 4pin Connector Male and Female Panel Mount Ebike Wire Cable Connector
Cnlinko M12 IP68 Cable Wire Circular Waterproof Power 4pin Connector Male and Female Panel Mount Ebike Wire Cable Connector
Cnlinko M12 IP68 Cable Wire Circular Waterproof Power 4pin Connector Male and Female Panel Mount Ebike Wire Cable Connector
Cnlinko M12 IP68 Cable Wire Circular Waterproof Power 4pin Connector Male and Female Panel Mount Ebike Wire Cable Connector
Cnlinko M12 IP68 Cable Wire Circular Waterproof Power 4pin Connector Male and Female Panel Mount Ebike Wire Cable Connector
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Cnlinko
Model Number :
LP-12-C04PE-02-001
MOQ :
2
Price :
$2.06-2.41
Type :
Power, Waterproof Connector
Application :
Industrial
Gender :
Male and Female
Connector type :
M12 Connector
Current rating :
5A
Operating voltage :
250V
Wire Gauge :
22-20AWG
Certificate :
CE/ISO9001/RoHS/UL
Feature :
Easy Installation
Material :
Plastic
Package :
Carton Box
Description

M12 4pin waterproof power connector, IP68 4pin waterproof connector, male and female panel mount connector

Product Description

- Multi-style inner core design (2-8 cores), in line with various industrial requirements, the signal and power supply are compatible at the same time.
- Spring-pressed design, tightly docked, safe and secure.
- The orientation is strong, and blind insertion can be realized, and the humanized design in the true sense.
-3 core lock screws and solderable optional connection, fully compatible with outdoor installation work.
- Gold-plated contacts, high corrosion resistance and electrical conductivity, effectively coping with changes in temperature rise caused by current.
- Thermoplastic high temperature resistant plastic case, stable electrical performance, high strength, high temperature resistance and corrosion resistance.
- Unique docking design, solid extension of infinite line length.
-Flange 4 hole mounting, stable and impeccable, threaded single hole housing installation, suitable for circular opening industrial installation.
- The product complies with IP68 protection in the assembled state.

Cnlinko M12 IP68 Cable Wire Circular Waterproof Power 4pin Connector Male and Female Panel Mount Ebike Wire Cable ConnectorCnlinko M12 IP68 Cable Wire Circular Waterproof Power 4pin Connector Male and Female Panel Mount Ebike Wire Cable ConnectorCnlinko M12 IP68 Cable Wire Circular Waterproof Power 4pin Connector Male and Female Panel Mount Ebike Wire Cable ConnectorCnlinko M12 IP68 Cable Wire Circular Waterproof Power 4pin Connector Male and Female Panel Mount Ebike Wire Cable ConnectorCnlinko M12 IP68 Cable Wire Circular Waterproof Power 4pin Connector Male and Female Panel Mount Ebike Wire Cable ConnectorCnlinko M12 IP68 Cable Wire Circular Waterproof Power 4pin Connector Male and Female Panel Mount Ebike Wire Cable ConnectorCnlinko M12 IP68 Cable Wire Circular Waterproof Power 4pin Connector Male and Female Panel Mount Ebike Wire Cable ConnectorCnlinko M12 IP68 Cable Wire Circular Waterproof Power 4pin Connector Male and Female Panel Mount Ebike Wire Cable ConnectorCnlinko M12 IP68 Cable Wire Circular Waterproof Power 4pin Connector Male and Female Panel Mount Ebike Wire Cable ConnectorCnlinko M12 IP68 Cable Wire Circular Waterproof Power 4pin Connector Male and Female Panel Mount Ebike Wire Cable ConnectorCnlinko M12 IP68 Cable Wire Circular Waterproof Power 4pin Connector Male and Female Panel Mount Ebike Wire Cable ConnectorCnlinko M12 IP68 Cable Wire Circular Waterproof Power 4pin Connector Male and Female Panel Mount Ebike Wire Cable ConnectorCnlinko M12 IP68 Cable Wire Circular Waterproof Power 4pin Connector Male and Female Panel Mount Ebike Wire Cable Connector

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP68
Cable specification 0.3~0.5mm2 /22~20AWG
Diameter range Φ3mm ~Φ6mm
Contact diameter×Qty Φ1.0x4
Current rating(A) 5A
Temperature rise /
Withstanding voltage(AC.V)1min 1500V
Contact resistance <5mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0
Material
Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance

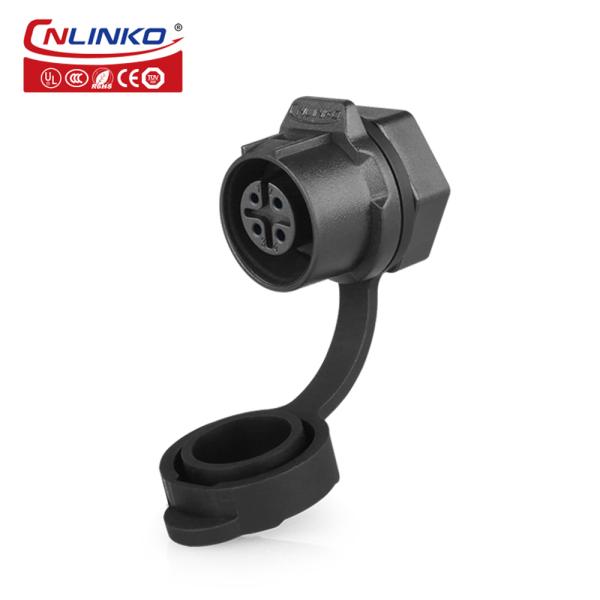

socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
Certifications
