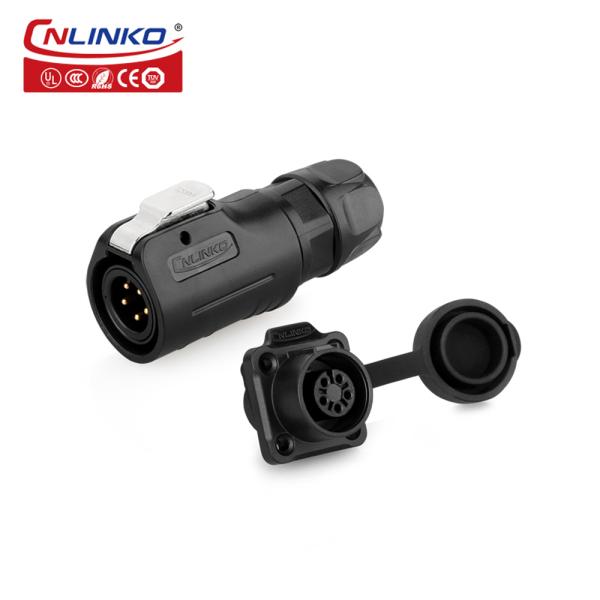

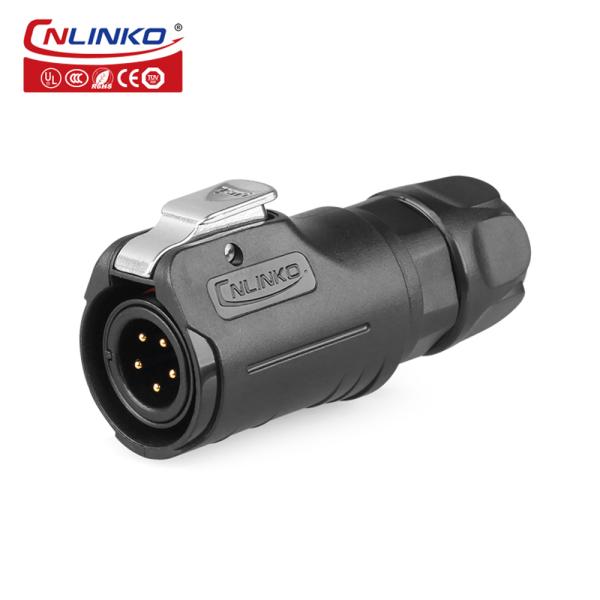

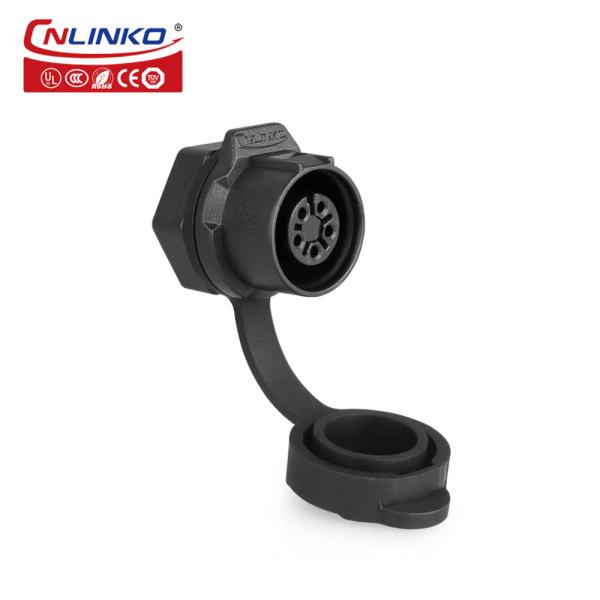

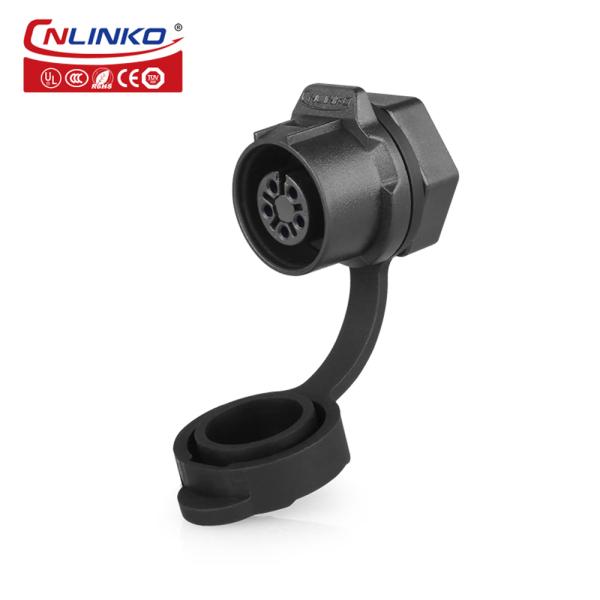

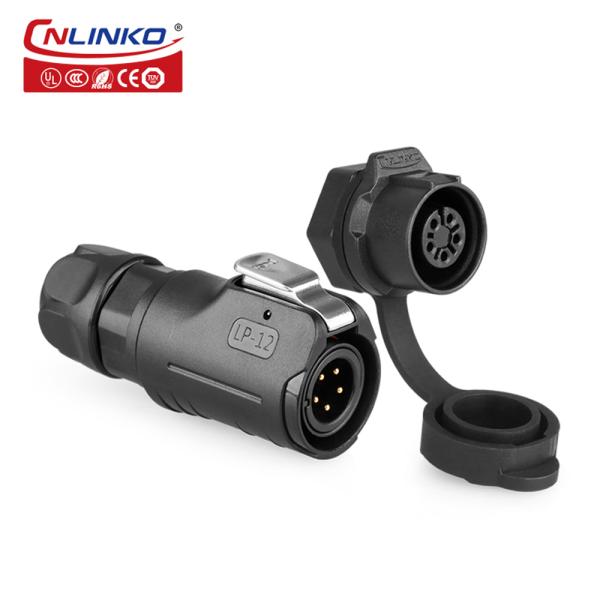

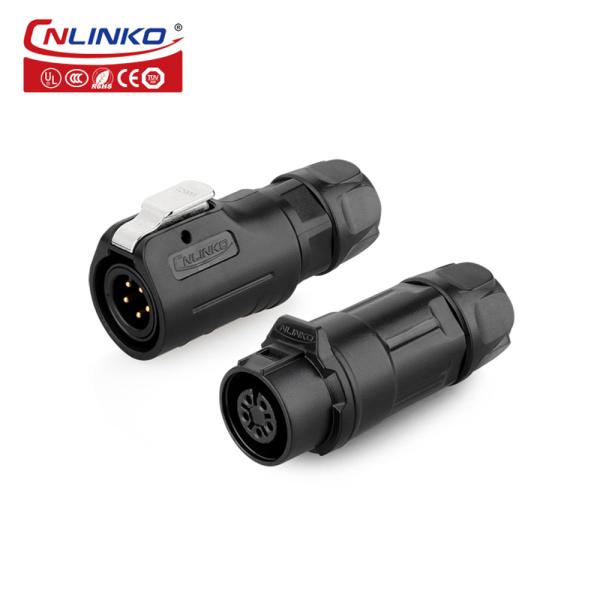

Water Resistance IP68 in Mated Cable Connector Outdoor Use M12 5 Pin Waterproof Connectors
Water Resistance IP68 in Mated Cable Connector Outdoor Use M12 5 Pin Waterproof Connectors
Water Resistance IP68 in Mated Cable Connector Outdoor Use M12 5 Pin Waterproof Connectors
Water Resistance IP68 in Mated Cable Connector Outdoor Use M12 5 Pin Waterproof Connectors
Water Resistance IP68 in Mated Cable Connector Outdoor Use M12 5 Pin Waterproof Connectors
Water Resistance IP68 in Mated Cable Connector Outdoor Use M12 5 Pin Waterproof Connectors
Water Resistance IP68 in Mated Cable Connector Outdoor Use M12 5 Pin Waterproof Connectors
Water Resistance IP68 in Mated Cable Connector Outdoor Use M12 5 Pin Waterproof Connectors
Water Resistance IP68 in Mated Cable Connector Outdoor Use M12 5 Pin Waterproof Connectors
Water Resistance IP68 in Mated Cable Connector Outdoor Use M12 5 Pin Waterproof Connectors
Water Resistance IP68 in Mated Cable Connector Outdoor Use M12 5 Pin Waterproof Connectors
Water Resistance IP68 in Mated Cable Connector Outdoor Use M12 5 Pin Waterproof Connectors
Specifications
Place of Origin :
Guangdong, China
Brand Name :
CNLINKO
Model Number :
LP-12-C05PE-02-001
Certification :
UL,ROHS,CCC,ISO9001
MOQ :
2
Price :
$4.08-5.08
Type :
Signal
Application :
Industrial
Gender :
male and female
Produce type :
m12 connector 5 pin
Current rating(A) :
5A
Protection level :
IP67/IP65
Shell & Insulated Parts :
High Performance Engineer Plastic
Hardware Mate :
Zinc Alloy (pearl hard chromium)
Connecting mode :
Quickly insert and pull out
Assembly :
Soldering
Operating voltage :
250V
Contact pin :
Copper alloy(gold-plated)
Description

Heavy Duty Dust And Water Resistand IP67 In Mated Cable Connector Outdoor Use M12 5 Pin Waterproof Din XLR Connectors

Product Description

- Multi-style inner core design (2-8 cores), in line with various industrial requirements, the signal and power supply are compatible at the same time.
- Spring-pressed design, tightly docked, safe and secure.
- The orientation is strong, and blind insertion can be realized, and the humanized design in the true sense.
-3 core lock screws and solderable optional connection, fully compatible with outdoor installation work.
- Gold-plated contacts, high corrosion resistance and electrical conductivity, effectively coping with changes in temperature rise caused by current.
- Thermoplastic high temperature resistant plastic case, stable electrical performance, high strength, high temperature resistance and corrosion resistance.
- Unique docking design, solid extension of infinite line length.
-Flange 4 hole mounting, stable and impeccable, threaded single hole housing installation, suitable for circular opening industrial installation.
- The product complies with IP67 protection in the assembled state.

Water Resistance IP68 in Mated Cable Connector Outdoor Use M12 5 Pin Waterproof ConnectorsWater Resistance IP68 in Mated Cable Connector Outdoor Use M12 5 Pin Waterproof ConnectorsWater Resistance IP68 in Mated Cable Connector Outdoor Use M12 5 Pin Waterproof ConnectorsWater Resistance IP68 in Mated Cable Connector Outdoor Use M12 5 Pin Waterproof ConnectorsWater Resistance IP68 in Mated Cable Connector Outdoor Use M12 5 Pin Waterproof ConnectorsWater Resistance IP68 in Mated Cable Connector Outdoor Use M12 5 Pin Waterproof ConnectorsWater Resistance IP68 in Mated Cable Connector Outdoor Use M12 5 Pin Waterproof ConnectorsWater Resistance IP68 in Mated Cable Connector Outdoor Use M12 5 Pin Waterproof ConnectorsWater Resistance IP68 in Mated Cable Connector Outdoor Use M12 5 Pin Waterproof ConnectorsWater Resistance IP68 in Mated Cable Connector Outdoor Use M12 5 Pin Waterproof ConnectorsWater Resistance IP68 in Mated Cable Connector Outdoor Use M12 5 Pin Waterproof ConnectorsWater Resistance IP68 in Mated Cable Connector Outdoor Use M12 5 Pin Waterproof ConnectorsWater Resistance IP68 in Mated Cable Connector Outdoor Use M12 5 Pin Waterproof Connectors

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP65/IP67
Cable specification 0.3~0.5mm2 /22~20AWG
Diameter range Φ3mm ~Φ6mm
Contact diameter×Qty Φ1.0x4
Current rating(A) 5A
Temperature rise /
Withstanding voltage(AC.V)1min 1500V
Contact resistance <5mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0
Material
Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
Certifications
