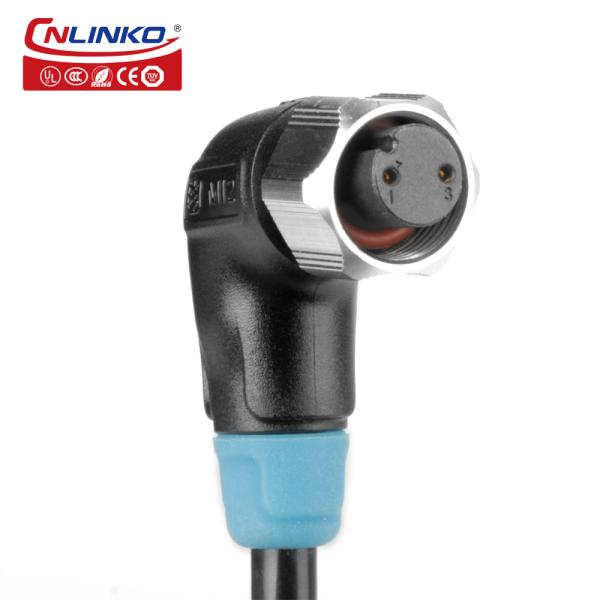

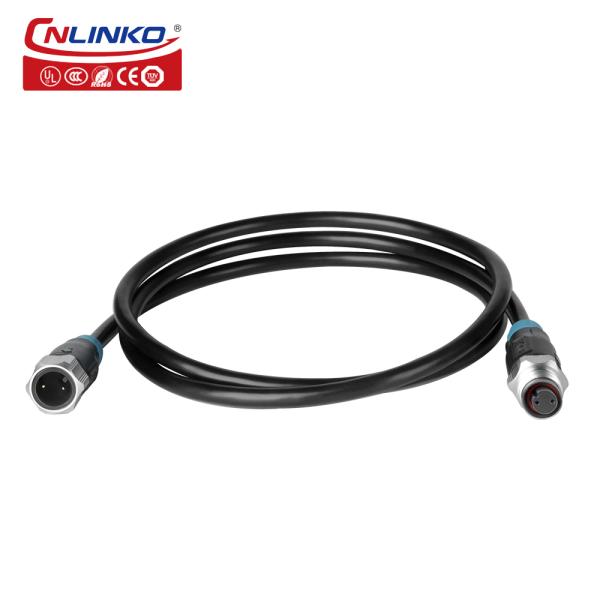

Cnlinko M12 Ip68 Male Female 2 Pin Aviation Plug Power Industrial Waterproof Wire Cable Connectors
Cnlinko M12 Ip68 Male Female 2 Pin Aviation Plug Power Industrial Waterproof Wire Cable Connectors
Cnlinko M12 Ip68 Male Female 2 Pin Aviation Plug Power Industrial Waterproof Wire Cable Connectors
Cnlinko M12 Ip68 Male Female 2 Pin Aviation Plug Power Industrial Waterproof Wire Cable Connectors
Cnlinko M12 Ip68 Male Female 2 Pin Aviation Plug Power Industrial Waterproof Wire Cable Connectors
Cnlinko M12 Ip68 Male Female 2 Pin Aviation Plug Power Industrial Waterproof Wire Cable Connectors
Cnlinko M12 Ip68 Male Female 2 Pin Aviation Plug Power Industrial Waterproof Wire Cable Connectors
Cnlinko M12 Ip68 Male Female 2 Pin Aviation Plug Power Industrial Waterproof Wire Cable Connectors
Cnlinko M12 Ip68 Male Female 2 Pin Aviation Plug Power Industrial Waterproof Wire Cable Connectors
Cnlinko M12 Ip68 Male Female 2 Pin Aviation Plug Power Industrial Waterproof Wire Cable Connectors
Cnlinko M12 Ip68 Male Female 2 Pin Aviation Plug Power Industrial Waterproof Wire Cable Connectors
Cnlinko M12 Ip68 Male Female 2 Pin Aviation Plug Power Industrial Waterproof Wire Cable Connectors
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Cnlinko
Model Number :
LM-20
Type :
Power
Application :
Industrial
Gender :
male and female
Product name :
LM-12 power connector
Pin :
2pin 3pin 4pin 5pin 7pin 8pin 9 pin 12ping
IP level :
IP65/IP67/IP68
MOQ :
10
Description
Specifications
Cnlinko M12 Ip68 Male Female 2 Pin Aviation Plug Power Industrial Waterproof Wire Cable Connectors Cnlinko M12 Ip68 Male Female 2 Pin Aviation Plug Power Industrial Waterproof Wire Cable Connectors Cnlinko M12 Ip68 Male Female 2 Pin Aviation Plug Power Industrial Waterproof Wire Cable Connectors Cnlinko M12 Ip68 Male Female 2 Pin Aviation Plug Power Industrial Waterproof Wire Cable Connectors Cnlinko M12 Ip68 Male Female 2 Pin Aviation Plug Power Industrial Waterproof Wire Cable Connectors Cnlinko M12 Ip68 Male Female 2 Pin Aviation Plug Power Industrial Waterproof Wire Cable Connectors Cnlinko M12 Ip68 Male Female 2 Pin Aviation Plug Power Industrial Waterproof Wire Cable Connectors Cnlinko M12 Ip68 Male Female 2 Pin Aviation Plug Power Industrial Waterproof Wire Cable Connectors Cnlinko M12 Ip68 Male Female 2 Pin Aviation Plug Power Industrial Waterproof Wire Cable Connectors Cnlinko M12 Ip68 Male Female 2 Pin Aviation Plug Power Industrial Waterproof Wire Cable Connectors Cnlinko M12 Ip68 Male Female 2 Pin Aviation Plug Power Industrial Waterproof Wire Cable Connectors

Specification
Connecting mode Latching Lock connect
Protection level IP65/IP67/IP68
Cable specification ≤0.785mm2 /18AWG
Diameter range Φ3mm ~Φ6mm
Contact diameter×Qty Φ0.8×6
Current rating(A) 3A
Temperature rise

7A contact temperature below 40℃

10A contact temperature below 50℃
Operating voltage(AC.V.rms) 200V
Withstanding voltage(AC.V)1min 1500V
Contact resistance <10mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0
Material
shell & Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance

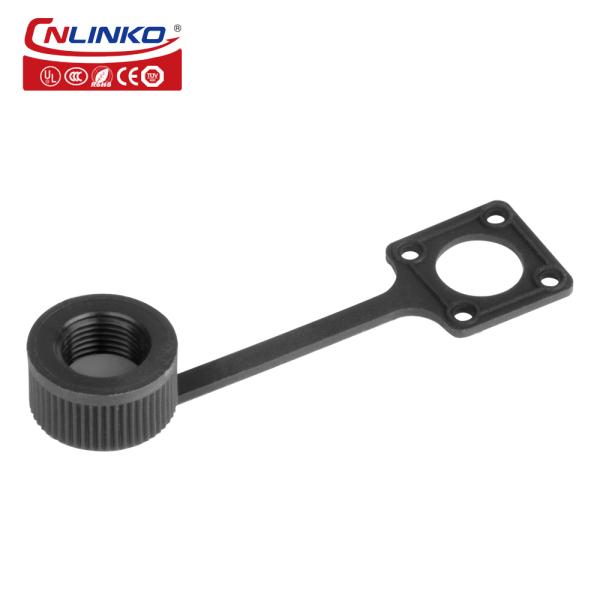

socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
