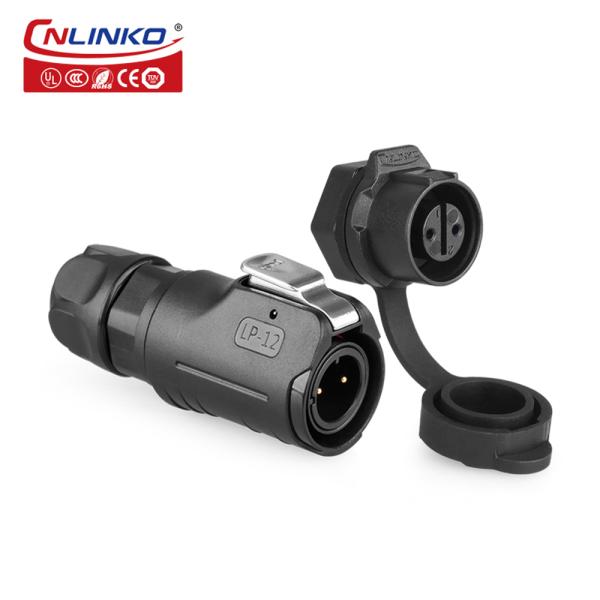

Cnlinko Connector Waterproof IP68 LED Power Cable 2 Pin M12 Docking Connector
Cnlinko Connector Waterproof IP68 LED Power Cable 2 Pin M12 Docking Connector
Cnlinko Connector Waterproof IP68 LED Power Cable 2 Pin M12 Docking Connector
Cnlinko Connector Waterproof IP68 LED Power Cable 2 Pin M12 Docking Connector
Cnlinko Connector Waterproof IP68 LED Power Cable 2 Pin M12 Docking Connector
Cnlinko Connector Waterproof IP68 LED Power Cable 2 Pin M12 Docking Connector
Cnlinko Connector Waterproof IP68 LED Power Cable 2 Pin M12 Docking Connector
Cnlinko Connector Waterproof IP68 LED Power Cable 2 Pin M12 Docking Connector
Cnlinko Connector Waterproof IP68 LED Power Cable 2 Pin M12 Docking Connector
Cnlinko Connector Waterproof IP68 LED Power Cable 2 Pin M12 Docking Connector
Cnlinko Connector Waterproof IP68 LED Power Cable 2 Pin M12 Docking Connector
Cnlinko Connector Waterproof IP68 LED Power Cable 2 Pin M12 Docking Connector
Specifications
Place of Origin :
Guangdong, China
Brand Name :
CNLINKO
Model Number :
LP-12-C02PE-02-001
MOQ :
2
Price :
$1.89-2.21
Type :
Power
Application :
Industrial, Audio & Video
Gender :
Male & Female
Material :
PBT
Current rating :
5A
Wire Gauge :
18AWG
Protection Level :
IP65/IP67
Conneting Model :
Plug/unplug
Contact Diameter/Number of Contact :
1.0x2
Operating Voltage :
250V
Temperature Rating :
-40℃-80℃
Assembly Style :
Solder/Crimp
Description

Waterproof IP68 LED power cable 2 pin M12 docking connector

Product Description

- Multi-style inner core design (2-8 cores), in line with various industrial requirements, the signal and power supply are compatible at the same time.
- Spring-pressed design, tightly docked, safe and secure.
- The orientation is strong, and blind insertion can be realized, and the humanized design in the true sense.
-3 core lock screws and solderable optional connection, fully compatible with outdoor installation work.
- Gold-plated contacts, high corrosion resistance and electrical conductivity, effectively coping with changes in temperature rise caused by current.
- Thermoplastic high temperature resistant plastic case, stable electrical performance, high strength, high temperature resistance and corrosion resistance.
- Unique docking design, solid extension of infinite line length.
-Flange 4 hole mounting, stable and impeccable, threaded single hole housing installation, suitable for circular opening industrial installation.
- The product complies with IP68 protection in the assembled state.

Cnlinko Connector Waterproof IP68 LED Power Cable 2 Pin M12 Docking ConnectorCnlinko Connector Waterproof IP68 LED Power Cable 2 Pin M12 Docking ConnectorCnlinko Connector Waterproof IP68 LED Power Cable 2 Pin M12 Docking ConnectorCnlinko Connector Waterproof IP68 LED Power Cable 2 Pin M12 Docking ConnectorCnlinko Connector Waterproof IP68 LED Power Cable 2 Pin M12 Docking ConnectorCnlinko Connector Waterproof IP68 LED Power Cable 2 Pin M12 Docking ConnectorCnlinko Connector Waterproof IP68 LED Power Cable 2 Pin M12 Docking ConnectorCnlinko Connector Waterproof IP68 LED Power Cable 2 Pin M12 Docking ConnectorCnlinko Connector Waterproof IP68 LED Power Cable 2 Pin M12 Docking ConnectorCnlinko Connector Waterproof IP68 LED Power Cable 2 Pin M12 Docking ConnectorCnlinko Connector Waterproof IP68 LED Power Cable 2 Pin M12 Docking ConnectorCnlinko Connector Waterproof IP68 LED Power Cable 2 Pin M12 Docking Connector

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP65/IP67
Cable specification 0.35~0.5mm2 /22~20AWG
Diameter range Φ3mm ~Φ6mm
Contact diameter×Qty Φ1.0x2
Current rating(A) 5A
Temperature rise /
Withstanding voltage(AC.V)1min 1500V
Contact resistance <5mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0
Material
Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance

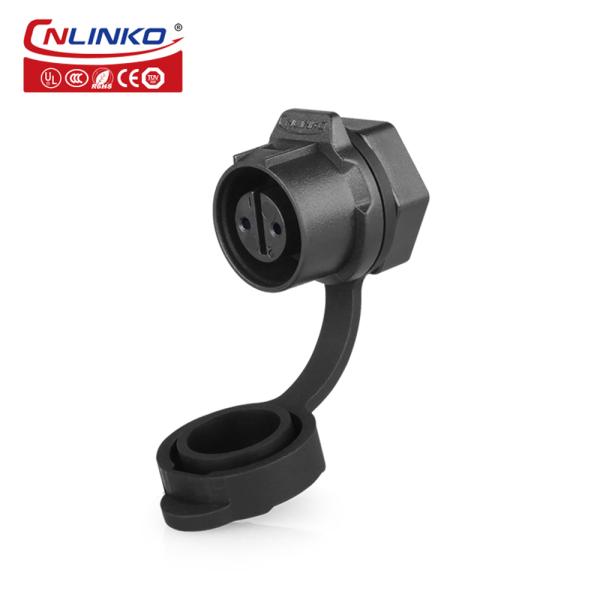

socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
Certifications
