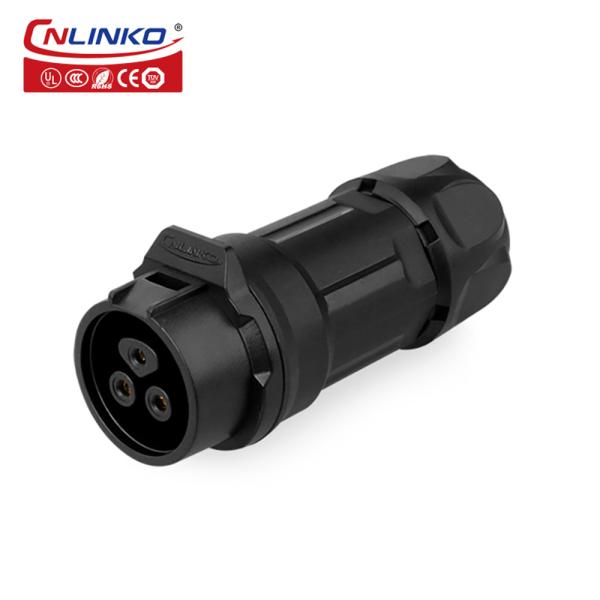

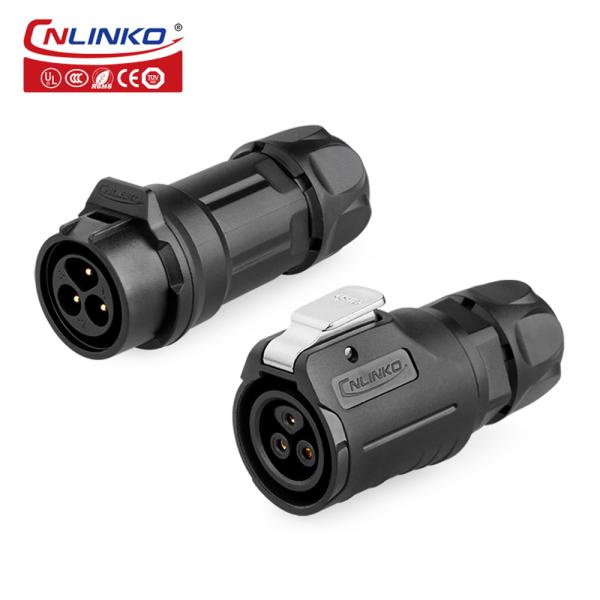

M16 3 Pin Male Female Plug Socket IP68 Standard Waterproof Wire Connector for LED Lighting
M16 3 Pin Male Female Plug Socket IP68 Standard Waterproof Wire Connector for LED Lighting
M16 3 Pin Male Female Plug Socket IP68 Standard Waterproof Wire Connector for LED Lighting
M16 3 Pin Male Female Plug Socket IP68 Standard Waterproof Wire Connector for LED Lighting
M16 3 Pin Male Female Plug Socket IP68 Standard Waterproof Wire Connector for LED Lighting
M16 3 Pin Male Female Plug Socket IP68 Standard Waterproof Wire Connector for LED Lighting
M16 3 Pin Male Female Plug Socket IP68 Standard Waterproof Wire Connector for LED Lighting
M16 3 Pin Male Female Plug Socket IP68 Standard Waterproof Wire Connector for LED Lighting
M16 3 Pin Male Female Plug Socket IP68 Standard Waterproof Wire Connector for LED Lighting
M16 3 Pin Male Female Plug Socket IP68 Standard Waterproof Wire Connector for LED Lighting
M16 3 Pin Male Female Plug Socket IP68 Standard Waterproof Wire Connector for LED Lighting
M16 3 Pin Male Female Plug Socket IP68 Standard Waterproof Wire Connector for LED Lighting
Specifications
Place of Origin :
Guangdong, China
Brand Name :
CNLINKO
Model Number :
LP-16-C03PE-01-001
MOQ :
2
Price :
$3.05-3.56
Type :
Power, Waterproof Connector
Application :
Industrial
Gender :
Male and Female
Cable Specification :
1.0mm2-1.5mm2/18-16AWG
Diameter range :
OD3-7MM
Contact diameter x number :
OD1.5*3
Rated Current :
10A
Operating voltage :
400V
Feature :
Easy Installation
Package :
Carton Box
Description

M16 3 Pin Male Female plug socket IP68 Standard Waterproof Wire Connector for LED Lighting

Features:

1: With multi-core(2-9 core) design to fit with different industrial needs.

2: Design snap lock ensures stable and security firm.

3: Humanization design achieved blind operation.

4: Both soldering and crimping are available.

5:Socket and internal made of zinc alloy,with well protected electromagnetic and radio frequency interference.

6: Gold-plating;high strength corrosion resistance and electrical conductivity.

7: Shell made of material PBT,stable electrical performance,high strength and resistance to pressure,high temperature resistance,anti-explosion,anti-corrosive.

8: Both cable connector to cable connector and cable connector to panel mounting are available.

Product Description

M16 3 Pin Male Female Plug Socket IP68 Standard Waterproof Wire Connector for LED LightingM16 3 Pin Male Female Plug Socket IP68 Standard Waterproof Wire Connector for LED LightingM16 3 Pin Male Female Plug Socket IP68 Standard Waterproof Wire Connector for LED LightingM16 3 Pin Male Female Plug Socket IP68 Standard Waterproof Wire Connector for LED LightingM16 3 Pin Male Female Plug Socket IP68 Standard Waterproof Wire Connector for LED LightingM16 3 Pin Male Female Plug Socket IP68 Standard Waterproof Wire Connector for LED LightingM16 3 Pin Male Female Plug Socket IP68 Standard Waterproof Wire Connector for LED LightingM16 3 Pin Male Female Plug Socket IP68 Standard Waterproof Wire Connector for LED LightingM16 3 Pin Male Female Plug Socket IP68 Standard Waterproof Wire Connector for LED LightingM16 3 Pin Male Female Plug Socket IP68 Standard Waterproof Wire Connector for LED LightingM16 3 Pin Male Female Plug Socket IP68 Standard Waterproof Wire Connector for LED LightingM16 3 Pin Male Female Plug Socket IP68 Standard Waterproof Wire Connector for LED LightingM16 3 Pin Male Female Plug Socket IP68 Standard Waterproof Wire Connector for LED LightingM16 3 Pin Male Female Plug Socket IP68 Standard Waterproof Wire Connector for LED LightingM16 3 Pin Male Female Plug Socket IP68 Standard Waterproof Wire Connector for LED LightingM16 3 Pin Male Female Plug Socket IP68 Standard Waterproof Wire Connector for LED Lighting

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP65/IP67
Cable specification 1.0-1.5mm2 /18-16AWG
Diameter range Φ3mm ~Φ8.5mm
Contact diameter×Qty Φ1.5×3
Current rating(A) 10A
Temperature rise

10A contact temperature below 30℃

12A contact temperature below 40℃

15A contact temperature below 50℃
Operating voltage(AC.V.rms) 400V
Withstanding voltage(AC.V)1min 2500V
Contact resistance <2.5mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0
Material
shell & Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance

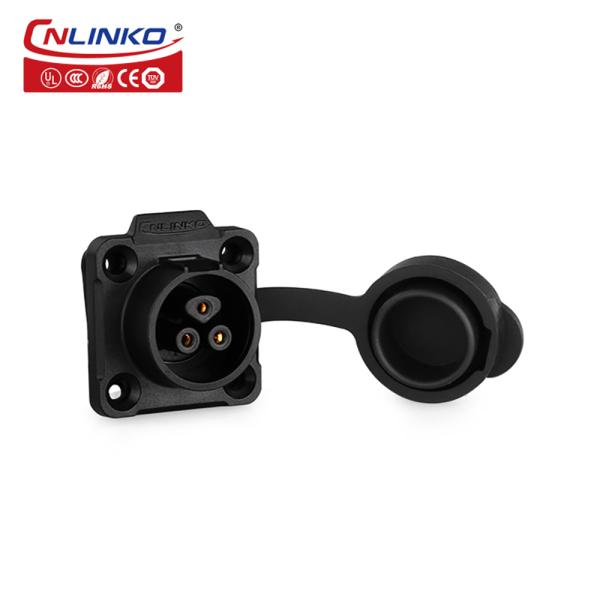

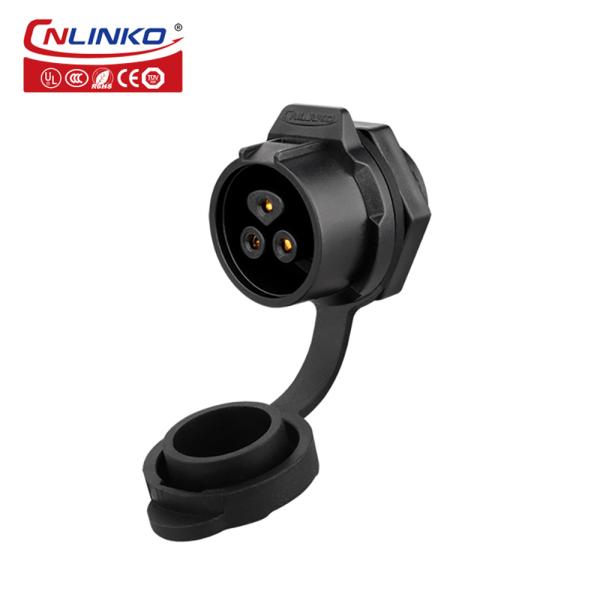

socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
