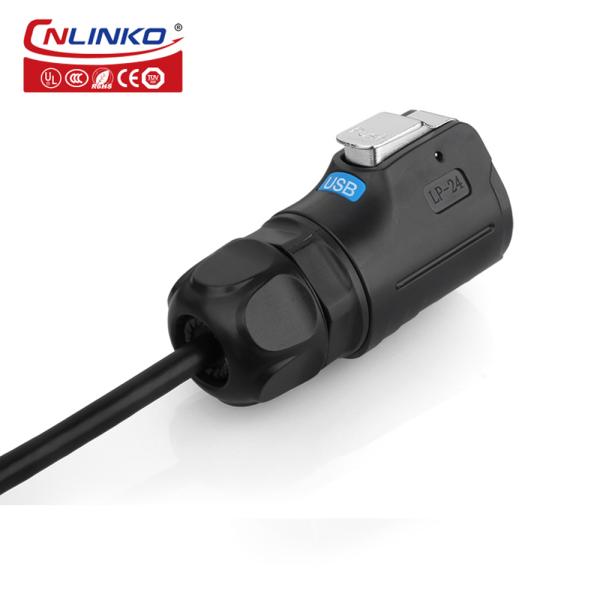

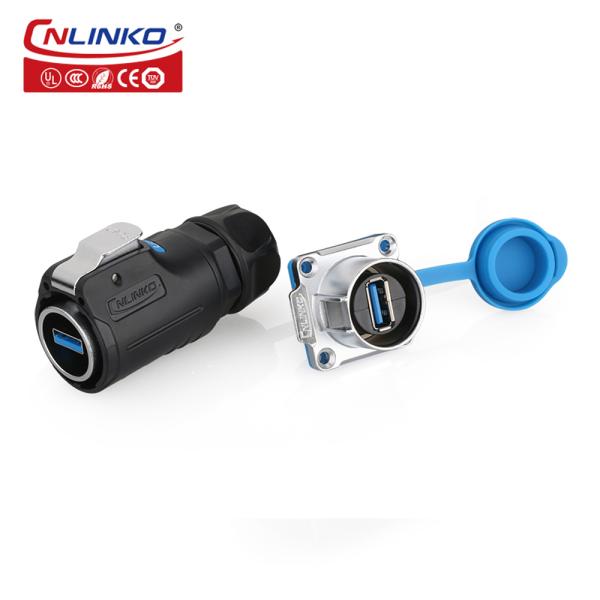

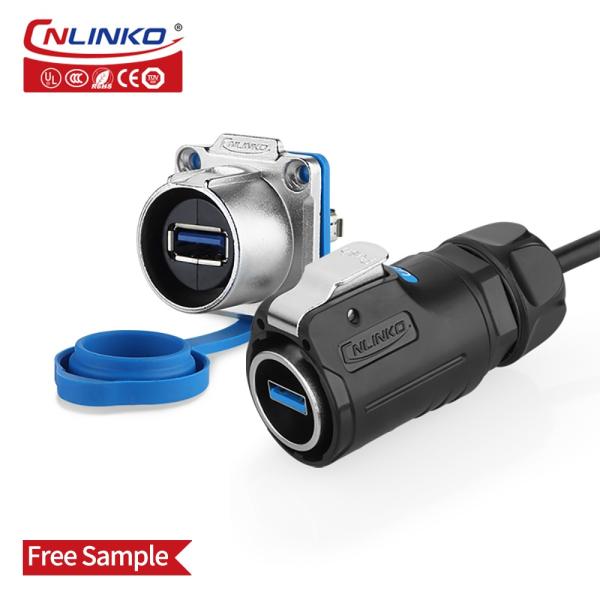

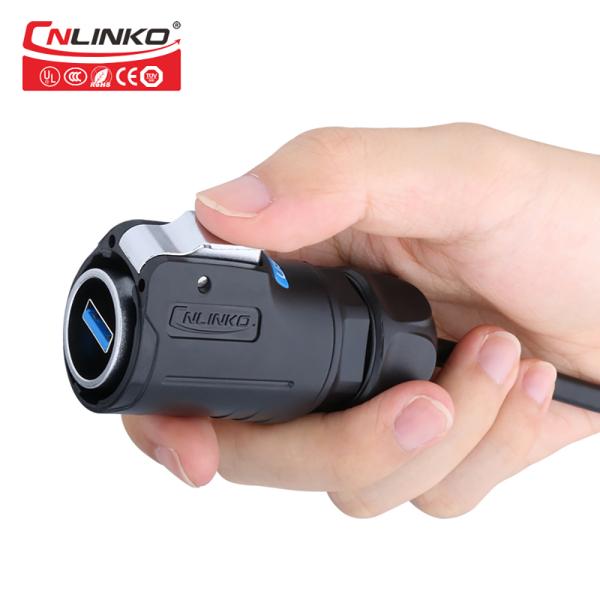

USB Plug Male Female USB3.0 Panel Mount Wall Mount Receptacle Dust Cover Waterproof IP68 LP24 Outdoor USB Connector
USB Plug Male Female USB3.0 Panel Mount Wall Mount Receptacle Dust Cover Waterproof IP68 LP24 Outdoor USB Connector
USB Plug Male Female USB3.0 Panel Mount Wall Mount Receptacle Dust Cover Waterproof IP68 LP24 Outdoor USB Connector
USB Plug Male Female USB3.0 Panel Mount Wall Mount Receptacle Dust Cover Waterproof IP68 LP24 Outdoor USB Connector
USB Plug Male Female USB3.0 Panel Mount Wall Mount Receptacle Dust Cover Waterproof IP68 LP24 Outdoor USB Connector
USB Plug Male Female USB3.0 Panel Mount Wall Mount Receptacle Dust Cover Waterproof IP68 LP24 Outdoor USB Connector
USB Plug Male Female USB3.0 Panel Mount Wall Mount Receptacle Dust Cover Waterproof IP68 LP24 Outdoor USB Connector
USB Plug Male Female USB3.0 Panel Mount Wall Mount Receptacle Dust Cover Waterproof IP68 LP24 Outdoor USB Connector
USB Plug Male Female USB3.0 Panel Mount Wall Mount Receptacle Dust Cover Waterproof IP68 LP24 Outdoor USB Connector
USB Plug Male Female USB3.0 Panel Mount Wall Mount Receptacle Dust Cover Waterproof IP68 LP24 Outdoor USB Connector
USB Plug Male Female USB3.0 Panel Mount Wall Mount Receptacle Dust Cover Waterproof IP68 LP24 Outdoor USB Connector
USB Plug Male Female USB3.0 Panel Mount Wall Mount Receptacle Dust Cover Waterproof IP68 LP24 Outdoor USB Connector
Specifications
Place of Origin :
Guangdong, China
Brand Name :
CNLINKO
Model Number :
LP24-USB3-MP-MP-0D5M-001PLUG AND SOCKET
Certification :
CUL,UL,CE,ROHS,CCC,ISO9001
MOQ :
2
Price :
$9.29-10.29
Type :
usb
Application :
Data
Gender :
Male
Produce type :
USB connector
Current rating(A) :
2.0A
Protection level :
IP67
Shell & Insulated Parts :
High Performance Engineer Plastic
Hardware Matel :
Zinc Alloy (pearl hard chromium)
Connecting mode :
Quickly insert and pull out
Assembly :
Solder
Contact pin :
Copper alloy(gold-plated)
Item :
Male Female USB Connector
Description

USB Plug Male Female USB3.0 Waterproof IP67 LP24 USB Connector

Features:

1.USB3.0 supports full duplex compatible with USB2.0
2. Use zinc alloy material, high frequency noise immunity and electromagnetic interference protection.
3. The clamping sleeve of silicone material can effectively protect the wire.
4. The product meets IP65/IP657 protection level when connected.

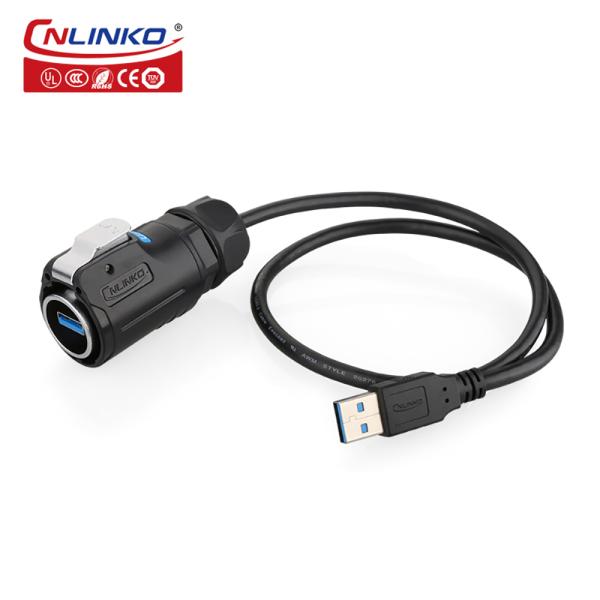

5. Plug with standard cable length 0.5M / can be extended, easy to operate.

Product Description

USB Plug Male Female USB3.0 Panel Mount Wall Mount Receptacle Dust Cover Waterproof IP68 LP24 Outdoor USB ConnectorUSB Plug Male Female USB3.0 Panel Mount Wall Mount Receptacle Dust Cover Waterproof IP68 LP24 Outdoor USB ConnectorUSB Plug Male Female USB3.0 Panel Mount Wall Mount Receptacle Dust Cover Waterproof IP68 LP24 Outdoor USB ConnectorUSB Plug Male Female USB3.0 Panel Mount Wall Mount Receptacle Dust Cover Waterproof IP68 LP24 Outdoor USB ConnectorUSB Plug Male Female USB3.0 Panel Mount Wall Mount Receptacle Dust Cover Waterproof IP68 LP24 Outdoor USB ConnectorUSB Plug Male Female USB3.0 Panel Mount Wall Mount Receptacle Dust Cover Waterproof IP68 LP24 Outdoor USB ConnectorUSB Plug Male Female USB3.0 Panel Mount Wall Mount Receptacle Dust Cover Waterproof IP68 LP24 Outdoor USB ConnectorUSB Plug Male Female USB3.0 Panel Mount Wall Mount Receptacle Dust Cover Waterproof IP68 LP24 Outdoor USB ConnectorUSB Plug Male Female USB3.0 Panel Mount Wall Mount Receptacle Dust Cover Waterproof IP68 LP24 Outdoor USB Connector

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP65/IP67
Cable specification 0.15-0.2mm2 /26-24AWG
Diameter range Φ5.5mm ~Φ7mm
Contact diameter×Qty 9PIN(3.0)&4PIN(2.0)
Current rating(A) 1.5A
Temperature rise

/
Operating voltage(AC.V.rms) /
Withstanding voltage(AC.V)1min 1000V
Contact resistance <30mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0
Material
shell & Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics

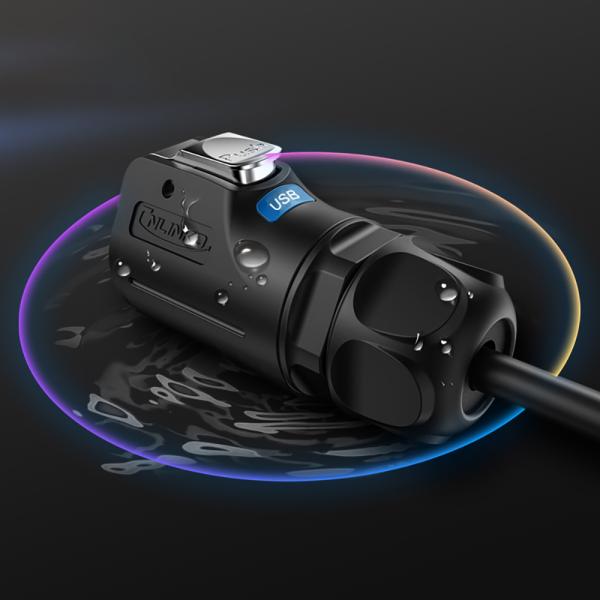

Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
