Specifications
Place of Origin :
Guangdong, China
Brand Name :
CNLINKO
Model Number :
BD24-USB3-MP-MP-0D5M-001&BD-24-J/USB3/213/SX-42-20
Certification :
CUL,UL,CE,ROHS,CCC,ISO9001
MOQ :
10
Price :
$9.60-11.20
Type :
usb
Application :
Data, Industrial Connectivity
Gender :
Male
Protect level :
IP68/IP67
Housing and insulating parts :
high-performance engineering plastics
Color :
Black
Connector type :
USB Connector
Feature :
Fast Installation
Rated Voltage :
AC 5V
Rated Current :
900mA
Package :
Carton
Description

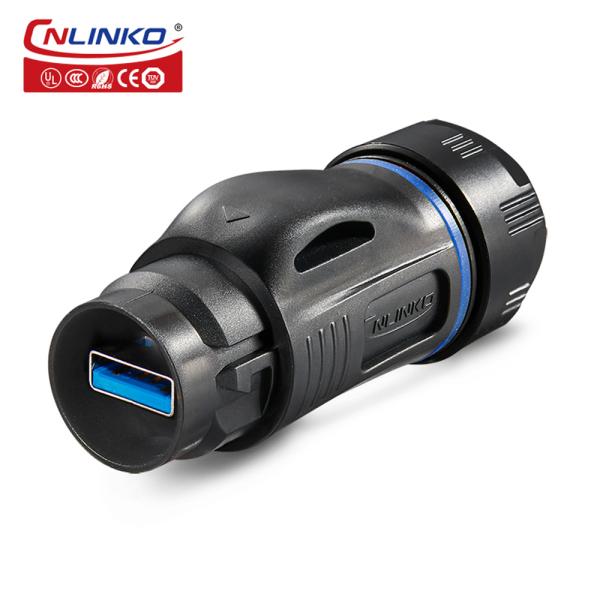

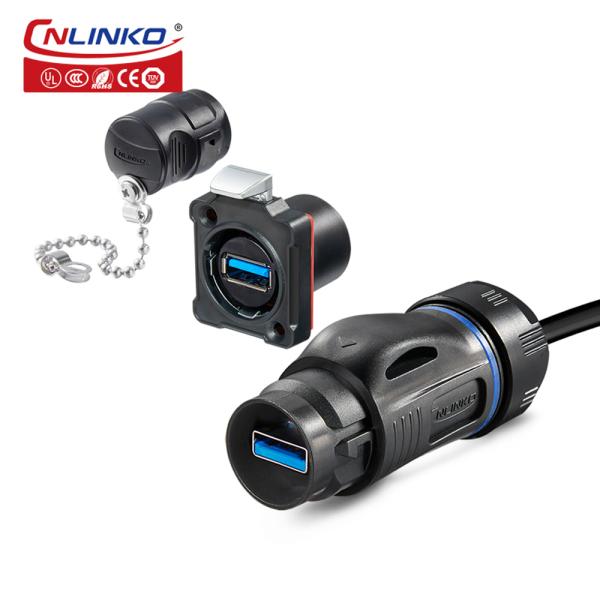

CNLINKO BD24 Plastic USB Panel Mount Connector IP67 Waterproof USB 3.0 Data Connector

Features:

1. Multi-purpose design (power, signal, data) for a wide range of application needs;
2. Fully plastic and all-metal two-component design, with strong applicability and complete electromagnetic and radio frequency interference protection;
3. Gold-plated contacts, high-strength corrosion resistance and electrical conductivity, temperature changes that can be effectively generated by current;
4. Stable electrical performance, high strength, pressure resistance, high temperature resistance, explosion resistance, corrosion resistance;
5. IP67 protection level in connection state;
6. One-piece streamlined design.

Product Description

Factory M24 Round USB Connector Plastic Waterproof Panel Mount USB ConnectorFactory M24 Round USB Connector Plastic Waterproof Panel Mount USB ConnectorFactory M24 Round USB Connector Plastic Waterproof Panel Mount USB ConnectorFactory M24 Round USB Connector Plastic Waterproof Panel Mount USB ConnectorFactory M24 Round USB Connector Plastic Waterproof Panel Mount USB ConnectorFactory M24 Round USB Connector Plastic Waterproof Panel Mount USB ConnectorFactory M24 Round USB Connector Plastic Waterproof Panel Mount USB ConnectorFactory M24 Round USB Connector Plastic Waterproof Panel Mount USB ConnectorFactory M24 Round USB Connector Plastic Waterproof Panel Mount USB ConnectorFactory M24 Round USB Connector Plastic Waterproof Panel Mount USB ConnectorFactory M24 Round USB Connector Plastic Waterproof Panel Mount USB ConnectorFactory M24 Round USB Connector Plastic Waterproof Panel Mount USB ConnectorFactory M24 Round USB Connector Plastic Waterproof Panel Mount USB ConnectorFactory M24 Round USB Connector Plastic Waterproof Panel Mount USB ConnectorFactory M24 Round USB Connector Plastic Waterproof Panel Mount USB Connector

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP65/IP67
Cable specification 0.15mm2 ~ 0.2mm2 /26~24AWG
Diameter range Φ5mm ~Φ6.5mm
Contact diameter×Qty 9PIN(3.0)&4PIN(2.0)
Current rating(A) 1.5A
Temperature rise /
Withstanding voltage(AC.V)1min 1000V
Contact resistance <30mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0
Material
Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance

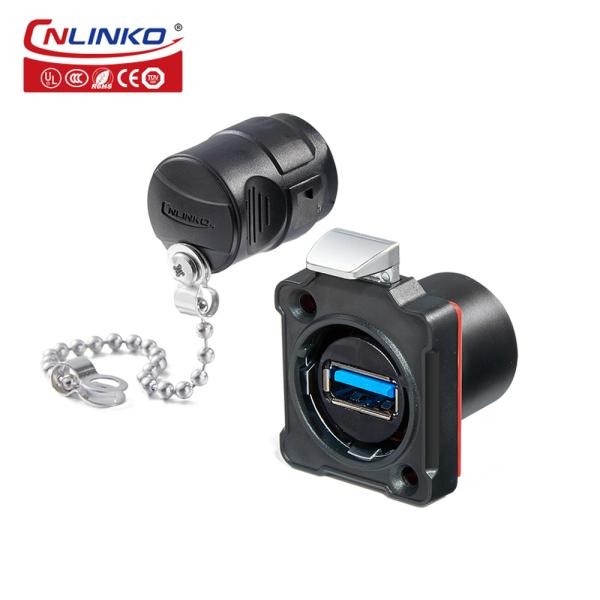

socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
