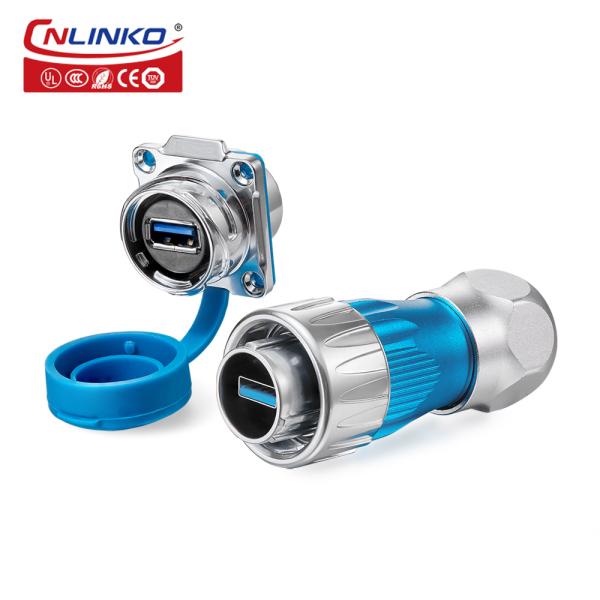

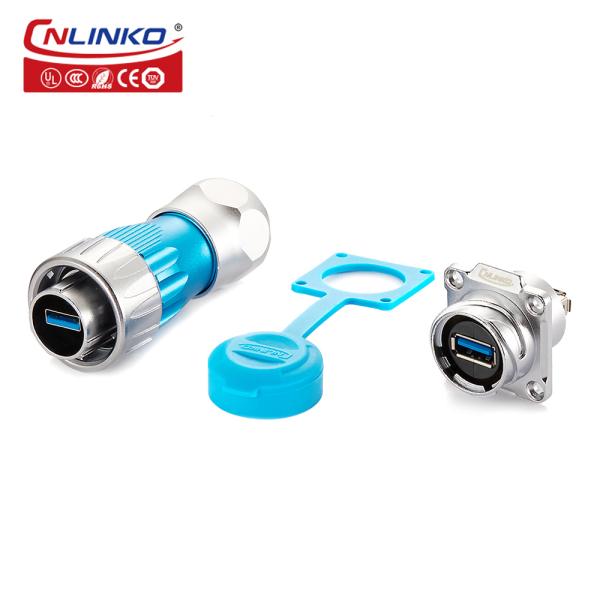

Metal Housing M24 USB 3.0 Circular Waterproof USB Connector

Specifications

Place of Origin :

Guangdong, China

Brand Name :

cnlinko

Model Number :

DH-24-USB3.0

Certification :

CE,ROHS,CCC,ISO9001

MOQ :

Price :

$12.49-14.57

Shape :

ROUND

Rated Current :

1.8A

Contact Material :

Copper Alloy

IP level :

ip68

Type :

usb

Application :

Data

Gender :

MALE/FEMALE, Female +male

Housing Material :

PBT

Product name :

USB connector

Protection level :

IP68

Current rating(A) :

1.8A

Shell & Insulated Parts :

High Performance Engineer Plastic

Hardware Matel :

Zinc Alloy (pearl hard chromium)

Connecting mode :

plug/unplug

Withstand voltage :

Description

Metal Housing M24 USB 3.0 Circular waterproof USB Connector

Features:

1.Three positioning, with wave spring knob, and the outer ring card point locking snap engaged with the socket, easy to operate with uniform intensity engaging, and keeping the current and signal transmission more stable.
2.With wave spring structure,keeping elastic wave spring stranded automatically while connection.
3.With copper needle retainer, copper welding operations and install socket separated, making the products simple and convenient operated in harsh environments .
4.With outer alloy ring, making the plug and socket more stable while closed , keeping the power supply or signal transmission more stable and comparable while connection.
5.With tail jaws , to tighten and twisted the wire more effective, improving the waterproof rating ,tensile strength , and keeping the nuts anti-back effectively.
6. Using waterproof clip coil designing, keeping the products have better waterproof rating while closed.
7.Different core designing, the products can be widely used for signal, USB, fiber optic and power plug connection.
8. Waterproof IP68/IP67 while connection.

Product Description

Specifications

Metal Housing M24 USB 3.0 Circular waterproof USB Connector

Specifications
Connecting mode	Latching Lock connect
Protection level	IP68/IP67
Cable specification	0.15mm² ~0.2mm²/26AWG-24AWG
Diameter range	Φ5.5mm ~Φ7mm
Contact diameter×Qty	9PIN(3.0)&4PIN(2.0)
Current rating(A)	1.8A
Temperature rise	/
Operating voltage(AC.V.rms)	/
Withstanding voltage(AC.V)1min	1000V
Contact resistance	<30mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Soldering
Prevent the combustion level	UL94-V0
Material
shell & Insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Contact pin	Copper alloy(gold-plated 4U)
Spring	Stainless steel
Sealing	Silica gel
Main characteristics
Sealed against dust and fluid (IP68/IP67)
Vibration resistance,impact resistance,stretching resistance

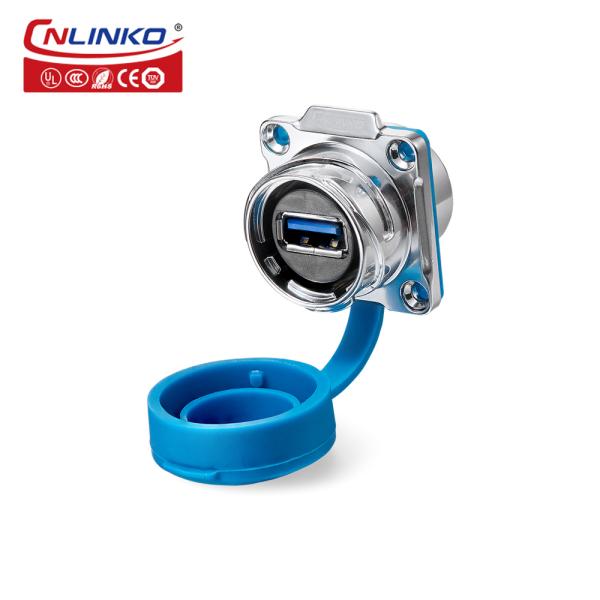

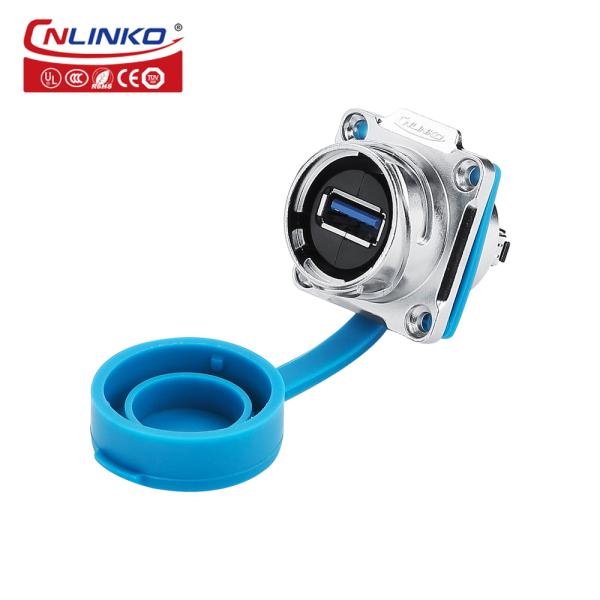

socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
