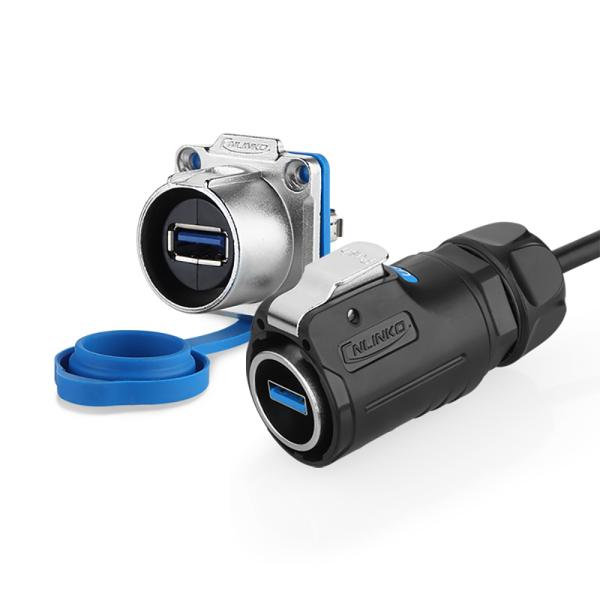

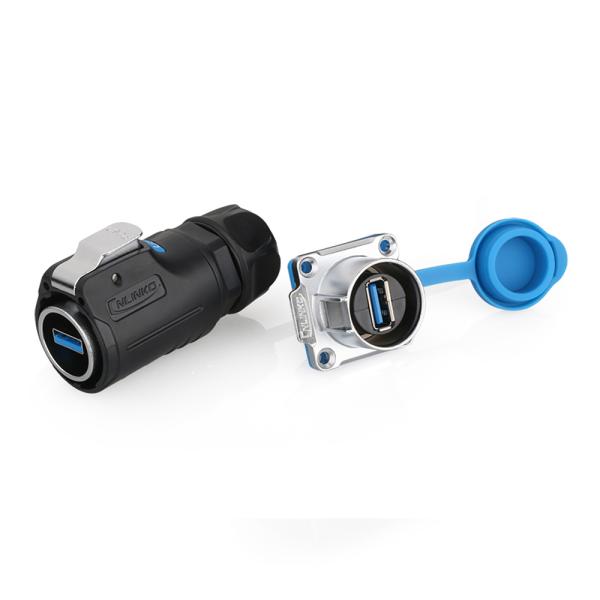

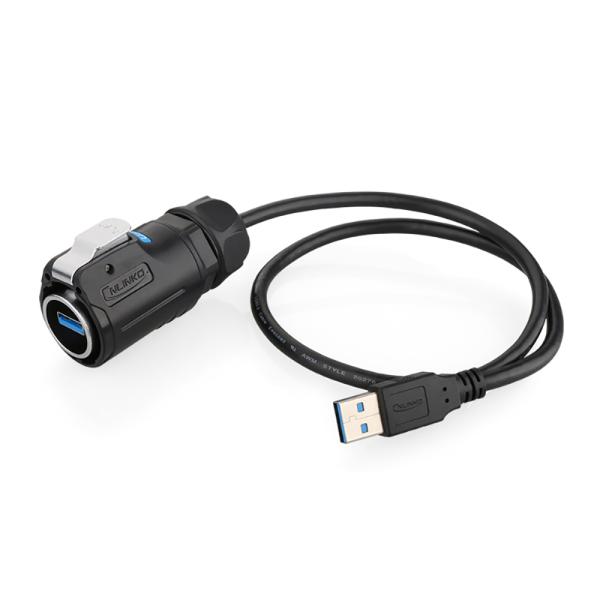

USB Plug USB3.0 Waterproof IP68 USB Male Female LP24 Connector
USB Plug USB3.0 Waterproof IP68 USB Male Female LP24 Connector
USB Plug USB3.0 Waterproof IP68 USB Male Female LP24 Connector
USB Plug USB3.0 Waterproof IP68 USB Male Female LP24 Connector
USB Plug USB3.0 Waterproof IP68 USB Male Female LP24 Connector
USB Plug USB3.0 Waterproof IP68 USB Male Female LP24 Connector
USB Plug USB3.0 Waterproof IP68 USB Male Female LP24 Connector
USB Plug USB3.0 Waterproof IP68 USB Male Female LP24 Connector
USB Plug USB3.0 Waterproof IP68 USB Male Female LP24 Connector
USB Plug USB3.0 Waterproof IP68 USB Male Female LP24 Connector
USB Plug USB3.0 Waterproof IP68 USB Male Female LP24 Connector
USB Plug USB3.0 Waterproof IP68 USB Male Female LP24 Connector
Specifications
Place of Origin :
Guangdong, China
Brand Name :
CNLINKO
Model Number :
LP-24-J\USB3\SX-43-401/LP-24-USB3-MP-MP-OD5M-001
Certification :
CUL,UL,CE,ROHS,CCC,ISO9001
MOQ :
10
Price :
$9.38-10.94
Type :
usb
Application :
Data
Gender :
Male
Produce type :
USB connector
Current rating(A) :
2.0A
Protection level :
IP67
Shell & Insulated Parts :
High Performance Engineer Plastic
Hardware Matel :
Zinc Alloy (pearl hard chromium)
Connecting mode :
Quickly insert and pull out
Assembly :
Solder
Contact pin :
Copper alloy(gold-plated)
Item :
Male Female USB Connector
Description

USB Plug Male Female USB3.0 Waterproof IP67 LP24 USB Connector

Product Description

USB Plug USB3.0 Waterproof IP68 USB Male Female LP24 ConnectorUSB Plug USB3.0 Waterproof IP68 USB Male Female LP24 ConnectorUSB Plug USB3.0 Waterproof IP68 USB Male Female LP24 ConnectorUSB Plug USB3.0 Waterproof IP68 USB Male Female LP24 ConnectorUSB Plug USB3.0 Waterproof IP68 USB Male Female LP24 ConnectorUSB Plug USB3.0 Waterproof IP68 USB Male Female LP24 ConnectorUSB Plug USB3.0 Waterproof IP68 USB Male Female LP24 ConnectorUSB Plug USB3.0 Waterproof IP68 USB Male Female LP24 ConnectorUSB Plug USB3.0 Waterproof IP68 USB Male Female LP24 Connector

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP65/IP67
Cable specification 0.15-0.2mm2 /26-24AWG
Diameter range Φ5.5mm ~Φ7mm
Contact diameter×Qty 9PIN(3.0)&4PIN(2.0)
Current rating(A) 1.5A
Temperature rise

/
Operating voltage(AC.V.rms) /
Withstanding voltage(AC.V)1min 1000V
Contact resistance <30mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0
Material
shell & Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance

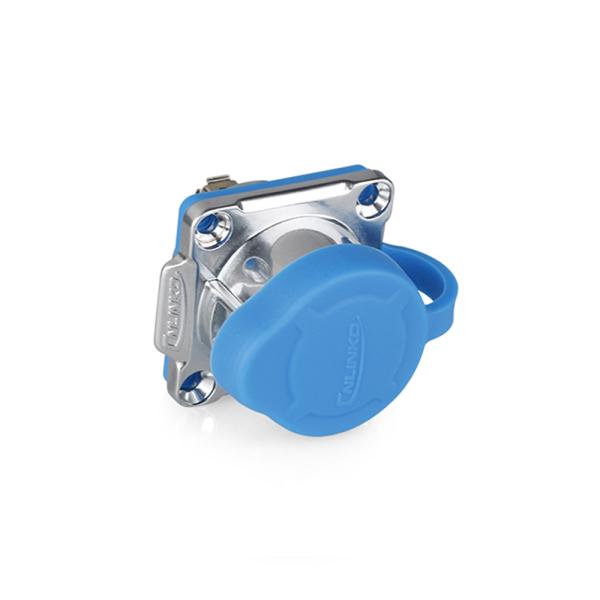

socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
