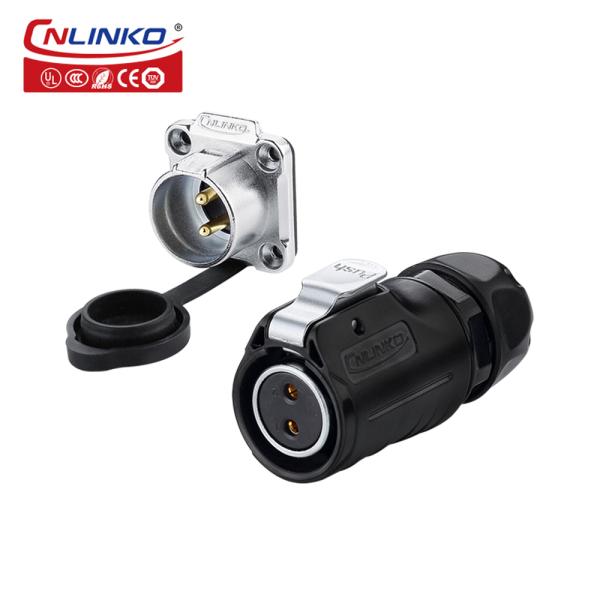

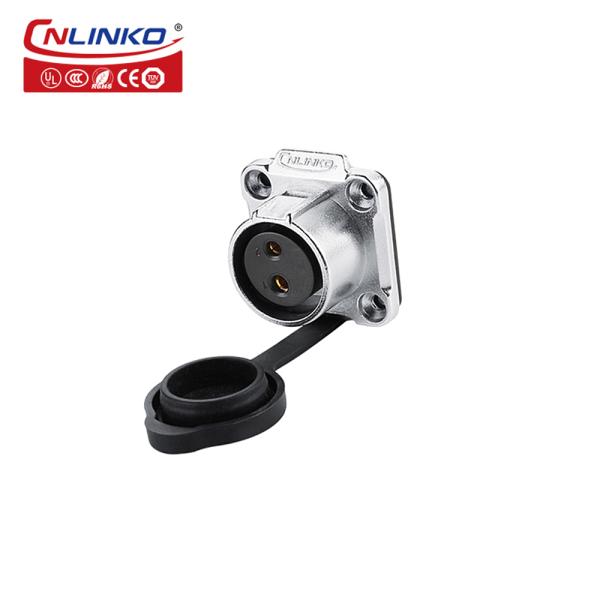

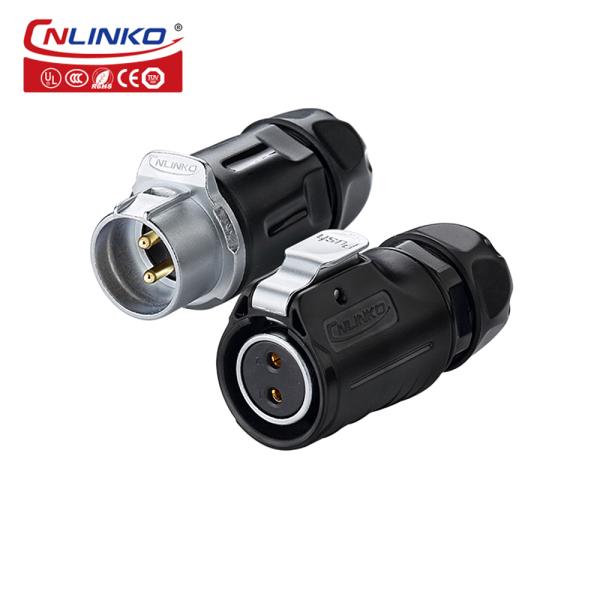

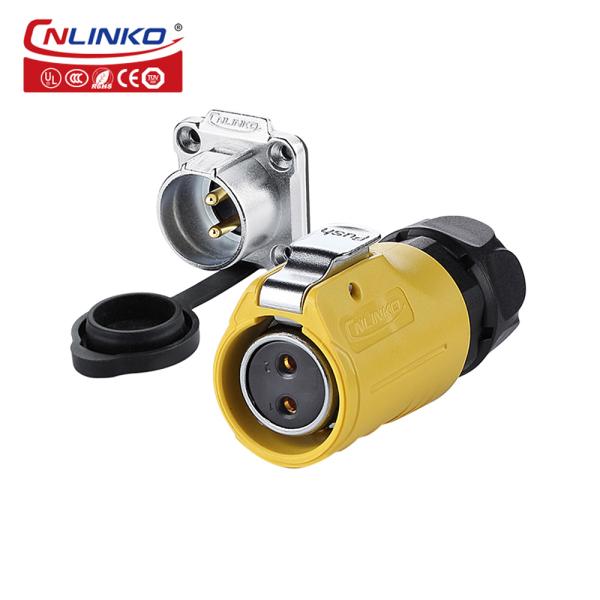

Cnlinko LP20 Series Waterproof Power Connector 2 Pin Auto Connector for Led Light
Cnlinko LP20 Series Waterproof Power Connector 2 Pin Auto Connector for Led Light
Cnlinko LP20 Series Waterproof Power Connector 2 Pin Auto Connector for Led Light
Cnlinko LP20 Series Waterproof Power Connector 2 Pin Auto Connector for Led Light
Cnlinko LP20 Series Waterproof Power Connector 2 Pin Auto Connector for Led Light
Cnlinko LP20 Series Waterproof Power Connector 2 Pin Auto Connector for Led Light
Cnlinko LP20 Series Waterproof Power Connector 2 Pin Auto Connector for Led Light
Cnlinko LP20 Series Waterproof Power Connector 2 Pin Auto Connector for Led Light
Cnlinko LP20 Series Waterproof Power Connector 2 Pin Auto Connector for Led Light
Cnlinko LP20 Series Waterproof Power Connector 2 Pin Auto Connector for Led Light
Cnlinko LP20 Series Waterproof Power Connector 2 Pin Auto Connector for Led Light
Cnlinko LP20 Series Waterproof Power Connector 2 Pin Auto Connector for Led Light
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Cnlinko
Model Number :
LP-20-C02PE-01-001
Certification :
UL,CE,ROHS,CCC,ISO9001
MOQ :
2
Price :
US$5.95-6.95
Type :
Power
Application :
Industrial
Gender :
male and female, Female +male
Protection level :
IP65/IP67
Pin :
2-12pin
Current rating(A) :
20A
Shell & Insulated Parts :
High Performance Engineer Plastic
Hardware Matel :
Zinc Alloy (pearl hard chromium)
Connecting mode :
plug/unplug
Operating voltage :
500V
Product name :
12v dc power connector
Description

Cnlinko LP20 series waterproof power connector 2 pin auto connector for led light

Features:

With multi-core design to fit with different industrial needs
Alloy metal socket is with fully electromagnetic and radio frequency interference protection
With gold-palted contact,stronger corrosion resistance and conductivity
PBT materials shell,stable electrical performance,pressure-resisting,high temperature resistance,anti-explosion,anti-corrosive

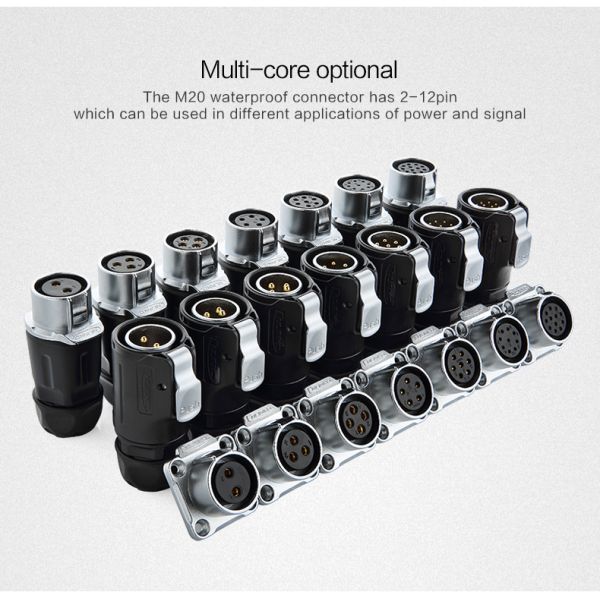

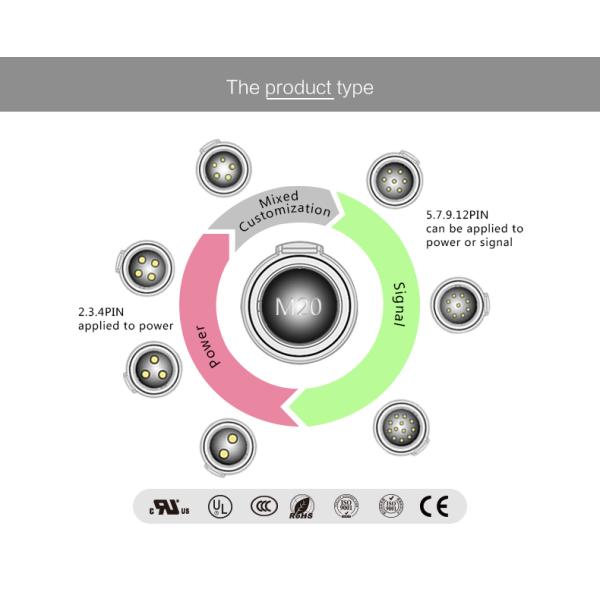

2/3/4/5/7pin for power connector,9/12 for signal connector,power and signal can be compatible match
IP67/IP68 when mated
Current rating:5A/12A/20A rms
Please indicate if you need the protection level more high

Product Description

Cnlinko LP20 Series Waterproof Power Connector 2 Pin Auto Connector for Led LightCnlinko LP20 Series Waterproof Power Connector 2 Pin Auto Connector for Led LightCnlinko LP20 Series Waterproof Power Connector 2 Pin Auto Connector for Led LightCnlinko LP20 Series Waterproof Power Connector 2 Pin Auto Connector for Led LightCnlinko LP20 Series Waterproof Power Connector 2 Pin Auto Connector for Led LightCnlinko LP20 Series Waterproof Power Connector 2 Pin Auto Connector for Led LightCnlinko LP20 Series Waterproof Power Connector 2 Pin Auto Connector for Led LightCnlinko LP20 Series Waterproof Power Connector 2 Pin Auto Connector for Led LightCnlinko LP20 Series Waterproof Power Connector 2 Pin Auto Connector for Led Light

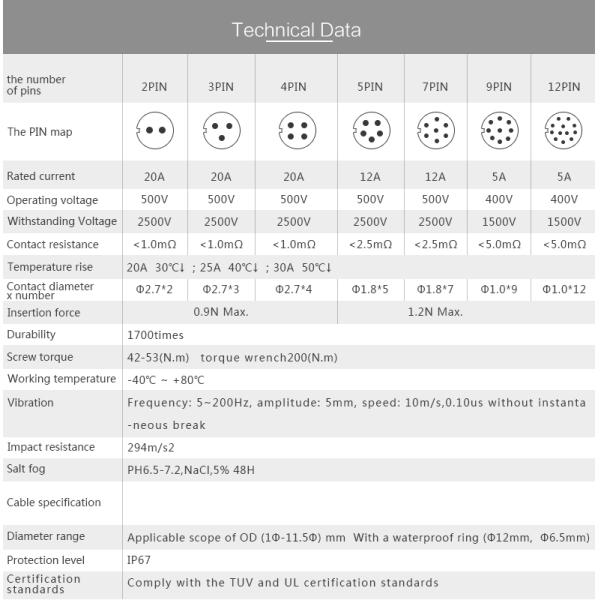

Specifications

Specifications
Connecting mode Latching Lock connect
Protection level IP65/IP67
Cable specification 2.5~4mm2 /14-12AWG

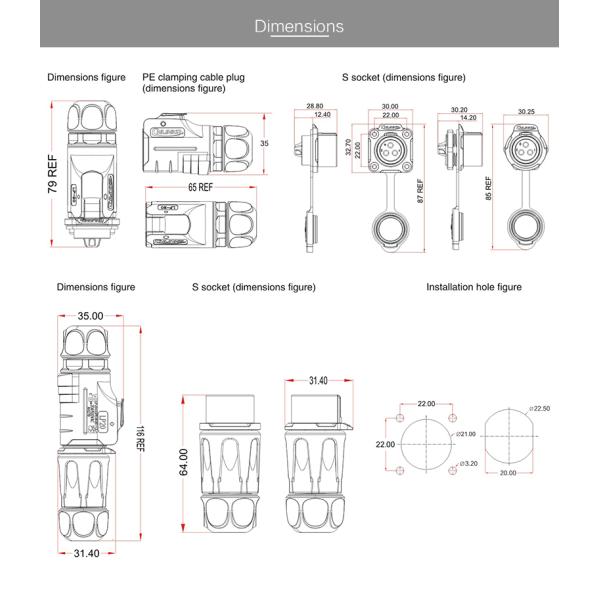

Diameter range Φ8mm ~Φ12mm
Contact diameter×Qty Φ2.7×2
Current rating(A) 20A
Temperature rise

20A contact temperature below 30℃

25A contact temperature below 40℃

30A contact temperature below 50℃
Operating voltage(AC.V.rms) 500V
Withstanding voltage(AC.V)1min 2500V
Contact resistance <1mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0

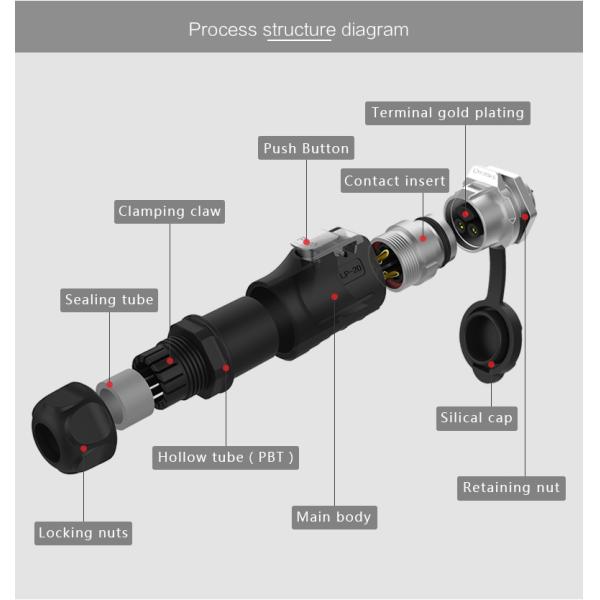

Material
shell & Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover

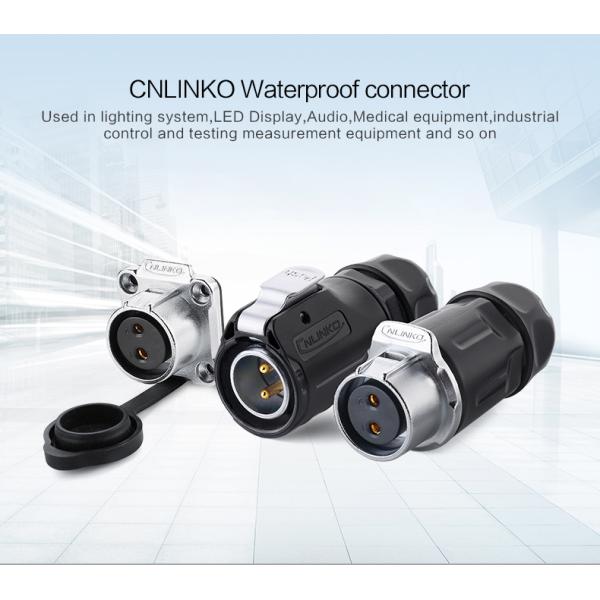

Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Certifications
