Specifications
Place of Origin :
Guangdong, China
Brand Name :
CNLINKO
Model Number :
LP-16-C03PE-01-001&LP-16-J03SX-03-401
MOQ :
10
Price :
$5.88-6.86
Shape :
ROUND
IP level :
ip68
Type :
Power, Waterproof Connector
Application :
Industrial
Gender :
Male and Female
Cable Specification :
1.0mm2-1.5mm2/18-16AWG
Diameter range :
OD3-7MM
Contact diameter x number :
OD1.5*3
Rated Current :
10A
Operating voltage :
400V
Feature :
Easy Assemble
Certificate :
CE/ISO9001/RoHS
Package :
Carton Box
Description

CNLINKO LP16 waterproof connector IP65 outdoor lighting connector 3pin power connector

Features:

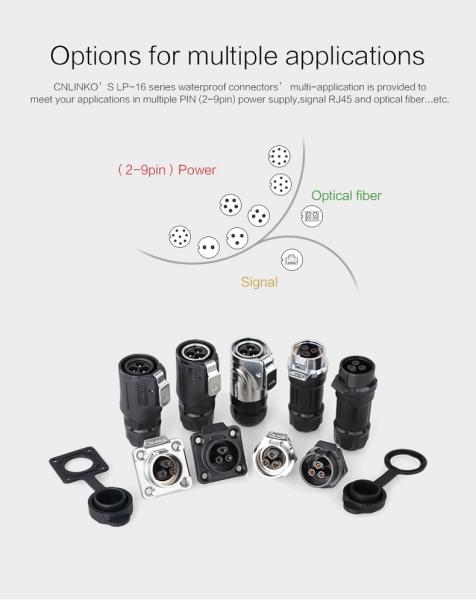

1: With multi-core(2-9 core) design to fit with different industrial needs.

2: Design snap lock ensures stable and security firm.

3: Humanization design achieved blind operation.

4: Both soldering and crimping are available.

5:Socket and internal made of zinc alloy,with well protected electromagnetic and radio frequency interference.

6: Gold-plating;high strength corrosion resistance and electrical conductivity.

7: Shell made of material PBT,stable electrical performance,high strength and resistance to pressure,high temperature resistance,anti-explosion,anti-corrosive.

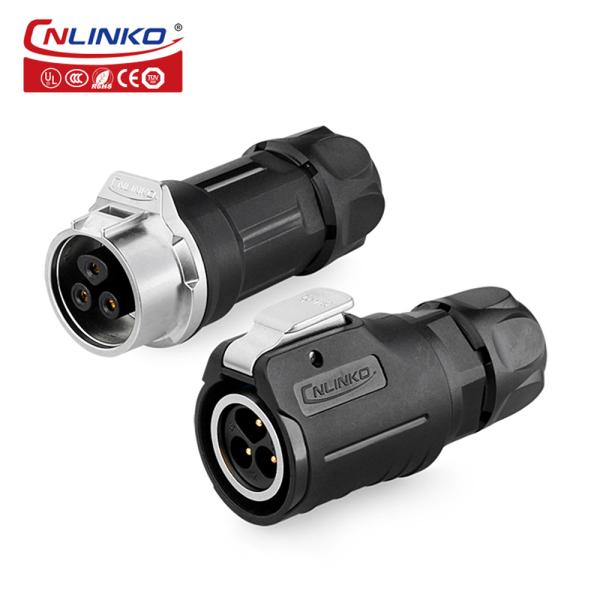

8: Both cable connector to cable connector and cable connector to panel mounting are available.

9: IP65 to IP67 when mated.

Product Description

CNLINKO LP16 Waterproof Connector IP68 Outdoor Lighting Connector 3pin Power ConnectorCNLINKO LP16 Waterproof Connector IP68 Outdoor Lighting Connector 3pin Power ConnectorCNLINKO LP16 Waterproof Connector IP68 Outdoor Lighting Connector 3pin Power ConnectorCNLINKO LP16 Waterproof Connector IP68 Outdoor Lighting Connector 3pin Power ConnectorCNLINKO LP16 Waterproof Connector IP68 Outdoor Lighting Connector 3pin Power ConnectorCNLINKO LP16 Waterproof Connector IP68 Outdoor Lighting Connector 3pin Power ConnectorCNLINKO LP16 Waterproof Connector IP68 Outdoor Lighting Connector 3pin Power ConnectorCNLINKO LP16 Waterproof Connector IP68 Outdoor Lighting Connector 3pin Power ConnectorCNLINKO LP16 Waterproof Connector IP68 Outdoor Lighting Connector 3pin Power ConnectorCNLINKO LP16 Waterproof Connector IP68 Outdoor Lighting Connector 3pin Power ConnectorCNLINKO LP16 Waterproof Connector IP68 Outdoor Lighting Connector 3pin Power ConnectorCNLINKO LP16 Waterproof Connector IP68 Outdoor Lighting Connector 3pin Power ConnectorCNLINKO LP16 Waterproof Connector IP68 Outdoor Lighting Connector 3pin Power ConnectorCNLINKO LP16 Waterproof Connector IP68 Outdoor Lighting Connector 3pin Power ConnectorCNLINKO LP16 Waterproof Connector IP68 Outdoor Lighting Connector 3pin Power ConnectorCNLINKO LP16 Waterproof Connector IP68 Outdoor Lighting Connector 3pin Power Connector

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP65/IP67
Cable specification 1.0-1.5mm2 /18-16AWG
Diameter range Φ3mm ~Φ8.5mm
Contact diameter×Qty Φ1.5×3
Current rating(A) 10A
Temperature rise

10A contact temperature below 30℃

12A contact temperature below 40℃

15A contact temperature below 50℃
Operating voltage(AC.V.rms) 400V
Withstanding voltage(AC.V)1min 2500V
Contact resistance <2.5mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0
Material
shell & Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics

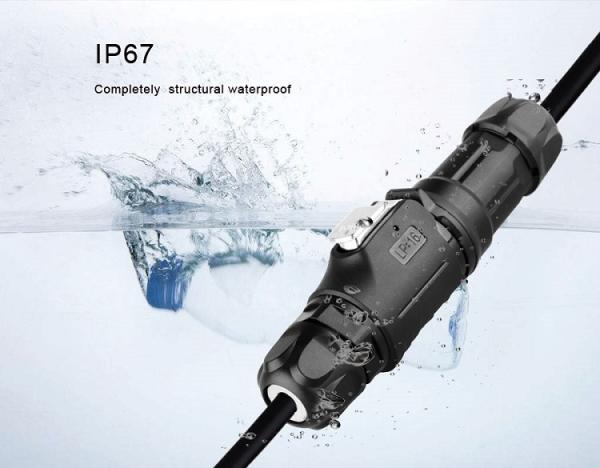

Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance

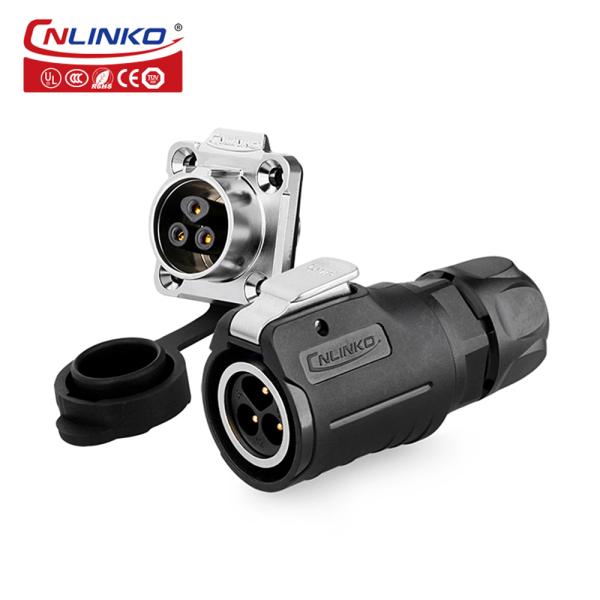

socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
