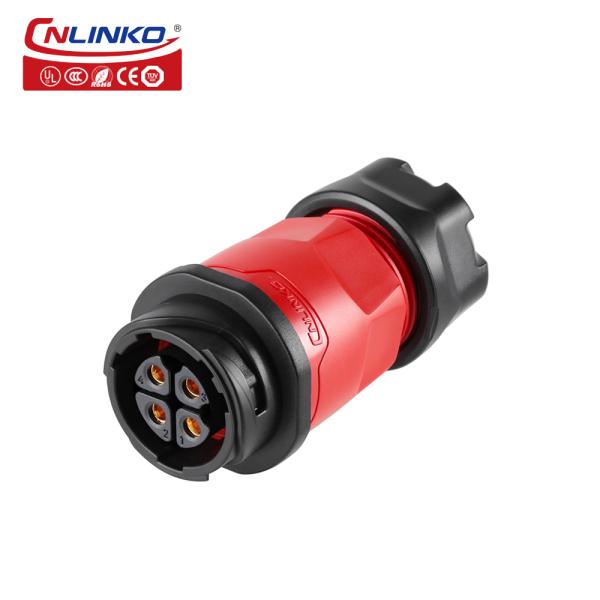

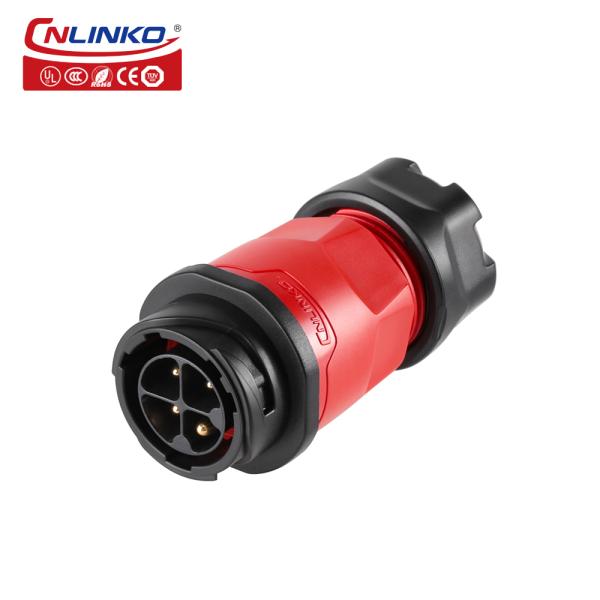

Cnlinko YM Series M20 Plastic Quick Bayonet 4 Pin Circular Power Connector with Dustproof Cover Design
Cnlinko YM Series M20 Plastic Quick Bayonet 4 Pin Circular Power Connector with Dustproof Cover Design
Cnlinko YM Series M20 Plastic Quick Bayonet 4 Pin Circular Power Connector with Dustproof Cover Design
Cnlinko YM Series M20 Plastic Quick Bayonet 4 Pin Circular Power Connector with Dustproof Cover Design
Cnlinko YM Series M20 Plastic Quick Bayonet 4 Pin Circular Power Connector with Dustproof Cover Design
Cnlinko YM Series M20 Plastic Quick Bayonet 4 Pin Circular Power Connector with Dustproof Cover Design
Cnlinko YM Series M20 Plastic Quick Bayonet 4 Pin Circular Power Connector with Dustproof Cover Design
Cnlinko YM Series M20 Plastic Quick Bayonet 4 Pin Circular Power Connector with Dustproof Cover Design
Cnlinko YM Series M20 Plastic Quick Bayonet 4 Pin Circular Power Connector with Dustproof Cover Design
Cnlinko YM Series M20 Plastic Quick Bayonet 4 Pin Circular Power Connector with Dustproof Cover Design
Cnlinko YM Series M20 Plastic Quick Bayonet 4 Pin Circular Power Connector with Dustproof Cover Design
Cnlinko YM Series M20 Plastic Quick Bayonet 4 Pin Circular Power Connector with Dustproof Cover Design
Specifications
Place of Origin :
Guangdong, China
Brand Name :
CNLINKO
Model Number :
YM-20-C04PE-02-001
Certification :
CUL,UL,CE,ROHS,CCC,ISO9001
MOQ :
2
Price :
US$6.22-7.22
Type :
Powercon
Application :
Power
Gender :
male and female
Produce type :
4 pin connector male female
Current rating(A) :
20A
Protection level :
IP68
Shell & Insulated Parts :
High Performance Engineer Plastic
Hardware Matel :
Zinc Alloy (pearl hard chromium)
Connecting mode :
plug and socket connector
Assembly :
Solder
Operating voltage :
500V
Contact pin :
Copper alloy(gold-plated)
Description

IP68 Waterproof Outdoor Electrical Connector 12V 4 pin Connector Male Female

Features:

1.Multi-core design styles(2-12 cores),in line with the diversity of industrial demand,signal and power compatible match.

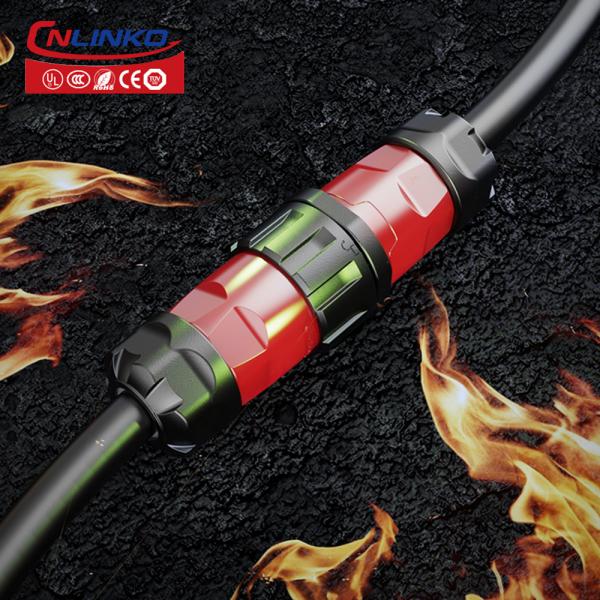

2.PBT material of the protective housing,with characters of fire safety,compression,anti-explosion and anti-deformation
3.Gold-plated contacts,high-strength corrosion resistance and electrical conductivity,effective response to temperature changes in current.
4.1/4 quick bayonet coupling,simple operation,easy installation.

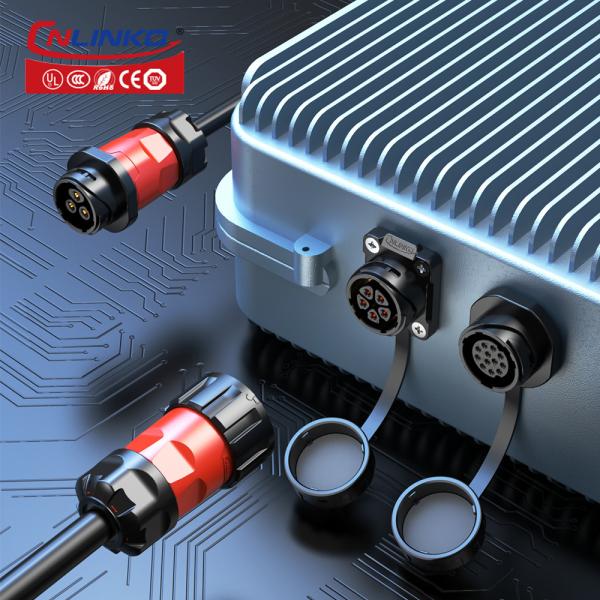

5.Dustproof cover design under off-working condition.
6. 20A rms current rating.
7. Protection level:IP68

YM series connectors,using high-end injection molding PBT material,ensuring stable performance,multi-core design of the product,while meeting the needs of a number of power and signal equipment,the central shell distinctive logo,highlighting the latest design cnlinko.

Product Description

Cnlinko YM Series M20 Plastic Quick Bayonet 4 Pin Circular Power Connector with Dustproof Cover DesignCnlinko YM Series M20 Plastic Quick Bayonet 4 Pin Circular Power Connector with Dustproof Cover DesignCnlinko YM Series M20 Plastic Quick Bayonet 4 Pin Circular Power Connector with Dustproof Cover DesignCnlinko YM Series M20 Plastic Quick Bayonet 4 Pin Circular Power Connector with Dustproof Cover DesignCnlinko YM Series M20 Plastic Quick Bayonet 4 Pin Circular Power Connector with Dustproof Cover DesignCnlinko YM Series M20 Plastic Quick Bayonet 4 Pin Circular Power Connector with Dustproof Cover DesignCnlinko YM Series M20 Plastic Quick Bayonet 4 Pin Circular Power Connector with Dustproof Cover DesignCnlinko YM Series M20 Plastic Quick Bayonet 4 Pin Circular Power Connector with Dustproof Cover DesignCnlinko YM Series M20 Plastic Quick Bayonet 4 Pin Circular Power Connector with Dustproof Cover DesignCnlinko YM Series M20 Plastic Quick Bayonet 4 Pin Circular Power Connector with Dustproof Cover DesignCnlinko YM Series M20 Plastic Quick Bayonet 4 Pin Circular Power Connector with Dustproof Cover DesignCnlinko YM Series M20 Plastic Quick Bayonet 4 Pin Circular Power Connector with Dustproof Cover DesignCnlinko YM Series M20 Plastic Quick Bayonet 4 Pin Circular Power Connector with Dustproof Cover DesignCnlinko YM Series M20 Plastic Quick Bayonet 4 Pin Circular Power Connector with Dustproof Cover Design

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP65/IP67
Cable specification 2.5~4mm2 /14-12AWG
Diameter range Φ9.0mm ~Φ13.0mm
Contact diameter×Qty Φ2.7×4
Current rating(A) 20A
Temperature rise

20A contact temperature below 30℃

25A contact temperature below 40℃

30A contact temperature below 50℃
Operating voltage(AC.V.rms) 500V
Withstanding voltage(AC.V)1min 2500V
Contact resistance <1mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0
Material
shell & Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics

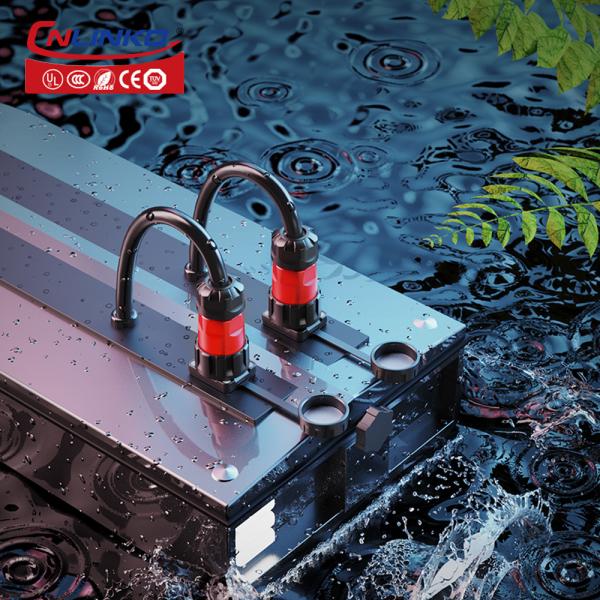

Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
