Specifications
Place of Origin :
Guangdong, China
Brand Name :
CNLINKO
Model Number :
LP-20-C03PE-01-022,LP-20-J03PP-01-001
Certification :
CUL,UL,CE,ROHS,CCC,ISO9001
MOQ :
2
Price :
$3.52-4.10
Type :
XLR
Application :
Power
Gender :
male and female
Produce type :
splice connectors
Current rating(A) :
20A
Protection level :
IP67/IP65
Shell & Insulated Parts :
High Performance Engineer Plastic
Hardware Matel :
Zinc Alloy (pearl hard chromium)
Connecting mode :
Quickly insert and pull out
Assembly :
Solder
Operating voltage :
500V
Contact pin :
Copper alloy(gold-plated)
Description

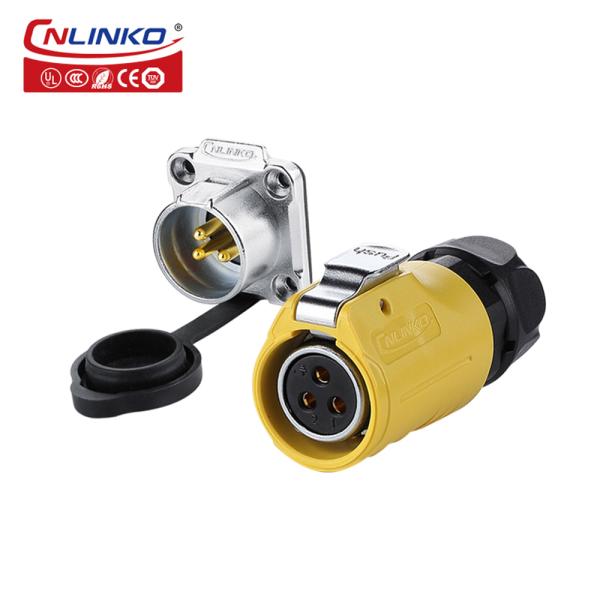

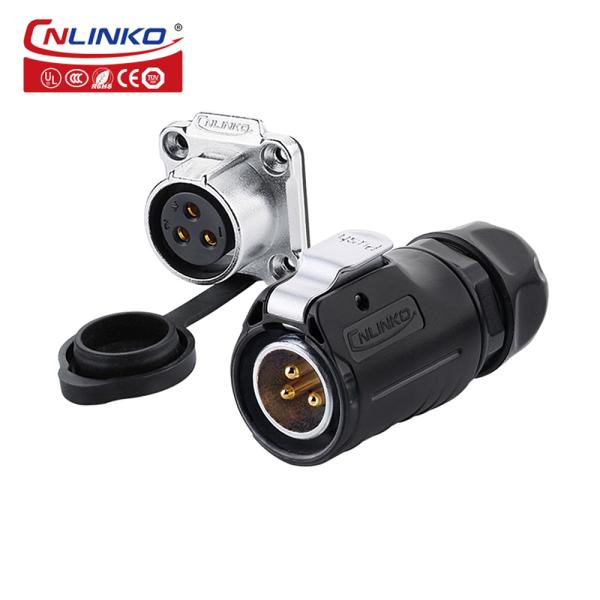

CNLINKO 3 pin male connector IP68 Waterproof M20 Female DC Power plug

Product Description

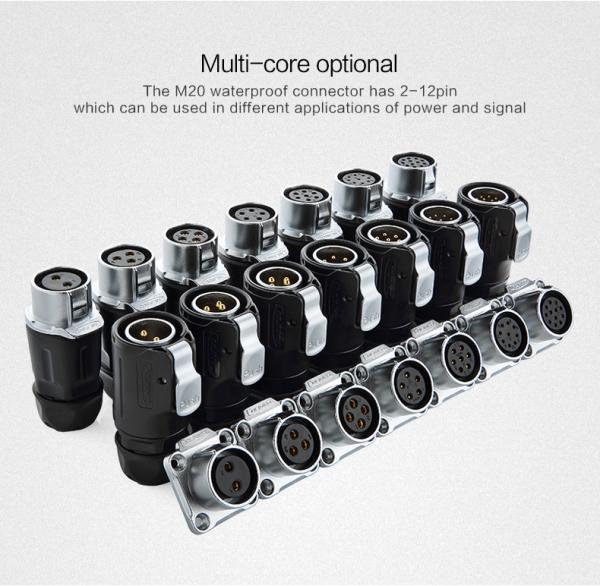

multi-pins(2-12 PINGS) for condition industrial demands

PBT shell ensure fire safety,stable, compression, anti-explosion and anti-deformation

gold-plated contact, high performance of corrosion resistance and electrical Conductivity effective deal with temperature rise.

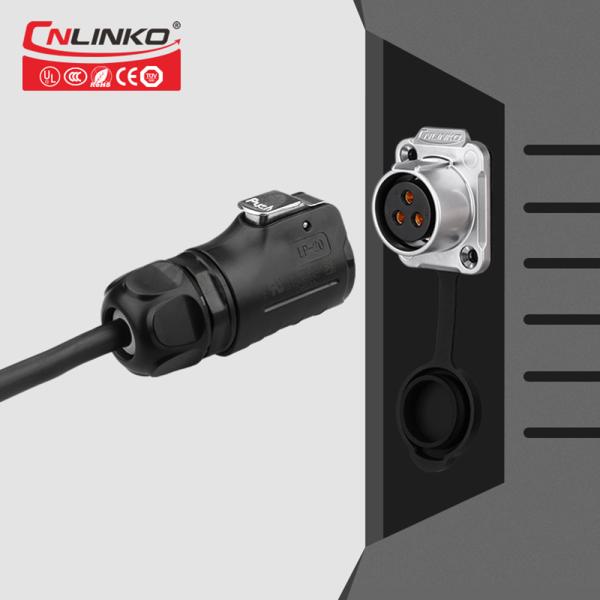

1/4 mount connector, easy operation and installation

dustproof cover design under off-working condition

rated current is 20A rms

protection level: IP65/67

CNLINKO 3 Pin Male Connector IP68 Waterproof M20 Female DC Power Plug Power Cable TypeCNLINKO 3 Pin Male Connector IP68 Waterproof M20 Female DC Power Plug Power Cable TypeCNLINKO 3 Pin Male Connector IP68 Waterproof M20 Female DC Power Plug Power Cable TypeCNLINKO 3 Pin Male Connector IP68 Waterproof M20 Female DC Power Plug Power Cable TypeCNLINKO 3 Pin Male Connector IP68 Waterproof M20 Female DC Power Plug Power Cable TypeCNLINKO 3 Pin Male Connector IP68 Waterproof M20 Female DC Power Plug Power Cable TypeCNLINKO 3 Pin Male Connector IP68 Waterproof M20 Female DC Power Plug Power Cable TypeCNLINKO 3 Pin Male Connector IP68 Waterproof M20 Female DC Power Plug Power Cable TypeCNLINKO 3 Pin Male Connector IP68 Waterproof M20 Female DC Power Plug Power Cable TypeCNLINKO 3 Pin Male Connector IP68 Waterproof M20 Female DC Power Plug Power Cable Type

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP67
Cable specification 2.5mm2 ~ 4mm2 /14~12AWG
Diameter range Φ8mm ~Φ12mm
Contact diameter×Qty Φ2.7×3
Current rating(A) 20A
Operating voltage(AC.V.rms) 500V
Withstand voltage(AC.V)1min 2500V
Contact resistance <1mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Solder
Prevent the combustion level UL94-V0
Material
Shell&insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated)
Spring Stainless steel
Sealing Silica gel

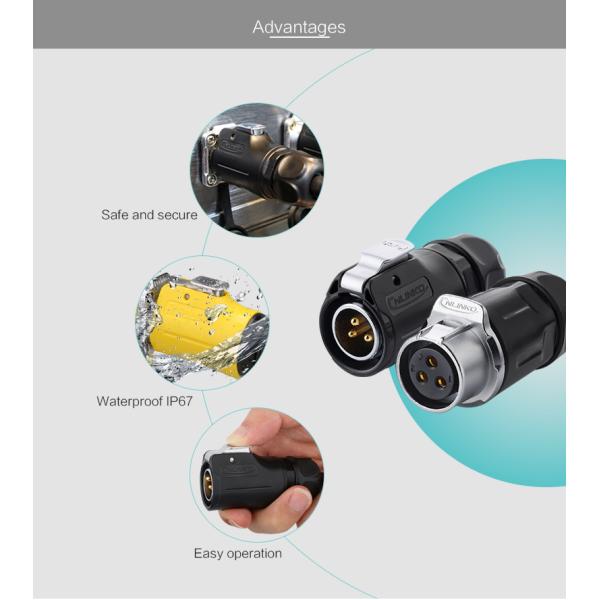

Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Certifications
