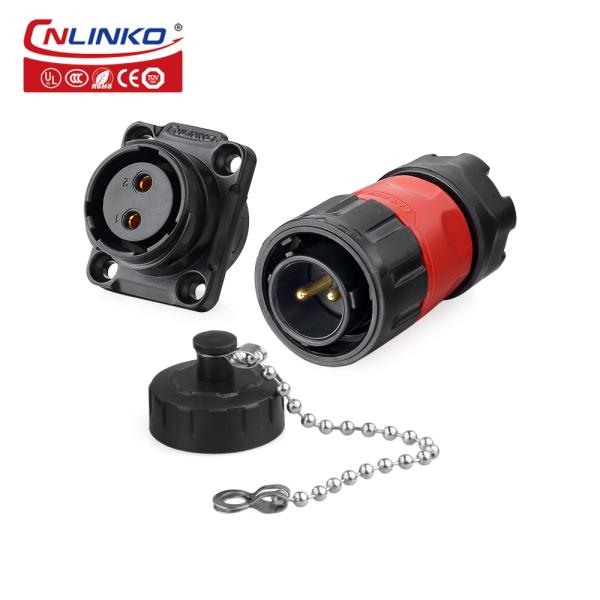

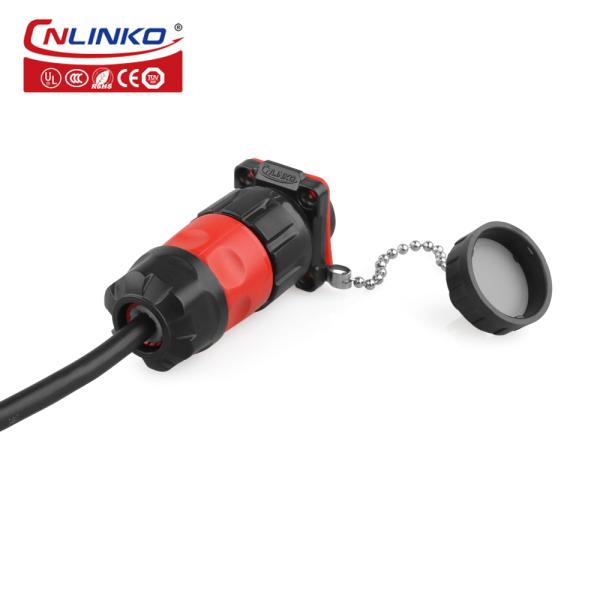

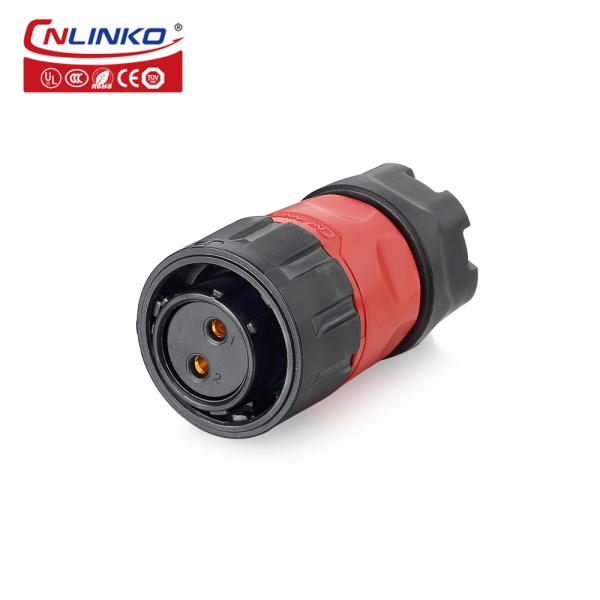

CNLINKO Waterproof Connector 2 Pin Power Cable Circular Plug Socket for Led Outdoor Connector
CNLINKO Waterproof Connector 2 Pin Power Cable Circular Plug Socket for Led Outdoor Connector
CNLINKO Waterproof Connector 2 Pin Power Cable Circular Plug Socket for Led Outdoor Connector
CNLINKO Waterproof Connector 2 Pin Power Cable Circular Plug Socket for Led Outdoor Connector
CNLINKO Waterproof Connector 2 Pin Power Cable Circular Plug Socket for Led Outdoor Connector
CNLINKO Waterproof Connector 2 Pin Power Cable Circular Plug Socket for Led Outdoor Connector
CNLINKO Waterproof Connector 2 Pin Power Cable Circular Plug Socket for Led Outdoor Connector
CNLINKO Waterproof Connector 2 Pin Power Cable Circular Plug Socket for Led Outdoor Connector
CNLINKO Waterproof Connector 2 Pin Power Cable Circular Plug Socket for Led Outdoor Connector
CNLINKO Waterproof Connector 2 Pin Power Cable Circular Plug Socket for Led Outdoor Connector
CNLINKO Waterproof Connector 2 Pin Power Cable Circular Plug Socket for Led Outdoor Connector
CNLINKO Waterproof Connector 2 Pin Power Cable Circular Plug Socket for Led Outdoor Connector
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Cnlinko
Model Number :
YM-20-C02PE-02-001
Certification :
CE,ROHS,CCC,ISO9001
MOQ :
2
Price :
$2.57-3
Type :
Powercon
Application :
Power
Gender :
male and female, Female +male
Protection level :
IP68
Pin :
2-12pin
Current rating(A) :
20A
Shell & Insulated Parts :
High Performance Engineer Plastic
Hardware Matel :
Zinc Alloy (pearl hard chromium)
Connecting mode :
plug/unplug
Operating voltage :
500V
Withstanding voltage :
2500V
Description

Product Description

CNLINKO Waterproof Connector 2 Pin Power Cable Circular Plug Socket for Led Outdoor ConnectorCNLINKO Waterproof Connector 2 Pin Power Cable Circular Plug Socket for Led Outdoor ConnectorCNLINKO Waterproof Connector 2 Pin Power Cable Circular Plug Socket for Led Outdoor ConnectorCNLINKO Waterproof Connector 2 Pin Power Cable Circular Plug Socket for Led Outdoor ConnectorCNLINKO Waterproof Connector 2 Pin Power Cable Circular Plug Socket for Led Outdoor ConnectorCNLINKO Waterproof Connector 2 Pin Power Cable Circular Plug Socket for Led Outdoor ConnectorCNLINKO Waterproof Connector 2 Pin Power Cable Circular Plug Socket for Led Outdoor ConnectorCNLINKO Waterproof Connector 2 Pin Power Cable Circular Plug Socket for Led Outdoor ConnectorCNLINKO Waterproof Connector 2 Pin Power Cable Circular Plug Socket for Led Outdoor ConnectorCNLINKO Waterproof Connector 2 Pin Power Cable Circular Plug Socket for Led Outdoor ConnectorCNLINKO Waterproof Connector 2 Pin Power Cable Circular Plug Socket for Led Outdoor ConnectorCNLINKO Waterproof Connector 2 Pin Power Cable Circular Plug Socket for Led Outdoor ConnectorCNLINKO Waterproof Connector 2 Pin Power Cable Circular Plug Socket for Led Outdoor ConnectorCNLINKO Waterproof Connector 2 Pin Power Cable Circular Plug Socket for Led Outdoor Connector

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP65/IP67
Cable specification 2.5~4mm2 /14-12AWG
Diameter range Φ9.0mm ~Φ13.0mm
Contact diameter×Qty Φ2.7×2
Current rating(A) 20A
Temperature rise

20A contact temperature below 30℃

25A contact temperature below 40℃

30A contact temperature below 50℃
Operating voltage(AC.V.rms) 500V
Withstanding voltage(AC.V)1min 2500V
Contact resistance <1mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0
Material
shell & Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery




Certifications
