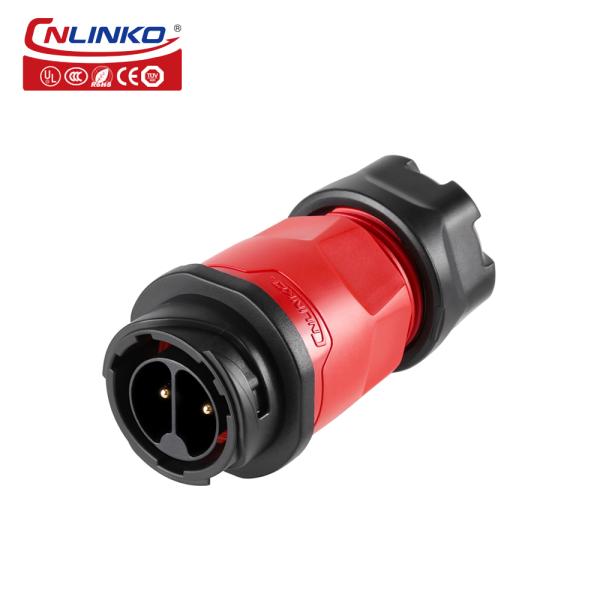

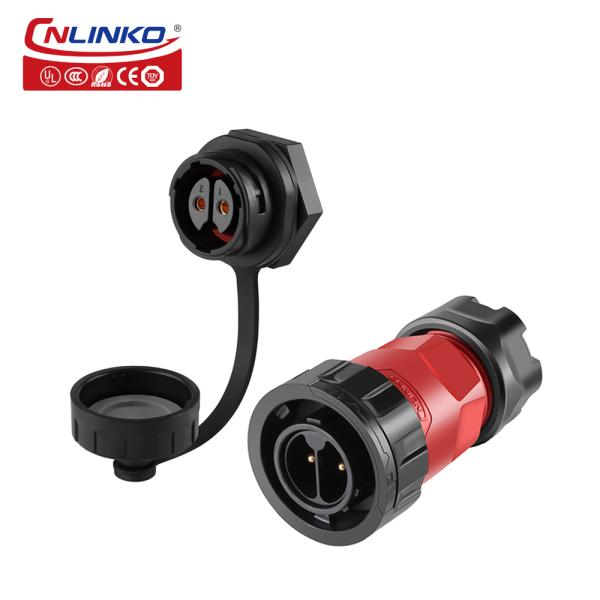

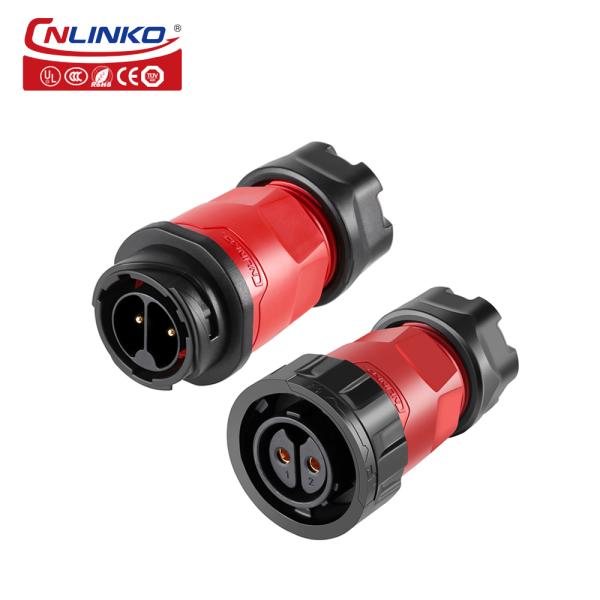

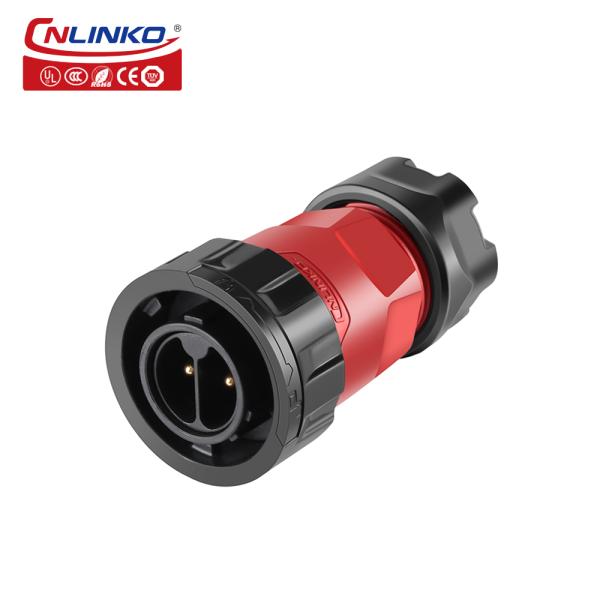

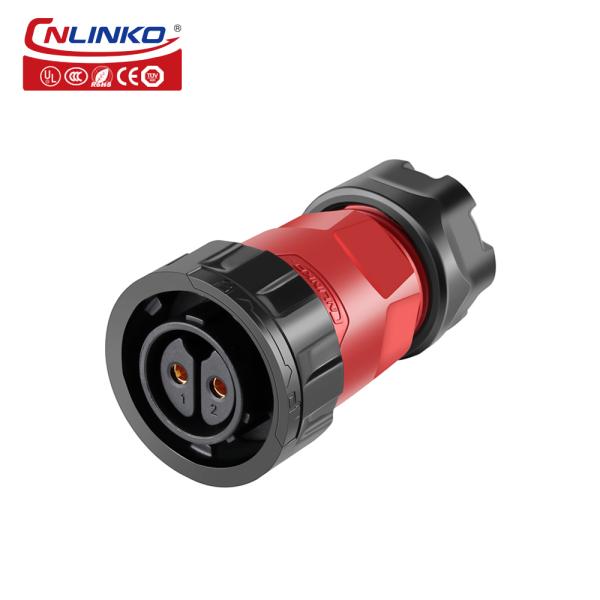

Cnlinko Connector 2 Pin Connector IP68 DC Plug 24V Led 2 Pin Waterproof Connector Plug Cable Socket
Cnlinko Connector 2 Pin Connector IP68 DC Plug 24V Led 2 Pin Waterproof Connector Plug Cable Socket
Cnlinko Connector 2 Pin Connector IP68 DC Plug 24V Led 2 Pin Waterproof Connector Plug Cable Socket
Cnlinko Connector 2 Pin Connector IP68 DC Plug 24V Led 2 Pin Waterproof Connector Plug Cable Socket
Cnlinko Connector 2 Pin Connector IP68 DC Plug 24V Led 2 Pin Waterproof Connector Plug Cable Socket
Cnlinko Connector 2 Pin Connector IP68 DC Plug 24V Led 2 Pin Waterproof Connector Plug Cable Socket
Cnlinko Connector 2 Pin Connector IP68 DC Plug 24V Led 2 Pin Waterproof Connector Plug Cable Socket
Cnlinko Connector 2 Pin Connector IP68 DC Plug 24V Led 2 Pin Waterproof Connector Plug Cable Socket
Cnlinko Connector 2 Pin Connector IP68 DC Plug 24V Led 2 Pin Waterproof Connector Plug Cable Socket
Cnlinko Connector 2 Pin Connector IP68 DC Plug 24V Led 2 Pin Waterproof Connector Plug Cable Socket
Cnlinko Connector 2 Pin Connector IP68 DC Plug 24V Led 2 Pin Waterproof Connector Plug Cable Socket
Cnlinko Connector 2 Pin Connector IP68 DC Plug 24V Led 2 Pin Waterproof Connector Plug Cable Socket
Specifications
Place of Origin :
Guangdong, China
Brand Name :
CNLINKO
Model Number :
YM-20-C02PE-02-001
Certification :
CUL,UL,CE,ROHS,CCC,ISO9001
MOQ :
2
Price :
US$2.57-3
Type :
Powercon
Application :
Power
Gender :
Male
Produce type :
plug and socket
Current rating(A) :
20A
Protection level :
IP67/IP65
Shell & Insulated Parts :
High Performance Engineer Plastic
Hardware Matel :
Zinc Alloy (pearl hard chromium)
Connecting mode :
plug and socket connector
Assembly :
Solder quick screw connector
Operating voltage :
500V
Contact pin :
Copper alloy(gold-plated)
Description

Product Description

Cnlinko Connector 2 Pin Connector IP68 DC Plug 24V Led 2 Pin Waterproof Connector Plug Cable SocketCnlinko Connector 2 Pin Connector IP68 DC Plug 24V Led 2 Pin Waterproof Connector Plug Cable SocketCnlinko Connector 2 Pin Connector IP68 DC Plug 24V Led 2 Pin Waterproof Connector Plug Cable SocketCnlinko Connector 2 Pin Connector IP68 DC Plug 24V Led 2 Pin Waterproof Connector Plug Cable SocketCnlinko Connector 2 Pin Connector IP68 DC Plug 24V Led 2 Pin Waterproof Connector Plug Cable SocketCnlinko Connector 2 Pin Connector IP68 DC Plug 24V Led 2 Pin Waterproof Connector Plug Cable SocketCnlinko Connector 2 Pin Connector IP68 DC Plug 24V Led 2 Pin Waterproof Connector Plug Cable SocketCnlinko Connector 2 Pin Connector IP68 DC Plug 24V Led 2 Pin Waterproof Connector Plug Cable SocketCnlinko Connector 2 Pin Connector IP68 DC Plug 24V Led 2 Pin Waterproof Connector Plug Cable SocketCnlinko Connector 2 Pin Connector IP68 DC Plug 24V Led 2 Pin Waterproof Connector Plug Cable SocketCnlinko Connector 2 Pin Connector IP68 DC Plug 24V Led 2 Pin Waterproof Connector Plug Cable SocketCnlinko Connector 2 Pin Connector IP68 DC Plug 24V Led 2 Pin Waterproof Connector Plug Cable SocketCnlinko Connector 2 Pin Connector IP68 DC Plug 24V Led 2 Pin Waterproof Connector Plug Cable SocketCnlinko Connector 2 Pin Connector IP68 DC Plug 24V Led 2 Pin Waterproof Connector Plug Cable Socket

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP65/IP67
Cable specification 2.5~4mm2 /14-12AWG
Diameter range Φ9.0mm ~Φ13.0mm
Contact diameter×Qty Φ2.7×2
Current rating(A) 20A
Temperature rise

20A contact temperature below 30℃

25A contact temperature below 40℃

30A contact temperature below 50℃
Operating voltage(AC.V.rms) 500V
Withstanding voltage(AC.V)1min 2500V
Contact resistance <1mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0
Material
shell & Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
