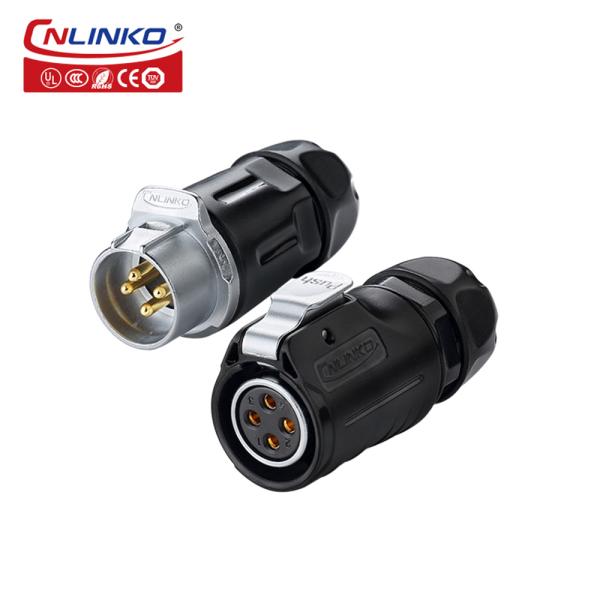

Cnlinko 500V 20A IP68 Connector Waterproof 4 Pin with Solder Connection Wire Waterproof Plug Connector
Cnlinko 500V 20A IP68 Connector Waterproof 4 Pin with Solder Connection Wire Waterproof Plug Connector
Cnlinko 500V 20A IP68 Connector Waterproof 4 Pin with Solder Connection Wire Waterproof Plug Connector
Cnlinko 500V 20A IP68 Connector Waterproof 4 Pin with Solder Connection Wire Waterproof Plug Connector
Cnlinko 500V 20A IP68 Connector Waterproof 4 Pin with Solder Connection Wire Waterproof Plug Connector
Cnlinko 500V 20A IP68 Connector Waterproof 4 Pin with Solder Connection Wire Waterproof Plug Connector
Cnlinko 500V 20A IP68 Connector Waterproof 4 Pin with Solder Connection Wire Waterproof Plug Connector
Cnlinko 500V 20A IP68 Connector Waterproof 4 Pin with Solder Connection Wire Waterproof Plug Connector
Cnlinko 500V 20A IP68 Connector Waterproof 4 Pin with Solder Connection Wire Waterproof Plug Connector
Cnlinko 500V 20A IP68 Connector Waterproof 4 Pin with Solder Connection Wire Waterproof Plug Connector
Cnlinko 500V 20A IP68 Connector Waterproof 4 Pin with Solder Connection Wire Waterproof Plug Connector
Cnlinko 500V 20A IP68 Connector Waterproof 4 Pin with Solder Connection Wire Waterproof Plug Connector
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Cnlinko
Model Number :
LP-20-C04PE-01-022
Certification :
UL,CE,ROHS,ISO9001
MOQ :
2
Price :
$3.74-4.36
Type :
Power
Application :
Industrial, Power
Gender :
male and female, Female +male
Protection level :
IP68
Pin :
4pin
Current rating(A) :
20A
Shell & Insulated Parts :
High Performance Engineer Plastic
Hardware Matel :
Zinc Alloy (pearl hard chromium)
Connecting mode :
plug/unplug
Operating voltage :
500V
Description

500V 20A IP68 waterproof 4 Pin Power Connector with Solder Connection wire

Features:

With multi-core design to fit with different industrial needs
Alloy metal socket is with fully electromagnetic and radio frequency interference protection
With gold-palted contact,stronger corrosion resistance and conductivity
PBT materials shell,stable electrical performance,pressure-resisting,high temperature resistance,anti-explosion,anti-corrosive
2/3/4/5/7pin for power connector,9/12 for signal connector,power and signal can be compatible match
IP68 when mated
Current rating:5A/12A/20A rms
Please indicate if you need the protection level more high

Product Description

Cnlinko 500V 20A IP68 Connector Waterproof 4 Pin with Solder Connection Wire Waterproof Plug ConnectorCnlinko 500V 20A IP68 Connector Waterproof 4 Pin with Solder Connection Wire Waterproof Plug ConnectorCnlinko 500V 20A IP68 Connector Waterproof 4 Pin with Solder Connection Wire Waterproof Plug ConnectorCnlinko 500V 20A IP68 Connector Waterproof 4 Pin with Solder Connection Wire Waterproof Plug ConnectorCnlinko 500V 20A IP68 Connector Waterproof 4 Pin with Solder Connection Wire Waterproof Plug ConnectorCnlinko 500V 20A IP68 Connector Waterproof 4 Pin with Solder Connection Wire Waterproof Plug ConnectorCnlinko 500V 20A IP68 Connector Waterproof 4 Pin with Solder Connection Wire Waterproof Plug Connector

Cnlinko 500V 20A IP68 Connector Waterproof 4 Pin with Solder Connection Wire Waterproof Plug Connector

Cnlinko 500V 20A IP68 Connector Waterproof 4 Pin with Solder Connection Wire Waterproof Plug Connector


Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP67
Cable specification 2.5mm2 ~ 4mm2 /14~12AWG
Diameter range Φ8mm ~Φ12mm
Contact diameter×Qty Φ2.7×4
Current rating(A) 20A
Operating voltage(AC.V.rms) 500V
Withstand voltage(AC.V)1min 2500V
Contact resistance <1mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Solder
Prevent the combustion level UL94-V0
Material
Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
