Specifications
Place of Origin :
Guangdong, China
Brand Name :
Cnlinko
Model Number :
YM-20-C02PE-02-001
Certification :
UL,CE,ROHS,CCC,ISO9001
MOQ :
2
Price :
US$2.57-3
Type :
Powercon
Application :
Power
Gender :
male and female, Female +male
Protection level :
IP68
Pin :
2-12pin
Current rating(A) :
20A
Shell & Insulated Parts :
High Performance Engineer Plastic
Hardware Matel :
Zinc Alloy (pearl hard chromium)
Connecting mode :
plug/unplug
Operating voltage :
500V
Description

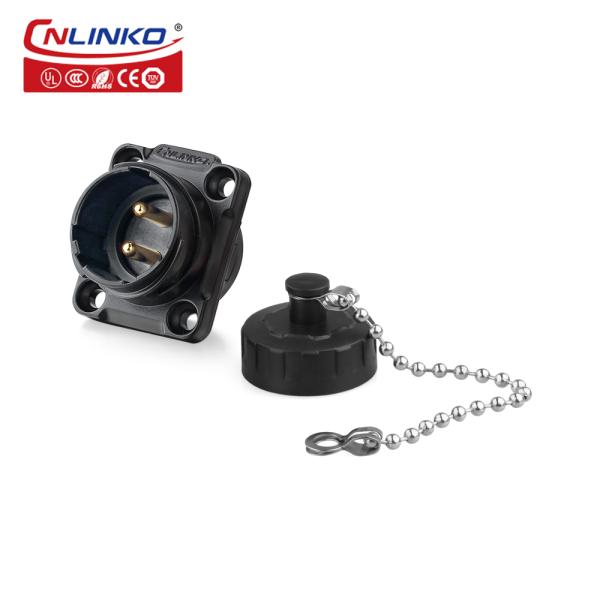

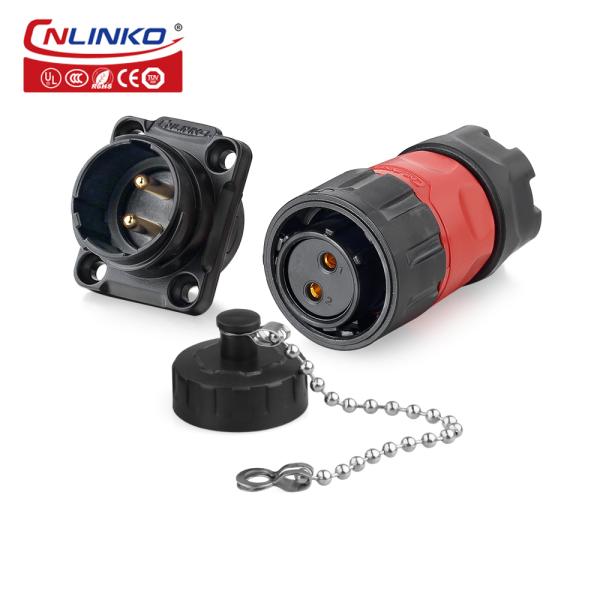

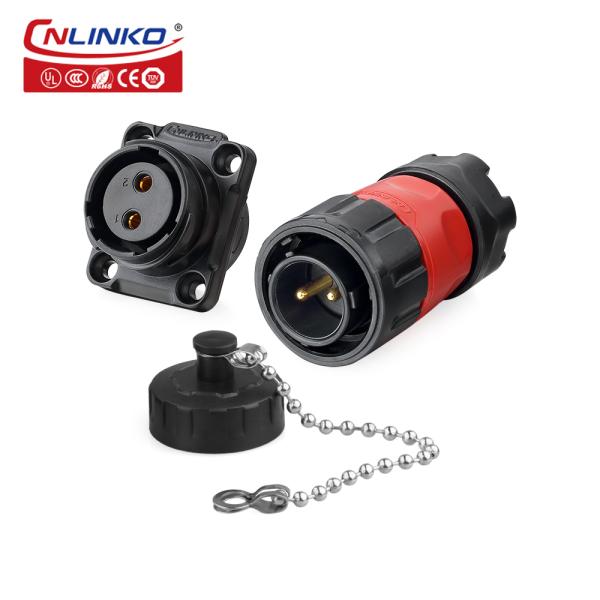

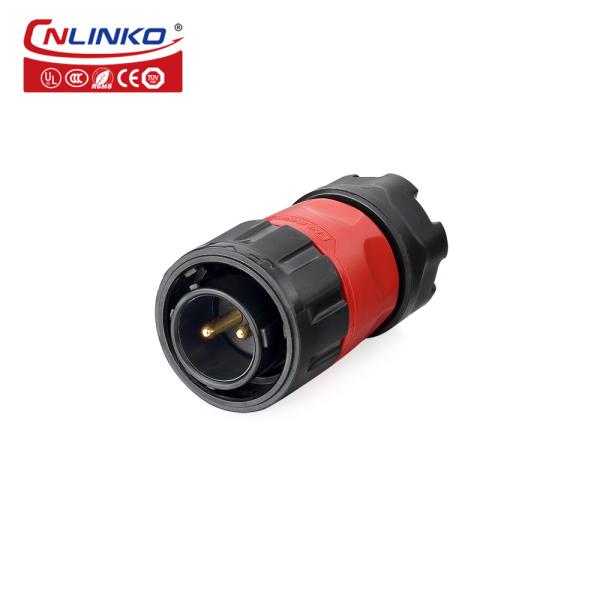

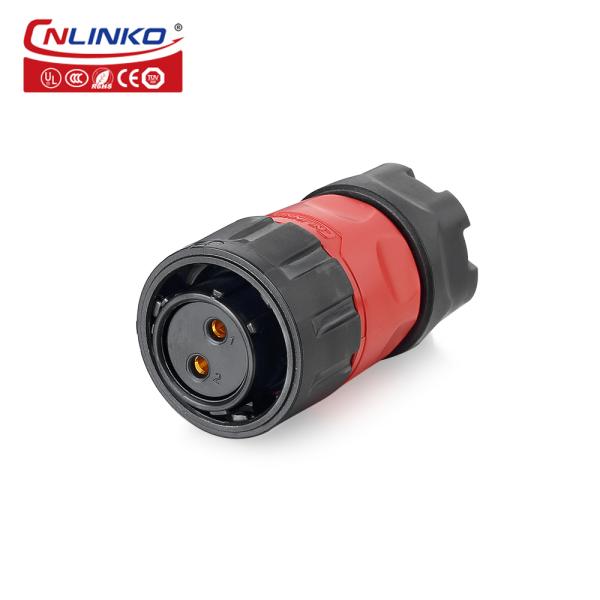

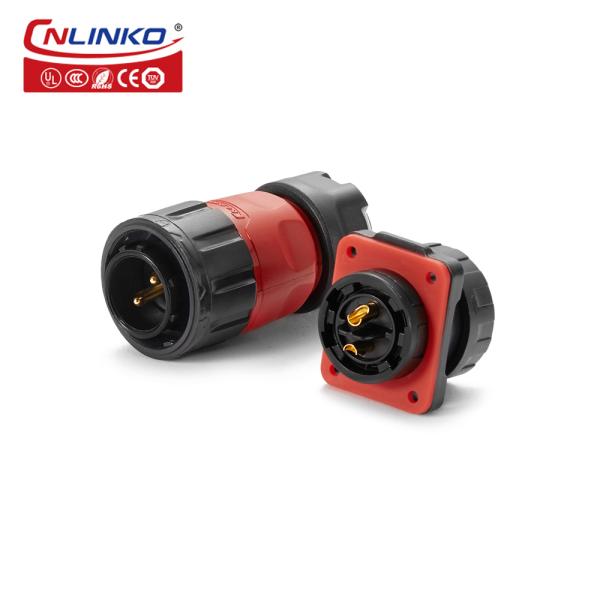

CNLINKO Outdoor 2 pin waterproof plastic connector M20 electrical 12v waterproof bulkhead electrical connector

Features:

multi-pins(2-12 PINGS) for varies industrial demands

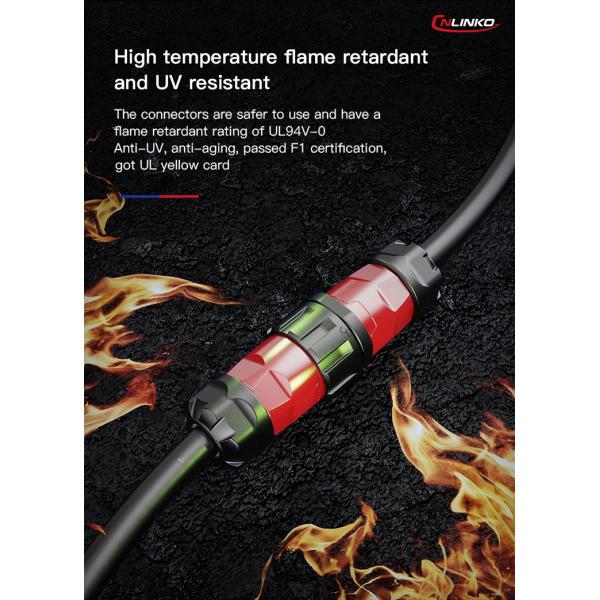

PBT shell ensure fire safety,stable, compression, anti-explosion and anti-deformation

gold-plated contact, high performance of corrosion resistance and electrical

onductivity effectively deal with temperature rise.

1/4 mount connector, easy operation and installation

dustproof cover design under off-working condition

rated current is 12A rms

protection level:IP68

Widely used the following field:

1.LED screen industry
2.audio-visual equipment
3.medical equipment
4.industrial control test and measurement equipment
5.AV systems,broadcast television and communications industry and other fields.
6. waterproof square wire connector ip68
7. 2/3/4/5/7/9/12 pin connector
8. Electrical Products 2 Pin Auto Waterproof Connector Male and Female Pin Wire Harness Connector

Product Description

CNLINKO Outdoor 2 Pin Waterproof Plastic Connector M20 Electrical 12v Waterproof Bulkhead Electrical ConnectorsCNLINKO Outdoor 2 Pin Waterproof Plastic Connector M20 Electrical 12v Waterproof Bulkhead Electrical ConnectorsCNLINKO Outdoor 2 Pin Waterproof Plastic Connector M20 Electrical 12v Waterproof Bulkhead Electrical ConnectorsCNLINKO Outdoor 2 Pin Waterproof Plastic Connector M20 Electrical 12v Waterproof Bulkhead Electrical ConnectorsCNLINKO Outdoor 2 Pin Waterproof Plastic Connector M20 Electrical 12v Waterproof Bulkhead Electrical ConnectorsCNLINKO Outdoor 2 Pin Waterproof Plastic Connector M20 Electrical 12v Waterproof Bulkhead Electrical ConnectorsCNLINKO Outdoor 2 Pin Waterproof Plastic Connector M20 Electrical 12v Waterproof Bulkhead Electrical ConnectorsCNLINKO Outdoor 2 Pin Waterproof Plastic Connector M20 Electrical 12v Waterproof Bulkhead Electrical ConnectorsCNLINKO Outdoor 2 Pin Waterproof Plastic Connector M20 Electrical 12v Waterproof Bulkhead Electrical ConnectorsCNLINKO Outdoor 2 Pin Waterproof Plastic Connector M20 Electrical 12v Waterproof Bulkhead Electrical ConnectorsCNLINKO Outdoor 2 Pin Waterproof Plastic Connector M20 Electrical 12v Waterproof Bulkhead Electrical ConnectorsCNLINKO Outdoor 2 Pin Waterproof Plastic Connector M20 Electrical 12v Waterproof Bulkhead Electrical ConnectorsCNLINKO Outdoor 2 Pin Waterproof Plastic Connector M20 Electrical 12v Waterproof Bulkhead Electrical ConnectorsCNLINKO Outdoor 2 Pin Waterproof Plastic Connector M20 Electrical 12v Waterproof Bulkhead Electrical Connectors

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP65/IP67
Cable specification 2.5~4mm2 /14-12AWG
Diameter range Φ9.0mm ~Φ13.0mm
Contact diameter×Qty Φ2.7×2
Current rating(A) 20A
Temperature rise

20A contact temperature below 30℃

25A contact temperature below 40℃

30A contact temperature below 50℃
Operating voltage(AC.V.rms) 500V
Withstanding voltage(AC.V)1min 2500V
Contact resistance <1mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0
Material

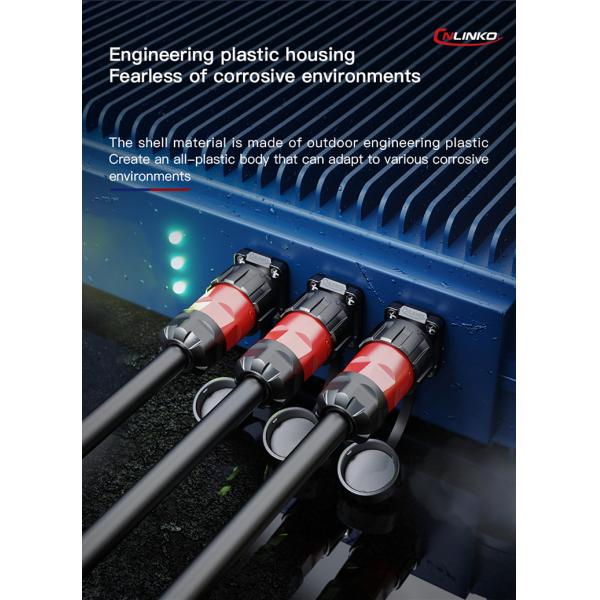

shell & Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics

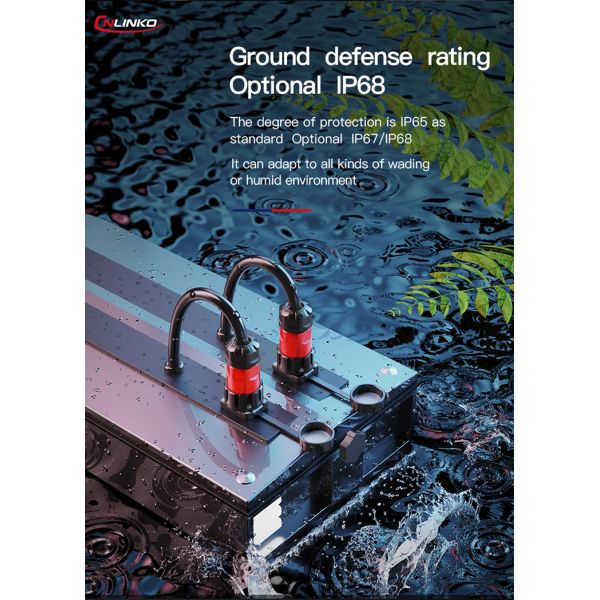

Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance

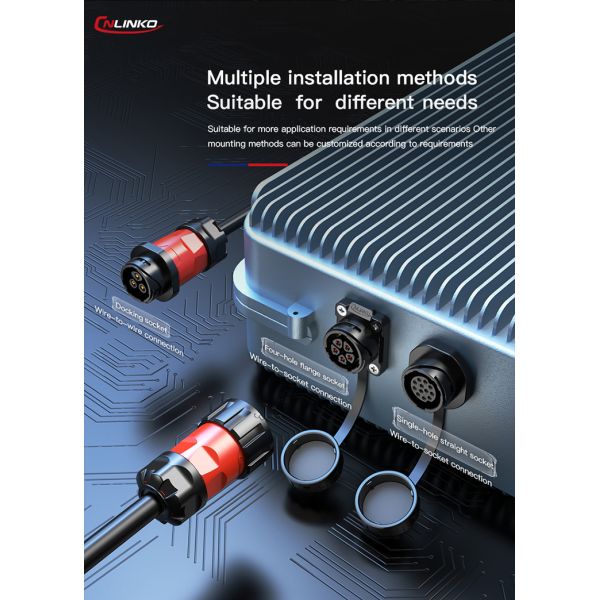

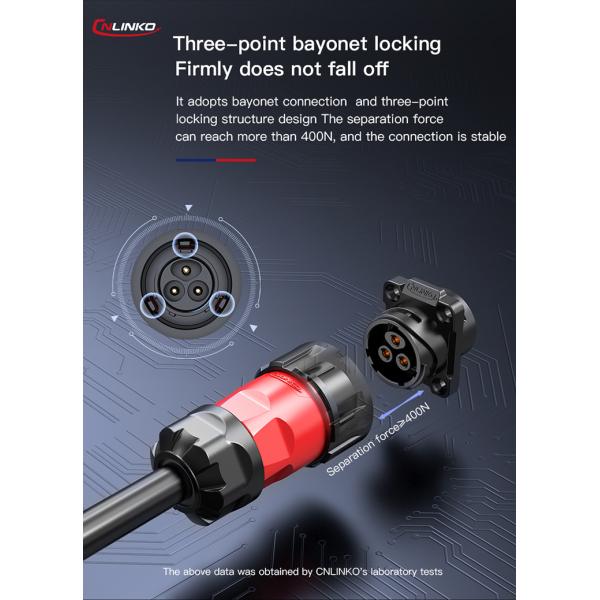

1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server

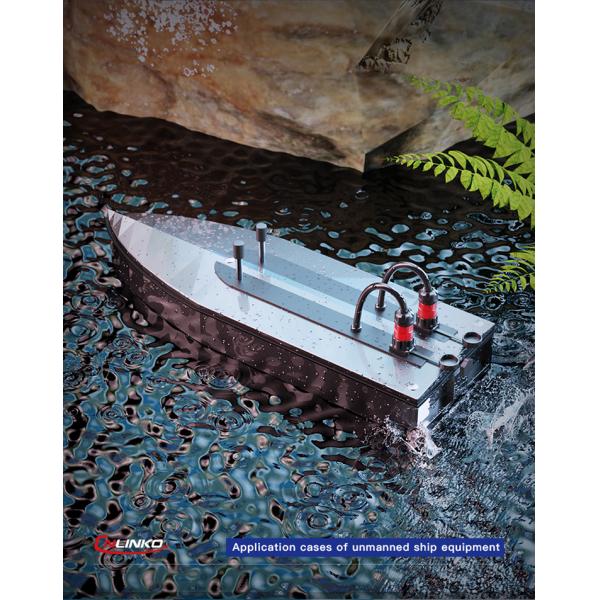

Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery



Certifications
