Specifications
Place of Origin :
Guangdong, China
Brand Name :
Cnlinko
Model Number :
LP-20-J04PE-01-001
Certification :
UL,CE,ROHS,CCC,ISO9001
MOQ :
10
Price :
$4.50-5.25
Type :
XLR, 4 pin molded connector
Application :
Audio & Video
Gender :
male and female, Female +male
Protection level :
IP68
Pin :
4 pin
Current rating(A) :
20A
Shell & Insulated Parts :
High Performance Engineer Plastic
Hardware Matel :
Zinc Alloy (pearl hard chromium)
Connecting mode :
plug/unplug
Operating voltage :
500V
Description

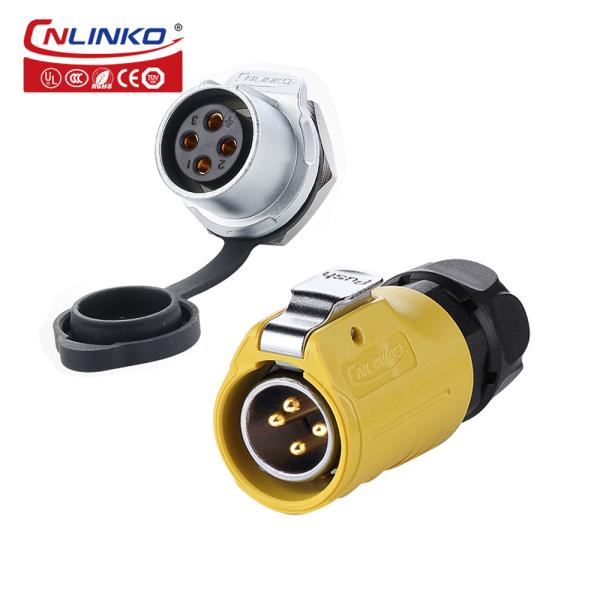

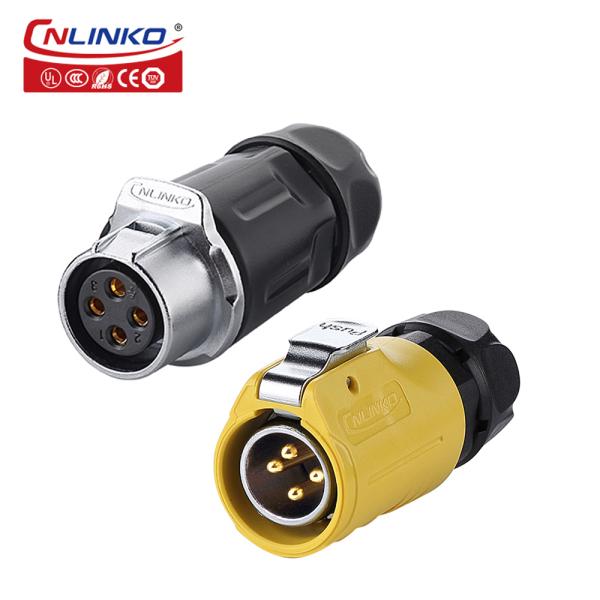

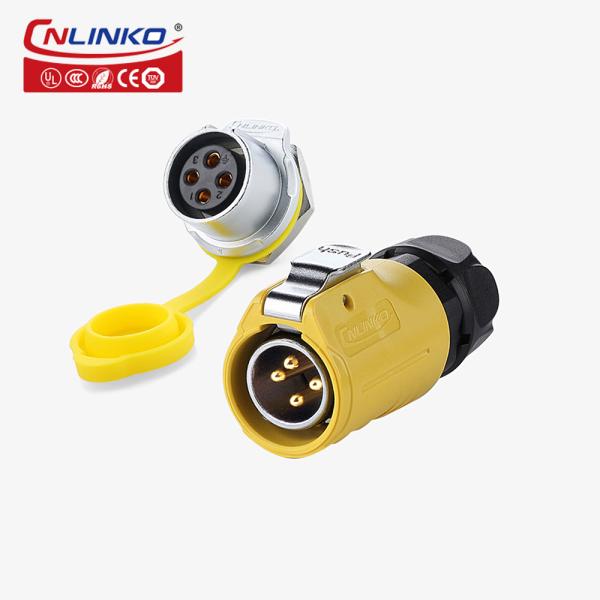

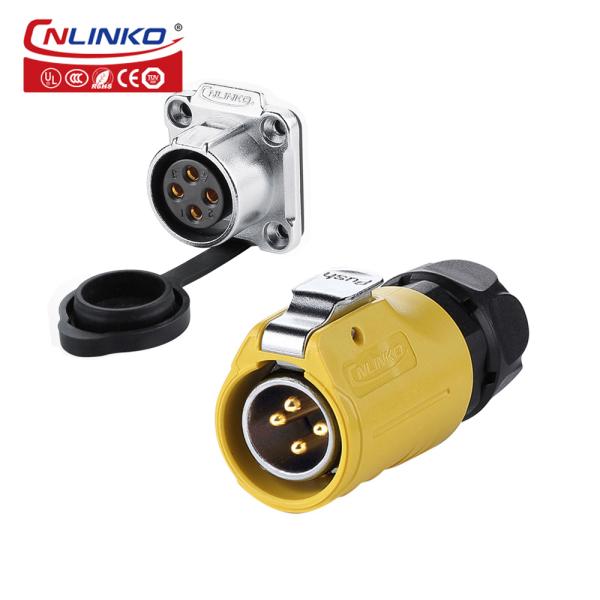

LP Series M20 power cable LED light connectors electric bicycle IP68 4 pin waterproof connector

Product Description

Cnlinko M20 Power Cable LED Light Connectors Electric Bicycle IP68 4 Pin Waterproof ConnectorCnlinko M20 Power Cable LED Light Connectors Electric Bicycle IP68 4 Pin Waterproof ConnectorCnlinko M20 Power Cable LED Light Connectors Electric Bicycle IP68 4 Pin Waterproof ConnectorCnlinko M20 Power Cable LED Light Connectors Electric Bicycle IP68 4 Pin Waterproof ConnectorCnlinko M20 Power Cable LED Light Connectors Electric Bicycle IP68 4 Pin Waterproof ConnectorCnlinko M20 Power Cable LED Light Connectors Electric Bicycle IP68 4 Pin Waterproof ConnectorCnlinko M20 Power Cable LED Light Connectors Electric Bicycle IP68 4 Pin Waterproof Connector

Cnlinko M20 Power Cable LED Light Connectors Electric Bicycle IP68 4 Pin Waterproof Connector

Cnlinko M20 Power Cable LED Light Connectors Electric Bicycle IP68 4 Pin Waterproof Connector

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP67
Cable specification 2.5mm2 ~ 4mm2 /14~12AWG
Diameter range Φ8mm ~Φ12mm
Contact diameter×Qty Φ2.7×4
Current rating(A) 20A
Operating voltage(AC.V.rms) 500V
Withstand voltage(AC.V)1min 2500V
Contact resistance <1mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Solder
Prevent the combustion level UL94-V0
Material
Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance

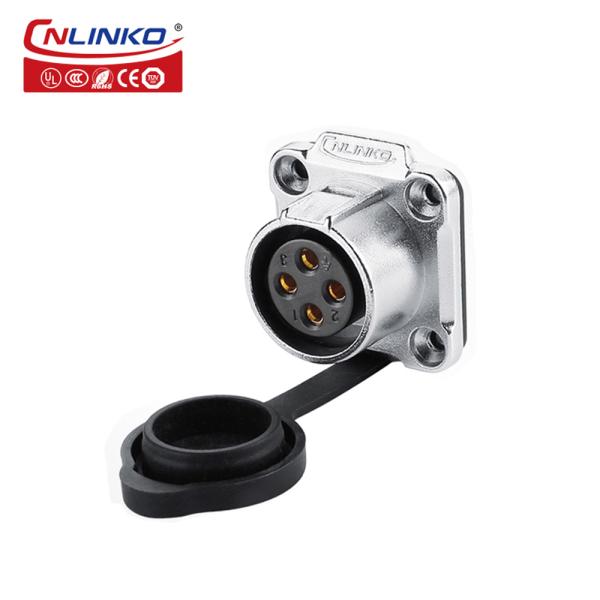

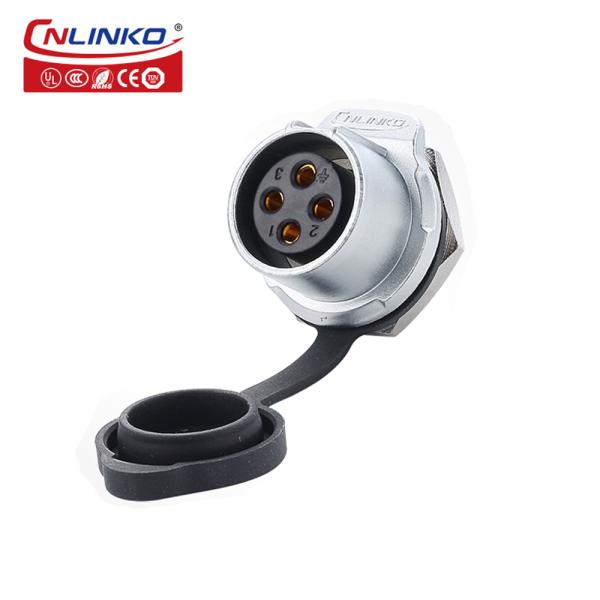

socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
