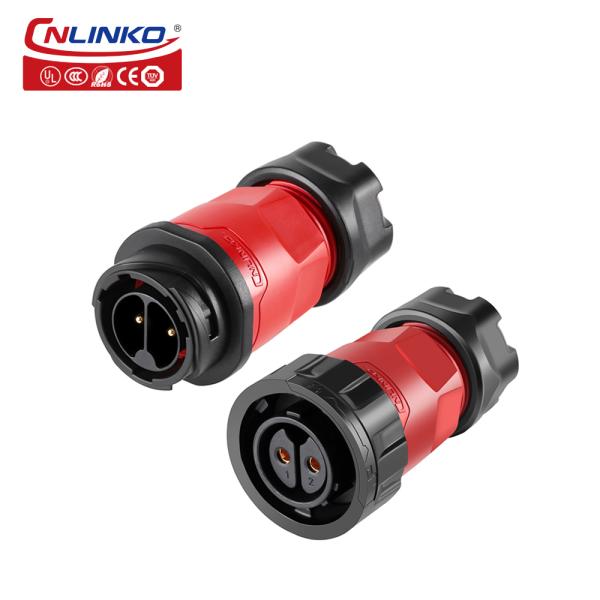

CNLINKO Outdoor Waterproof Plug and Socket 24v Power Cable 2 Pin Electrical Wire Connector Plug
CNLINKO Outdoor Waterproof Plug and Socket 24v Power Cable 2 Pin Electrical Wire Connector Plug
CNLINKO Outdoor Waterproof Plug and Socket 24v Power Cable 2 Pin Electrical Wire Connector Plug
CNLINKO Outdoor Waterproof Plug and Socket 24v Power Cable 2 Pin Electrical Wire Connector Plug
CNLINKO Outdoor Waterproof Plug and Socket 24v Power Cable 2 Pin Electrical Wire Connector Plug
CNLINKO Outdoor Waterproof Plug and Socket 24v Power Cable 2 Pin Electrical Wire Connector Plug
CNLINKO Outdoor Waterproof Plug and Socket 24v Power Cable 2 Pin Electrical Wire Connector Plug
CNLINKO Outdoor Waterproof Plug and Socket 24v Power Cable 2 Pin Electrical Wire Connector Plug
CNLINKO Outdoor Waterproof Plug and Socket 24v Power Cable 2 Pin Electrical Wire Connector Plug
CNLINKO Outdoor Waterproof Plug and Socket 24v Power Cable 2 Pin Electrical Wire Connector Plug
CNLINKO Outdoor Waterproof Plug and Socket 24v Power Cable 2 Pin Electrical Wire Connector Plug
CNLINKO Outdoor Waterproof Plug and Socket 24v Power Cable 2 Pin Electrical Wire Connector Plug
Specifications
Place of Origin :
Guangdong, China
Brand Name :
CNLINKO
Model Number :
YM-20-J02PE-02-001
Certification :
CE,CCC,ISO9001
MOQ :
2
Price :
$5.25-6.25
Type :
Powercon
Application :
Power
Gender :
Male & female
product type :
2 pin
Rated current :
20A
Rated Voltage :
500V
Protection level :
IP67
Connecting mode :
1/4bayonet
Assembly wire :
soldering
Product name :
2 pin electrical wire connector plug
Cable specification :
26-24 AWG
Diameter range :
5.5mm-7mm
Description

CNLINKO Outdoor Waterproof plug and socket 24v power cable 2 pin electrical wire connector plug

Features:

multi-pins(2-12 PINGS) for varies industrial demands

PBT shell ensure fire safety,stable, compression, anti-explosion and anti-deformation

gold-plated contact, high performance of corrosion resistance and electrical

onductivity effectively deal with temperature rise.

1/4 mount connector, easy operation and installation

dustproof cover design under off-working condition

rated current is 12A rms

protection level:IP65/67

Widely used the following field:

1.LED screen industry
2.audio-visual equipment
3.medical equipment
4.industrial control test and measurement equipment
5.AV systems,broadcast television and communications industry and other fields.
6. waterproof square wire connector ip68
7. 2/3/4/5/7/9/12 pin connector

Product Description

CNLINKO Outdoor Waterproof Plug and Socket 24v Power Cable 2 Pin Electrical Wire Connector PlugCNLINKO Outdoor Waterproof Plug and Socket 24v Power Cable 2 Pin Electrical Wire Connector PlugCNLINKO Outdoor Waterproof Plug and Socket 24v Power Cable 2 Pin Electrical Wire Connector PlugCNLINKO Outdoor Waterproof Plug and Socket 24v Power Cable 2 Pin Electrical Wire Connector PlugCNLINKO Outdoor Waterproof Plug and Socket 24v Power Cable 2 Pin Electrical Wire Connector PlugCNLINKO Outdoor Waterproof Plug and Socket 24v Power Cable 2 Pin Electrical Wire Connector PlugCNLINKO Outdoor Waterproof Plug and Socket 24v Power Cable 2 Pin Electrical Wire Connector PlugCNLINKO Outdoor Waterproof Plug and Socket 24v Power Cable 2 Pin Electrical Wire Connector PlugCNLINKO Outdoor Waterproof Plug and Socket 24v Power Cable 2 Pin Electrical Wire Connector PlugCNLINKO Outdoor Waterproof Plug and Socket 24v Power Cable 2 Pin Electrical Wire Connector PlugCNLINKO Outdoor Waterproof Plug and Socket 24v Power Cable 2 Pin Electrical Wire Connector PlugCNLINKO Outdoor Waterproof Plug and Socket 24v Power Cable 2 Pin Electrical Wire Connector PlugCNLINKO Outdoor Waterproof Plug and Socket 24v Power Cable 2 Pin Electrical Wire Connector PlugCNLINKO Outdoor Waterproof Plug and Socket 24v Power Cable 2 Pin Electrical Wire Connector Plug

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP65/IP67
Cable specification 2.5~4mm2 /14-12AWG
Diameter range Φ9.0mm ~Φ13.0mm
Contact diameter×Qty Φ2.7×2
Current rating(A) 20A
Temperature rise

20A contact temperature below 30℃

25A contact temperature below 40℃

30A contact temperature below 50℃
Operating voltage(AC.V.rms) 500V
Withstanding voltage(AC.V)1min 2500V
Contact resistance <1mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0
Material
shell & Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance

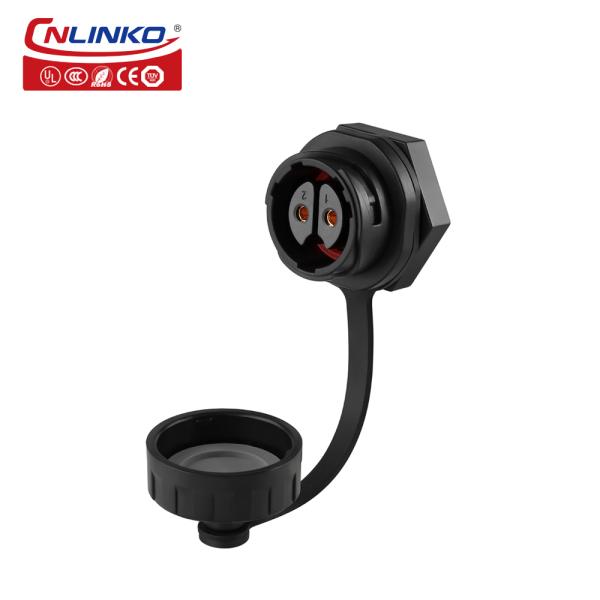

1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
