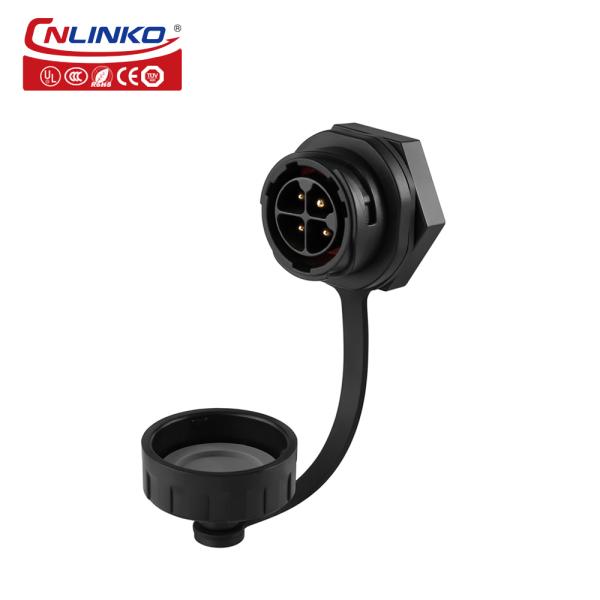

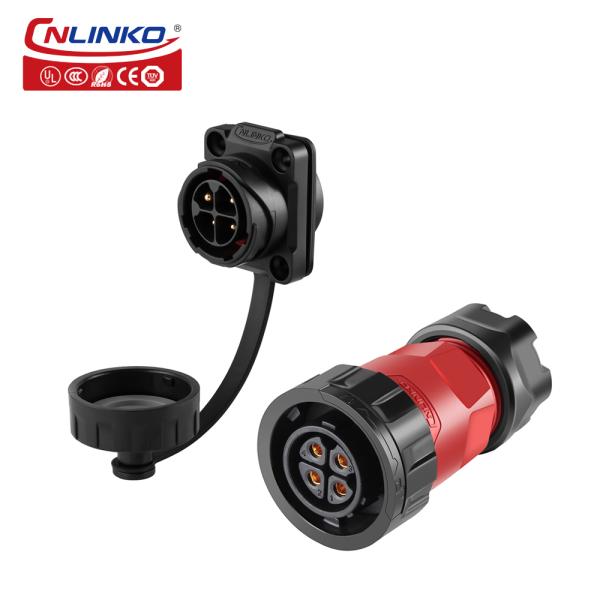

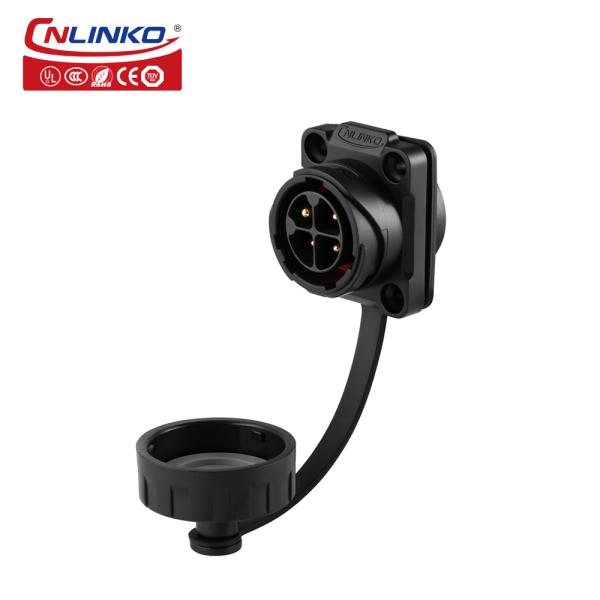

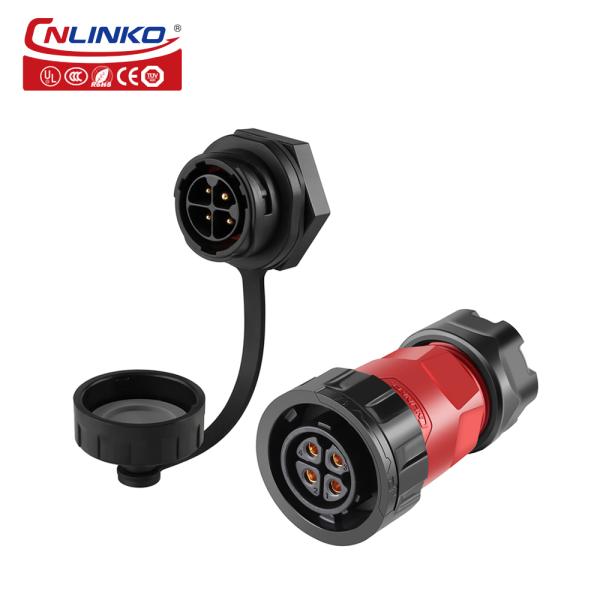

CNLINKO IP68 Waterproof Bulkhead Electrical Bayonet 4 Pin Connector Male Female Industrial Plug and Socket Power Connector
CNLINKO IP68 Waterproof Bulkhead Electrical Bayonet 4 Pin Connector Male Female Industrial Plug and Socket Power Connector
CNLINKO IP68 Waterproof Bulkhead Electrical Bayonet 4 Pin Connector Male Female Industrial Plug and Socket Power Connector
CNLINKO IP68 Waterproof Bulkhead Electrical Bayonet 4 Pin Connector Male Female Industrial Plug and Socket Power Connector
CNLINKO IP68 Waterproof Bulkhead Electrical Bayonet 4 Pin Connector Male Female Industrial Plug and Socket Power Connector
CNLINKO IP68 Waterproof Bulkhead Electrical Bayonet 4 Pin Connector Male Female Industrial Plug and Socket Power Connector
CNLINKO IP68 Waterproof Bulkhead Electrical Bayonet 4 Pin Connector Male Female Industrial Plug and Socket Power Connector
CNLINKO IP68 Waterproof Bulkhead Electrical Bayonet 4 Pin Connector Male Female Industrial Plug and Socket Power Connector
CNLINKO IP68 Waterproof Bulkhead Electrical Bayonet 4 Pin Connector Male Female Industrial Plug and Socket Power Connector
CNLINKO IP68 Waterproof Bulkhead Electrical Bayonet 4 Pin Connector Male Female Industrial Plug and Socket Power Connector
CNLINKO IP68 Waterproof Bulkhead Electrical Bayonet 4 Pin Connector Male Female Industrial Plug and Socket Power Connector
CNLINKO IP68 Waterproof Bulkhead Electrical Bayonet 4 Pin Connector Male Female Industrial Plug and Socket Power Connector
Specifications
Place of Origin :
Guangdong, China
Brand Name :
CNLINKO
Model Number :
YM-20-J04PE-02-001
Certification :
UL,CE,CCC,ISO9001,IP67
MOQ :
2
Price :
$6.22-7.22
Type :
Powercon
Application :
Power
Gender :
Female & Male
contact diameter and number :
2.7*4
Rated current :
20A
operating voltage (AC.V.rms) :
500V
Protection level :
IP67
Product name :
4 pin connector
Assembly wire :
soldering
cable specification :
2.5m㎡~4m㎡/14~12AWG
diameter range :
8mm~12mm
flammability rating :
UL94-V0
Description

CNLINKO IP67 Waterproof Bulkhead Electrical Bayonet 4 Pin Connector Male Female Industrial Plug and Socket Power Connector

Features:

1.Multi-core design styles(2-12 cores),in line with the diversity of industrial demand,signal and power compatible match.
2.PBT material of the protective housing,with characters of fire safety,compression,anti-explosion and anti-deformation
3.Gold-plated contacts,high-strength corrosion resistance and electrical conductivity,effective response to temperature changes in current.
4.1/4 quick bayonet coupling,simple operation,easy installation.
5.Dustproof cover design under off-working condition.
6. 20A rms current rating.
7. Protection level:IP65/IP67

YM series connectors,using high-end injection molding PBT material,ensuring stable performance,multi-core design of the product,while meeting the needs of a number of power and signal equipment,the central shell distinctive logo,highlighting the latest design cnlinko.

Product Description

CNLINKO IP68 Waterproof Bulkhead Electrical Bayonet 4 Pin Connector Male Female Industrial Plug and Socket Power ConnectorCNLINKO IP68 Waterproof Bulkhead Electrical Bayonet 4 Pin Connector Male Female Industrial Plug and Socket Power ConnectorCNLINKO IP68 Waterproof Bulkhead Electrical Bayonet 4 Pin Connector Male Female Industrial Plug and Socket Power ConnectorCNLINKO IP68 Waterproof Bulkhead Electrical Bayonet 4 Pin Connector Male Female Industrial Plug and Socket Power ConnectorCNLINKO IP68 Waterproof Bulkhead Electrical Bayonet 4 Pin Connector Male Female Industrial Plug and Socket Power ConnectorCNLINKO IP68 Waterproof Bulkhead Electrical Bayonet 4 Pin Connector Male Female Industrial Plug and Socket Power ConnectorCNLINKO IP68 Waterproof Bulkhead Electrical Bayonet 4 Pin Connector Male Female Industrial Plug and Socket Power ConnectorCNLINKO IP68 Waterproof Bulkhead Electrical Bayonet 4 Pin Connector Male Female Industrial Plug and Socket Power ConnectorCNLINKO IP68 Waterproof Bulkhead Electrical Bayonet 4 Pin Connector Male Female Industrial Plug and Socket Power ConnectorCNLINKO IP68 Waterproof Bulkhead Electrical Bayonet 4 Pin Connector Male Female Industrial Plug and Socket Power ConnectorCNLINKO IP68 Waterproof Bulkhead Electrical Bayonet 4 Pin Connector Male Female Industrial Plug and Socket Power ConnectorCNLINKO IP68 Waterproof Bulkhead Electrical Bayonet 4 Pin Connector Male Female Industrial Plug and Socket Power ConnectorCNLINKO IP68 Waterproof Bulkhead Electrical Bayonet 4 Pin Connector Male Female Industrial Plug and Socket Power ConnectorCNLINKO IP68 Waterproof Bulkhead Electrical Bayonet 4 Pin Connector Male Female Industrial Plug and Socket Power Connector

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP65/IP67
Cable specification 2.5~4mm2 /14-12AWG
Diameter range Φ9.0mm ~Φ13.0mm
Contact diameter×Qty Φ2.7×4
Current rating(A) 20A
Temperature rise

20A contact temperature below 30℃

25A contact temperature below 40℃

30A contact temperature below 50℃
Operating voltage(AC.V.rms) 500V
Withstanding voltage(AC.V)1min 2500V
Contact resistance <1mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0
Material
shell & Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
