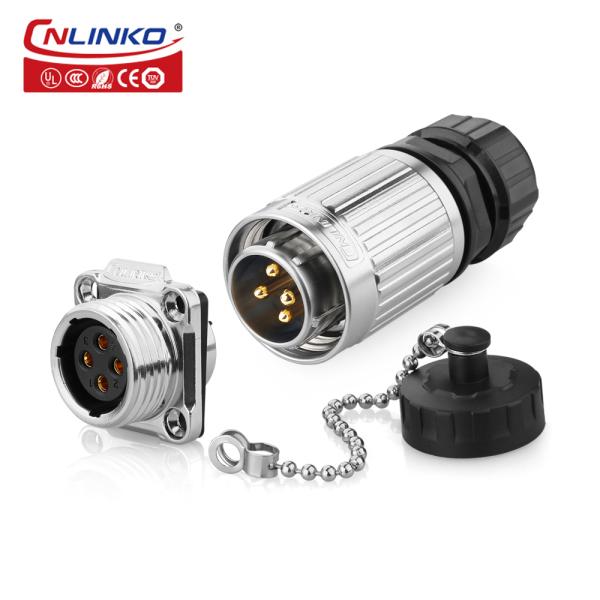

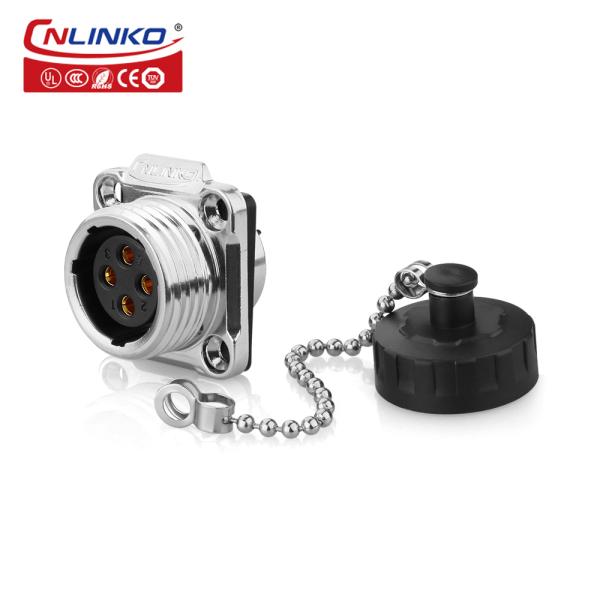

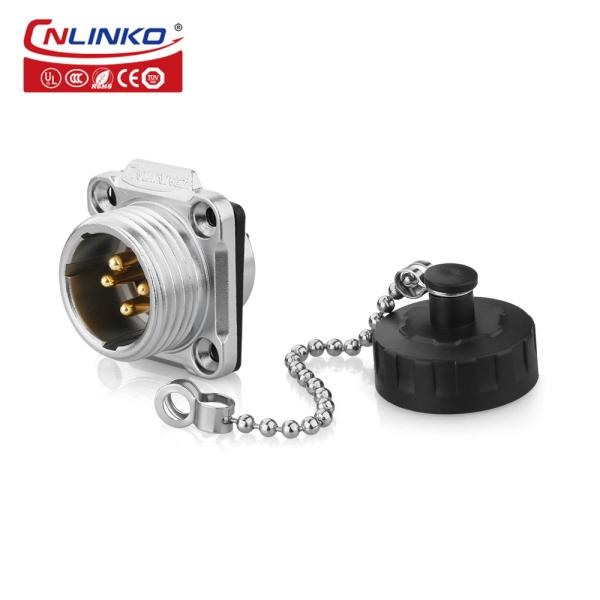

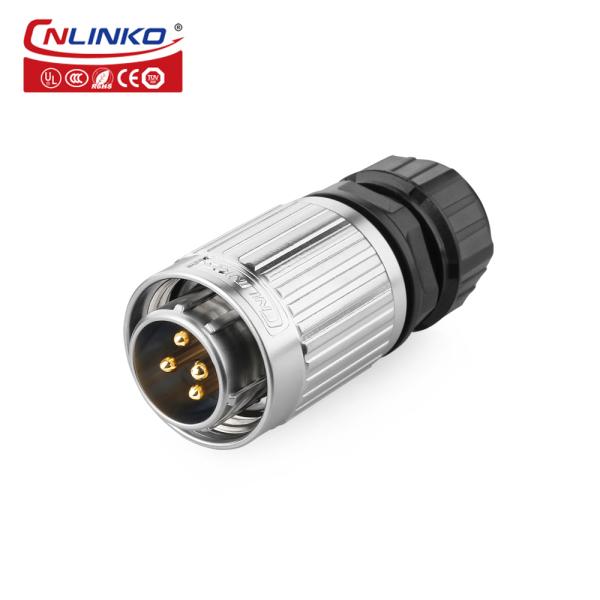

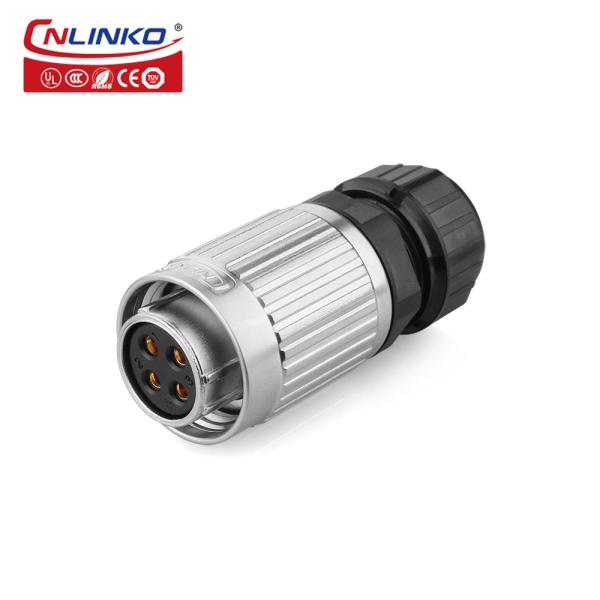

CNLINKO M20 4 pin waterproof connector Outdoor 4 Pin Circular Plug Socket ip67 waterproof connector
CNLINKO M20 4 pin waterproof connector Outdoor 4 Pin Circular Plug Socket ip67 waterproof connector
CNLINKO M20 4 pin waterproof connector Outdoor 4 Pin Circular Plug Socket ip67 waterproof connector
CNLINKO M20 4 pin waterproof connector Outdoor 4 Pin Circular Plug Socket ip67 waterproof connector
CNLINKO M20 4 pin waterproof connector Outdoor 4 Pin Circular Plug Socket ip67 waterproof connector
CNLINKO M20 4 pin waterproof connector Outdoor 4 Pin Circular Plug Socket ip67 waterproof connector
CNLINKO M20 4 pin waterproof connector Outdoor 4 Pin Circular Plug Socket ip67 waterproof connector
CNLINKO M20 4 pin waterproof connector Outdoor 4 Pin Circular Plug Socket ip67 waterproof connector
CNLINKO M20 4 pin waterproof connector Outdoor 4 Pin Circular Plug Socket ip67 waterproof connector
CNLINKO M20 4 pin waterproof connector Outdoor 4 Pin Circular Plug Socket ip67 waterproof connector
CNLINKO M20 4 pin waterproof connector Outdoor 4 Pin Circular Plug Socket ip67 waterproof connector
CNLINKO M20 4 pin waterproof connector Outdoor 4 Pin Circular Plug Socket ip67 waterproof connector
Specifications
Model Number :
YW-20-C04PE-03-001
Place of Origin :
Guangdong, China
Certification :
UL,CE,ROHS,CCC,ISO9001
MOQ :
10
Price :
$6.60-7.60
Type :
Plug - Female Sockets
Brand :
CNLINKO
Packaging :
Carton
Description :
Connector
Protection level :
IP65/IP67
Product type :
M20 4 pin waterproof connector
Gender :
Female +male
Pin :
4pin
Current rating(A) :
20A
Shell & Insulated Parts :
High Performance Engineer Plastic
Hardware Matel :
Zinc Alloy (pearl hard chromium)
Connecting mode :
plug/unplug
Operating voltage :
500V
Description

CNLINKO M20 4 pin waterproof connector Outdoor 4 Pin Circular Plug Socket ip67 waterproof connector

Product Description

YW-20 series electrical connectors IP65/IP67

all zinc alloy shell, intact electromagnetic and radio frequency interference protection, while can adapt the demands of top-grade products

Outer screw locking device, solid and safety

16MM and 20MM optional mounting dimensions

quickly and easy nut locking system design

Hanging dust cover design avoid matters; high safe performance, easy to operate

2-12pins optional

5-20A rms rated current

Slip-resistant outer circle.

CNLINKO M20 4 pin waterproof connector Outdoor 4 Pin Circular Plug Socket ip67 waterproof connectorCNLINKO M20 4 pin waterproof connector Outdoor 4 Pin Circular Plug Socket ip67 waterproof connectorCNLINKO M20 4 pin waterproof connector Outdoor 4 Pin Circular Plug Socket ip67 waterproof connectorCNLINKO M20 4 pin waterproof connector Outdoor 4 Pin Circular Plug Socket ip67 waterproof connectorCNLINKO M20 4 pin waterproof connector Outdoor 4 Pin Circular Plug Socket ip67 waterproof connectorCNLINKO M20 4 pin waterproof connector Outdoor 4 Pin Circular Plug Socket ip67 waterproof connectorCNLINKO M20 4 pin waterproof connector Outdoor 4 Pin Circular Plug Socket ip67 waterproof connectorCNLINKO M20 4 pin waterproof connector Outdoor 4 Pin Circular Plug Socket ip67 waterproof connectorCNLINKO M20 4 pin waterproof connector Outdoor 4 Pin Circular Plug Socket ip67 waterproof connector

Specifications

Specifications
Connecting mode Latching Lock connect
Protection level IP67
Cable specification 0.15m2 ~ 0.2mm2 /14~12AWG
Diameter range Φ5.5mm ~Φ7mm
Contact diameter×Qty 8 Pin
Current rating(A) 5A
Operating voltage(AC.V.rms) 1000V
Withstand voltage(AC.V)1min /
Contact resistance <30mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Solder
Prevent the combustion level UL94-V0
Material
Shell&insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)

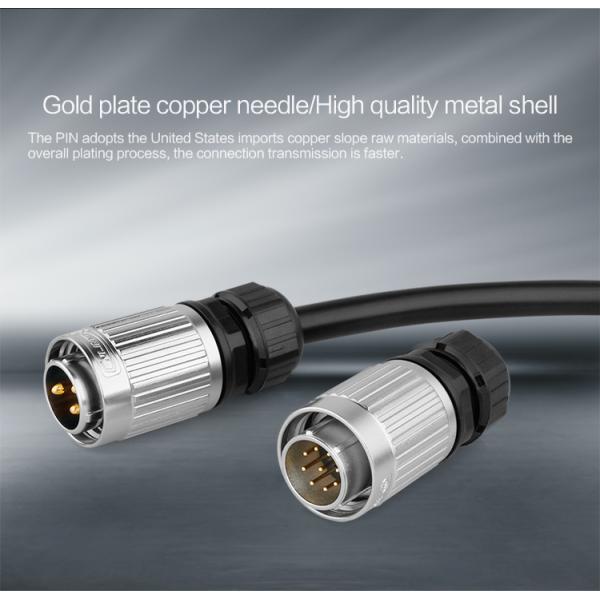

Contact pin Copper alloy(gold-plated)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery

Certifications
