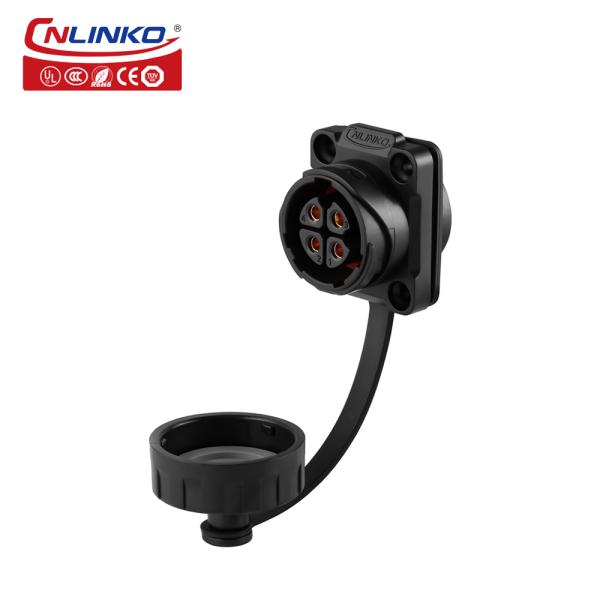

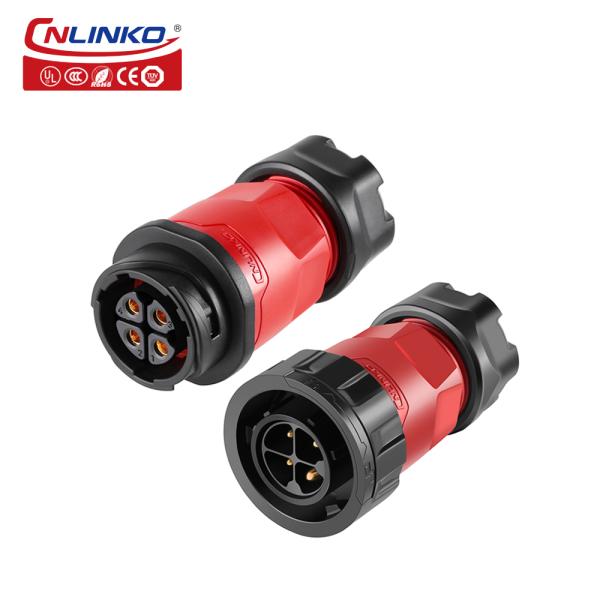

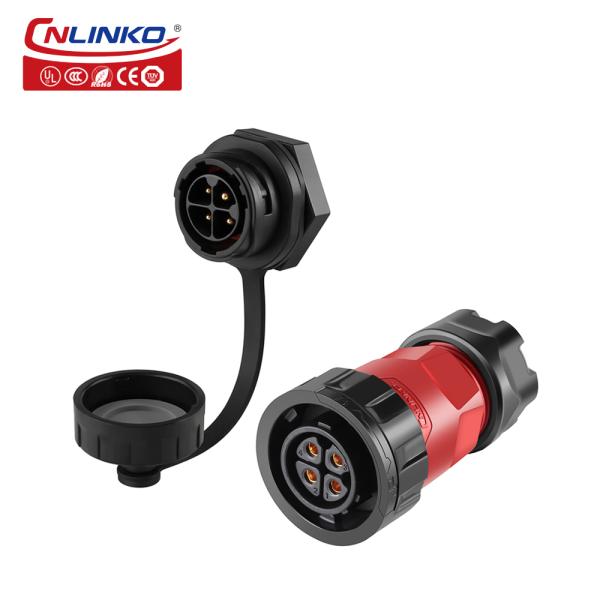

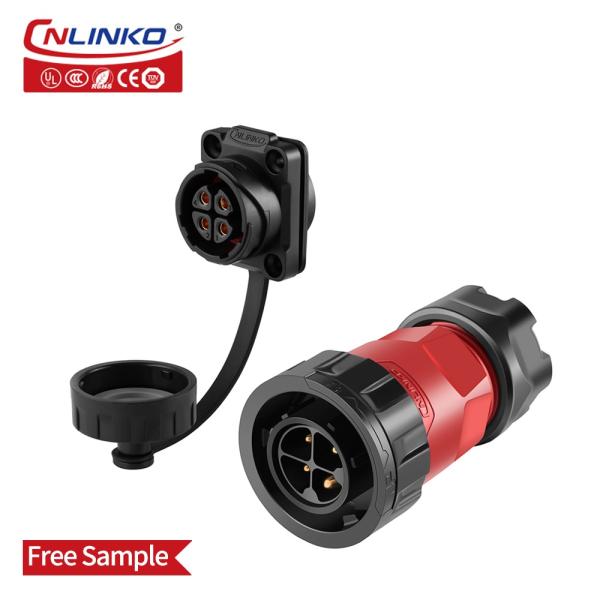

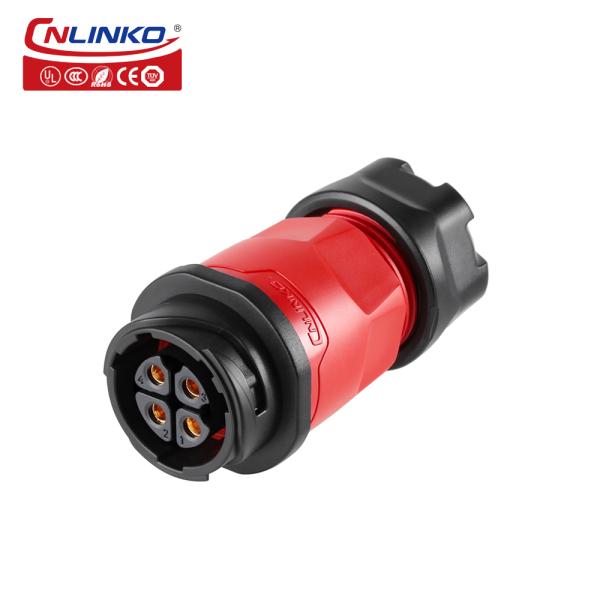

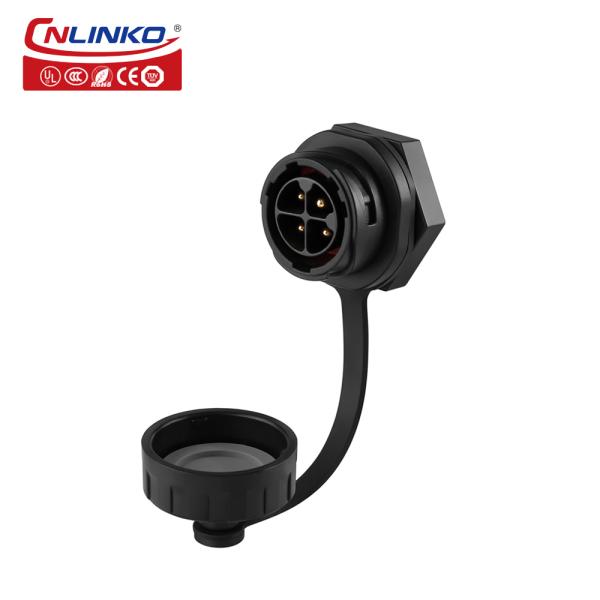

CNLINKO M20 Waterproof Power Plug Socket Panel Mount 20A 4 Pin Cable Connector
CNLINKO M20 Waterproof Power Plug Socket Panel Mount 20A 4 Pin Cable Connector
CNLINKO M20 Waterproof Power Plug Socket Panel Mount 20A 4 Pin Cable Connector
CNLINKO M20 Waterproof Power Plug Socket Panel Mount 20A 4 Pin Cable Connector
CNLINKO M20 Waterproof Power Plug Socket Panel Mount 20A 4 Pin Cable Connector
CNLINKO M20 Waterproof Power Plug Socket Panel Mount 20A 4 Pin Cable Connector
CNLINKO M20 Waterproof Power Plug Socket Panel Mount 20A 4 Pin Cable Connector
CNLINKO M20 Waterproof Power Plug Socket Panel Mount 20A 4 Pin Cable Connector
CNLINKO M20 Waterproof Power Plug Socket Panel Mount 20A 4 Pin Cable Connector
CNLINKO M20 Waterproof Power Plug Socket Panel Mount 20A 4 Pin Cable Connector
CNLINKO M20 Waterproof Power Plug Socket Panel Mount 20A 4 Pin Cable Connector
CNLINKO M20 Waterproof Power Plug Socket Panel Mount 20A 4 Pin Cable Connector
Specifications
Model Number :
YM-20 4PIN plug socket
Place of Origin :
Guangdong, China
Certification :
CUL,CE,ROHS,CCC,ISO9001
MOQ :
2
Price :
$6.22-7.22
Type :
Receptacle - Male Pins
Brand :
Cnlinko
Packaging :
box
Description :
Power connector
Produce type :
power connector
Current rating(A) :
20A
Protection level :
IP67/IP65
Shell & Insulated Parts :
High Performance Engineer Plastic
Hardware Matel :
Zinc Alloy (pearl hard chromium)
Connecting mode :
plug and socket connector
Assembly :
Solder high quality connector
Operating voltage :
500V
Contact pin :
Copper alloy(gold-plated)
Description

CNLINKO M20 Waterproof Power Plug Socket panel mount 20A 4 Pin Cable Connector

Product Description

CNLINKO M20 Waterproof Power Plug Socket Panel Mount 20A 4 Pin Cable ConnectorCNLINKO M20 Waterproof Power Plug Socket Panel Mount 20A 4 Pin Cable ConnectorCNLINKO M20 Waterproof Power Plug Socket Panel Mount 20A 4 Pin Cable ConnectorCNLINKO M20 Waterproof Power Plug Socket Panel Mount 20A 4 Pin Cable ConnectorCNLINKO M20 Waterproof Power Plug Socket Panel Mount 20A 4 Pin Cable ConnectorCNLINKO M20 Waterproof Power Plug Socket Panel Mount 20A 4 Pin Cable ConnectorCNLINKO M20 Waterproof Power Plug Socket Panel Mount 20A 4 Pin Cable ConnectorCNLINKO M20 Waterproof Power Plug Socket Panel Mount 20A 4 Pin Cable ConnectorCNLINKO M20 Waterproof Power Plug Socket Panel Mount 20A 4 Pin Cable ConnectorCNLINKO M20 Waterproof Power Plug Socket Panel Mount 20A 4 Pin Cable ConnectorCNLINKO M20 Waterproof Power Plug Socket Panel Mount 20A 4 Pin Cable ConnectorCNLINKO M20 Waterproof Power Plug Socket Panel Mount 20A 4 Pin Cable ConnectorCNLINKO M20 Waterproof Power Plug Socket Panel Mount 20A 4 Pin Cable ConnectorCNLINKO M20 Waterproof Power Plug Socket Panel Mount 20A 4 Pin Cable Connector

Specifications
Specifications
Connecting mode Latching Lock connect
Protection level IP65/IP67
Cable specification 2.5~4mm2 /14-12AWG
Diameter range Φ9.0mm ~Φ13.0mm
Contact diameter×Qty Φ2.7×4
Current rating(A) 20A
Temperature rise

20A contact temperature below 30℃

25A contact temperature below 40℃

30A contact temperature below 50℃
Operating voltage(AC.V.rms) 500V
Withstanding voltage(AC.V)1min 2500V
Contact resistance <1mΩ
Insulation resistance >500MΩ
Durability ≥500 mating&unmating cycles
Temperature rating -40°C~80°C
Method of connecting cable Soldering
Prevent the combustion level UL94-V0
Material
shell & Insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin Copper alloy(gold-plated 4U)
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against dust and fluid (IP65/IP67)
Vibration resistance,impact resistance,stretching resistance
1/4 bayonet connect; socket with cover
Application industries
Stage equipment - The smart grid
Medical equipment - Server
Solar energy equipment - Ship equipment
Electric power equipment - Vehicle equipment
Communications equipment - Heavy machinery
