Specifications
Brand Name :
AISON
Model Number :
Z050WV20
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
200k/month
Delivery Time :
7 working days
Packaging Details :
Blister Package/Carton
Name :
IPS LCD Display Module
Resolution :
800x480
Outline dimension :
120.7*75.8*2.9mm
Active area :
108 x 64.80 mm
Interface :
RGB
Brightness :
500cd/m2
Display mode :
Normally Black
Viewing Direction :
ALL/IPS
Operating temperatures :
-30 to 80 degree
Storage temperatures :
-35 to 85 degree
Description

5 inch 800x480 IPS TFT LCD Module with RGB Interface 40 Pin

Display General Description
Z050WV20 is a 5 inch IPS landscape mode TFT LCD module, with resolution 800x480 pixels. Z050WV20 module is built in with ST7265 driver IC; it supports 24 bit RGB interface, contrast ratio 1000 (typical value). The brightness of Z050WV20 is 500 nits (typical value).
This 5” IPS TFT has a wider viewing angle than TN TFT, the view angle is Left:85 / Right:85 / Up:85 / Down:85 degree (typical value). The supply voltage of Z050WV20 model is from 3.1 to 3.6V, aspect ratio 5:3, normally black, transmissive LCD type, Anti-glare surface glass. It can be operating at wide temperatures from -30℃ to +80℃ and storage temperatures from -35℃ to +85℃.

General Data

Product Name 5 Inch IPS TFT LCD Module
Number of Pixel 800x480
Interface RGB 24bit
Luminance(cd/m2) 500cd/m2
Active area
120.7*75.8*2.9 mm
LCM (W x H x D)
108x64.8 mm
Viewing Direction(eye) IPS/ALL
Operating temperatures -30 to 80 degree
Storage temperatures -35 to 85 degree

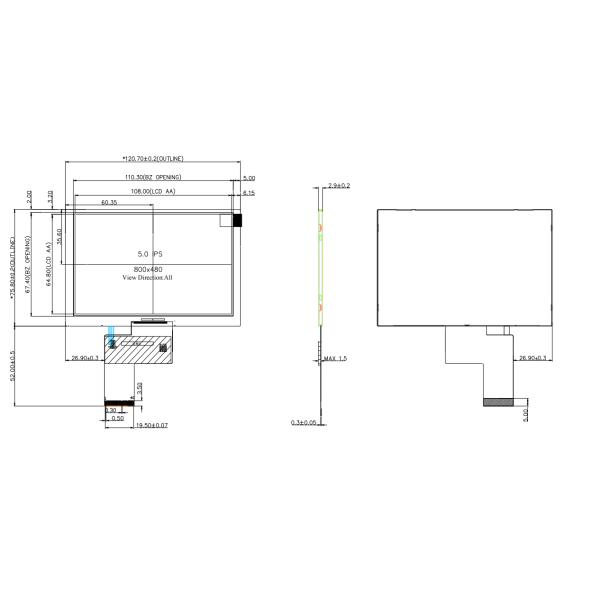

Drawing

5 Inch IPS LCD Display Module 800x480 Industrial Display Module 40 Pin With RGB Interface

Product Details

5 Inch IPS LCD Display Module 800x480 Industrial Display Module 40 Pin With RGB Interface5 Inch IPS LCD Display Module 800x480 Industrial Display Module 40 Pin With RGB Interface

TFT Applications

The 5 inch IPS 800x480 TFT Displays are widely used for Industrial, Smart home,Medical, Automotive ,Intelligent and other applications.
