Specifications
Brand Name :
AISON
Model Number :
Z070TN92
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
10~20usd/pc
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
200k/month
Delivery Time :
7 working days
Packaging Details :
Carton/Blister Package
Display Name :
7 inch RGB TFT LCD Module
Resolution :
800x480
Outline dimension :
164.9*100.0*5.7mm
Active area :
154.08 x 85.92mm
Interface Type :
24 bit RGB
Luminance :
450cd/m2
WorkingTemperature :
-20~70℃
Storage Temperature :
-30~80℃
Description

7 inch TFT LCD Module RGB 24 Bit 50 Pin 800x480 for Industrial Application

General Description

Product Description: Z070TN92 7-inch TFT LCD Module

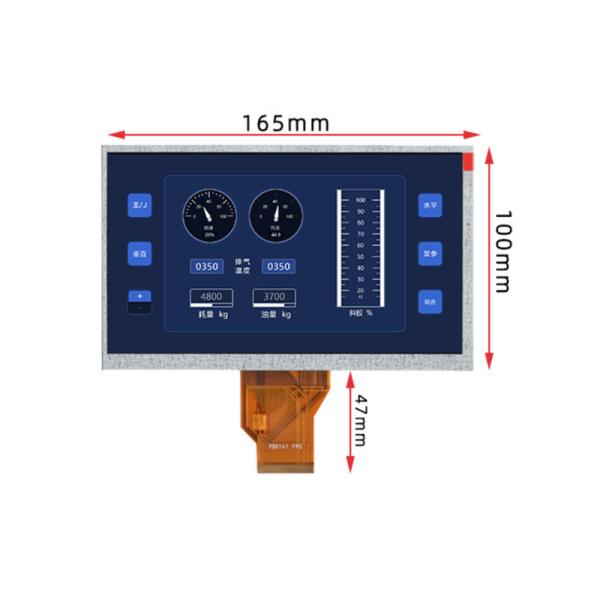

The Z070TN92 is a high-performance 7-inch color TFT LCD module designed for a wide range of applications. With a resolution of 800x480 pixels and a diagonal size of 7 inches, this module offers crisp and vibrant visuals. Its compact dimensions of 165 x 100 mm and an active area of 154.08 x 85.92 mm make it ideal for space-constrained designs.

Key Features:

  • Built-in driver ICs: EK79713CA and EK73202AB2
  • Supports a 24-bit RGB interface for enhanced color reproduction
  • Anti-glare coating for reduced screen reflection
  • High contrast ratio of 800:1 (typical) and brightness of 450 nits (typical)
  • 16:9 aspect ratio for optimal viewing experience
  • Viewing direction optimized for 12 o'clock, grayscale inversion at 6 o'clock
  • Logic supply voltage (VCC): 3.0V to 3.6V (typical 3.3V)
  • Operating temperature range: -20°C to +70°C
  • Storage temperature range: -30°C to +80°C

Applications: The 7 inch lcd module display Z070TN92 is well-suited for industrial control equipment, testing devices, medical equipment, smart home devices, and other demanding environments. Its versatility and robust design make it a reliable choice for a variety of application scenarios.

This TFT LCD module combines excellent performance with durability, making it an ideal solution for developers and manufacturers seeking a high-quality display component.

General Data

Model Name 7 inch TFT Display
Resolution 800*(RGB)*480
Model Size (W*H*T)mm 164.9*100*5.7 mm
Display Area (W*H)mm 154.08 x 85.92mm
Interface RGB
Display Type Normally White TN,Transmissive
Viewing 12:00 o'clock
Brightness 450 cd/m2
Pin number 50
Interface RGB
Operating temperatures -20 to 70 degree
Storage temperatures -30 to 80 degree

Drawing

7 Inch 800x480 TFT LCD Module 50 Pin LCD Display RGB 24 Bit For Industrial Application

Product Details

7 Inch 800x480 TFT LCD Module 50 Pin LCD Display RGB 24 Bit For Industrial Application7 Inch 800x480 TFT LCD Module 50 Pin LCD Display RGB 24 Bit For Industrial Application

TFT Applications

This 7-inch TFT LCD module is well-suited for applications in industrial control equipment, testing devices, medical equipment, and smart home devices, among others. Due to its versatility, this TFT LCD module is suitable for a variety of application scenarios.

7 Inch 800x480 TFT LCD Module 50 Pin LCD Display RGB 24 Bit For Industrial Application
