Specifications
Brand Name :
AISON
Model Number :
Z070WS03
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
Negotiable based on quantity
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
200k/month
Delivery Time :
7 working days
Packaging Details :
Carton/Blister Package
Name :
7 inch Industrial TFT Display
Resolution :
1024X600
Outline dimension :
164.9*100*3.5mm
Active area :
154.21 x 85.92mm
Interface :
RGB
Brightness :
400 cd/m2
LCD Type :
TFT, Normally White, Transmissive
Contrast Ratio :
800:1
Operating temperatures :
-20℃ To +70℃
Storage temperatures :
-30℃ To +80℃
Description

1024x600 Industrial TFT Display 7 Inch Active Matrix TFT Color LCD Display

General Description

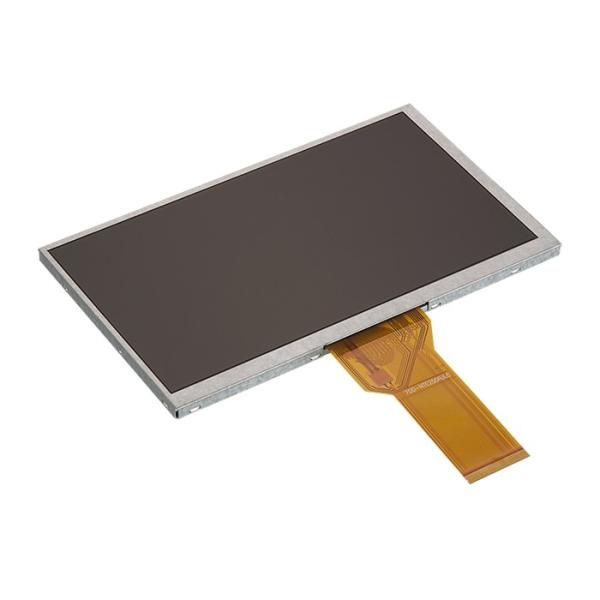

Z070WS03 is a 7-inch TN transmissive type color active matrix TFT LCD with a resolution of 1024x600 pixels with RGB 50 pin interfacce.
The display features an aspect ratio of 16:9. The power voltage (DVDD) ranges from 3.0V to 3.6V, with a typical value of 3.3V. It includes an anti-glare surface panel, with an viewing direction 75/70/75/75. The brightness ranges from 400 nits to 450 nits.


This 7 inch TFT Displays Operating temperatures range from -20°C to +70°C, with storage temperatures from -30°C to +80°C. This TFT display model is suitable for various industrial control product applications.

General Data

Model Name 7 inch RGB TFT Display
Resolution 1024x600 mm
Model Size (W*H*T) 164.9*100*3.5 mm
Display Area (W*H) 154.21 x 85.92
Interface RGB
Display Mode Normally White,Transmissive
Viewing 12 o'clock
Brightness 400 cd/m2
Pin number 50 pin
Contrast Ratio 800:1
Operating temperatures -20 to 70 degree
Storage temperatures -30 to 80 degree



Drawing
7 Inch 1024x600 Industrial TFT Display Active Matrix TFT Color LCD Display

Product Details

7 Inch 1024x600 Industrial TFT Display Active Matrix TFT Color LCD Display7 Inch 1024x600 Industrial TFT Display Active Matrix TFT Color LCD Display7 Inch 1024x600 Industrial TFT Display Active Matrix TFT Color LCD Display7 Inch 1024x600 Industrial TFT Display Active Matrix TFT Color LCD Display



TFT Applications:

This 7 inch TFT LCD module is well-suited for applications in industrial control equipment, testing devices, medical equipment, and smart home devices, among others. Due to its versatility, this TFT LCD module is suitable for a variety of application scenarios.


7 Inch 1024x600 Industrial TFT Display Active Matrix TFT Color LCD Display
