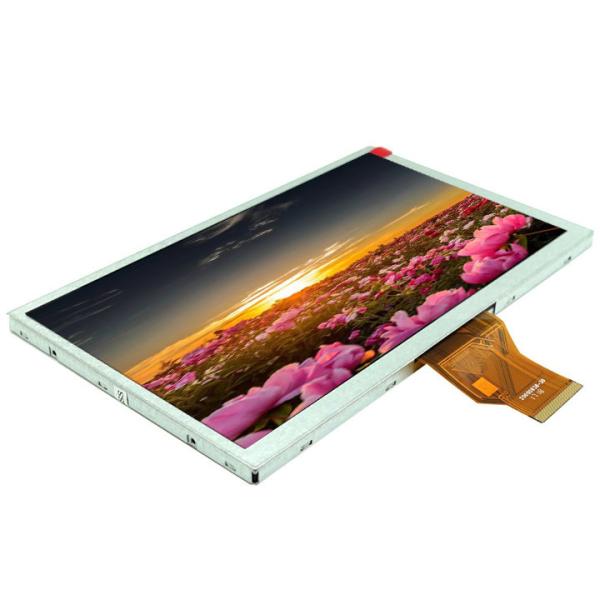

8 Inch ndustrial TFT Display 800x480 RGB 50 Pin LCD Module Display
8 Inch ndustrial TFT Display 800x480 RGB 50 Pin LCD Module Display
8 Inch ndustrial TFT Display 800x480 RGB 50 Pin LCD Module Display
8 Inch ndustrial TFT Display 800x480 RGB 50 Pin LCD Module Display
8 Inch ndustrial TFT Display 800x480 RGB 50 Pin LCD Module Display
8 Inch ndustrial TFT Display 800x480 RGB 50 Pin LCD Module Display
Specifications
Brand Name :
AISON
Model Number :
Z080TN64
Certification :
ISO9001 / ISO14000/ROHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
10~20usd/pc
Payment Terms :
T/T
Supply Ability :
200k/month
Delivery Time :
7 working days
Packaging Details :
Blister Package/Carton
Product :
8 Inch TFT Display
Display Resolution :
800x480
Outline dimension :
192.8*116.9*6.4mm
Active area :
176.64 x 99.36mm
Interface Type :
24 Bit RGB
Brightness :
350cd/m2
View Direction :
12 o'clock
Operating temp :
-20 to 70 degree
Storage temp :
-30 to 80 degree
Description

8 Inch ndustrial TFT Display 800x480 RGB 50 Pin LCD Module Display

Display General Description

The Z080TN64 is an 8 inch TFT LCD display module with a resolution of 800x480 pixels, an aspect ratio of 16:9, a brightness of 350 nits (typical value), and a contrast ratio of 500:1. The module has an active area size of 176.64 x 99.36 mm and an outline dimension of 192.80 x 116.90 mm. The display uses EK9713 and EK73002 driver ICs, supporting 24-bit RGB interfaces.

The supply voltage range for the analog is from 3.0V to 3.6V (typical 3.3V), and the module can operate within a wide temperature range of -20°C to +70°C. The Z080TN64 is a high-quality TFT LCD display module that offers excellent display performance and durability, making it an ideal choice for a wide range of applications, including industrial control systems, medical devices.

General Data

Model Name 8 inch TFT LCD Display Module
Resolution 800X480
Model Size (W*H*T)mm 192.8*116.9*6.4mm
Display Area (W*H)mm
176.64 x 99.36mm
Interface 24 bit RGB
Display Mode Normally White TN,Transmissive
Viewing 12:00 o'clock
Brightness 350 cd/m2
Pin number 50
Drive IC EK9713 + EK73002
BACKLIGHT TYPE 27 WHITE LED
Operating temperatures -20 to 70 degree
Storage temperatures -30 to 80 degree

Drawing

8 Inch ndustrial TFT Display 800x480 RGB 50 Pin LCD Module Display

Product Details

8 Inch ndustrial TFT Display 800x480 RGB 50 Pin LCD Module Display8 Inch ndustrial TFT Display 800x480 RGB 50 Pin LCD Module Display

TFT Applications

This TFT LCD module is versatile and suitable for a wide range of applications:
Including embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices. Its adaptability and compatibility make it an excellent choice for a wide range of projects.

8 Inch ndustrial TFT Display 800x480 RGB 50 Pin LCD Module Display
