AGCD-185D II B VP Screw Air Compressor, Specifically Designed for Factory Energy-Saving Retrofits; Two-Stage Compression Saves 30%+ on Electricity Costs
AGCD-185D II B VP Screw Air Compressor, Specifically Designed for Factory Energy-Saving Retrofits; Two-Stage Compression Saves 30%+ on Electricity Costs
AGCD-185D II B VP Screw Air Compressor, Specifically Designed for Factory Energy-Saving Retrofits; Two-Stage Compression Saves 30%+ on Electricity Costs
AGCD-185D II B VP Screw Air Compressor, Specifically Designed for Factory Energy-Saving Retrofits; Two-Stage Compression Saves 30%+ on Electricity Costs
AGCD-185D II B VP Screw Air Compressor, Specifically Designed for Factory Energy-Saving Retrofits; Two-Stage Compression Saves 30%+ on Electricity Costs
AGCD-185D II B VP Screw Air Compressor, Specifically Designed for Factory Energy-Saving Retrofits; Two-Stage Compression Saves 30%+ on Electricity Costs
AGCD-185D II B VP Screw Air Compressor, Specifically Designed for Factory Energy-Saving Retrofits; Two-Stage Compression Saves 30%+ on Electricity Costs
AGCD-185D II B VP Screw Air Compressor, Specifically Designed for Factory Energy-Saving Retrofits; Two-Stage Compression Saves 30%+ on Electricity Costs
Specifications
Payment Terms :
TT/LC,Western Union,D/P,D/A
Cooling type :
Air cooling
Air capacity（m3/min） :
11.16~43.85
Price :
Negotiable
Working Pressure :
0.7~1.3MPa
Driven type :
Direct driven
Model Number :
AGCD-185II VP
MOQ :
1 unit
Delivery Time :
5-15 days
Supply Ability :
2,000-3,000 per month
Motor power :
185KW
Packaging Details :
wooden case
Brand Name :
AIRERA
Certification :
ISO、CE、TUV
Place of Origin :
made in China
Description
AIRERA AGCD-185D II B VP Screw Air Compressor for Energy-Saving Retrofits: Two-Stage VFD Matrix, Saving 30%+ on Electricity Costs

The AIRERA AGCD-185D II B VP screw air compressor is a energy-control powerhouse engineered exclusively for large-scale factory energy transitions and system retrofits. Addressing the common points of legacy air networks—namely high energy consumption and wasteful frequent unloading—this model seamlessly integrates cutting-edge two-stage compression technology with high-precision Variable Frequency Drive (VP) control.

The machine monitors subtle airflow fluctuations within the plant's piping network in real time, precisely adjusting output to eliminate idling energy waste. Compared to traditional, aging single-stage units, it drives a comprehensive electricity cost reduction of over 30%. With its exceptional ROI and rock-solid reliability, it stands as the definitive upgrade solution to help large manufacturers slash exorbitant power bills and achieve low-carbon, smart transformations.

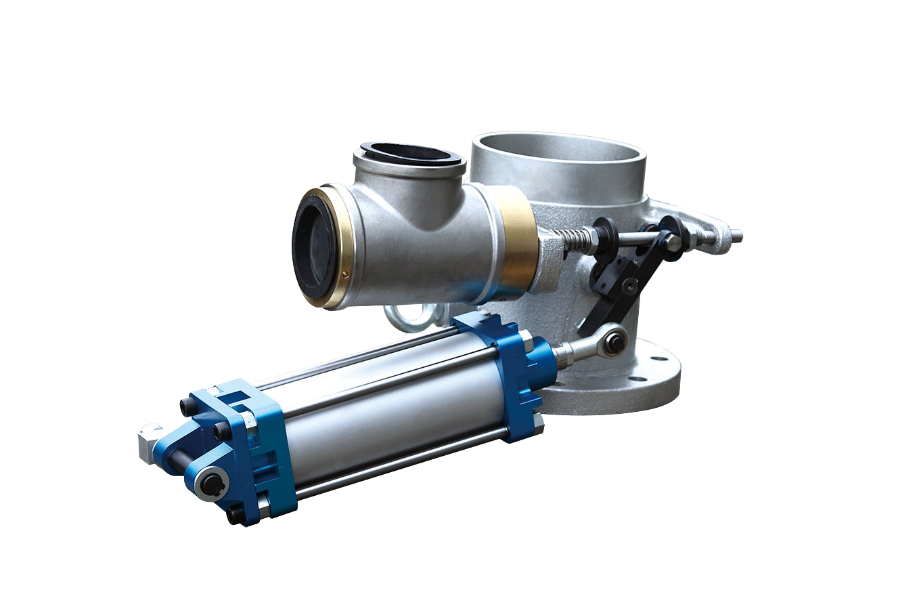

  • Reliable hydraulic intake valve

The high-efficiency intake valve adopts hydraulic control, which makes the work more stable and reliable, avoids the regular replacement of pneumatic components, and reduces unnecessary downtime and maintenance costs.


AGCD-185D II B VP Screw Air Compressor, Specifically Designed for Factory Energy-Saving Retrofits; Two-Stage Compression Saves 30%+ on Electricity Costs

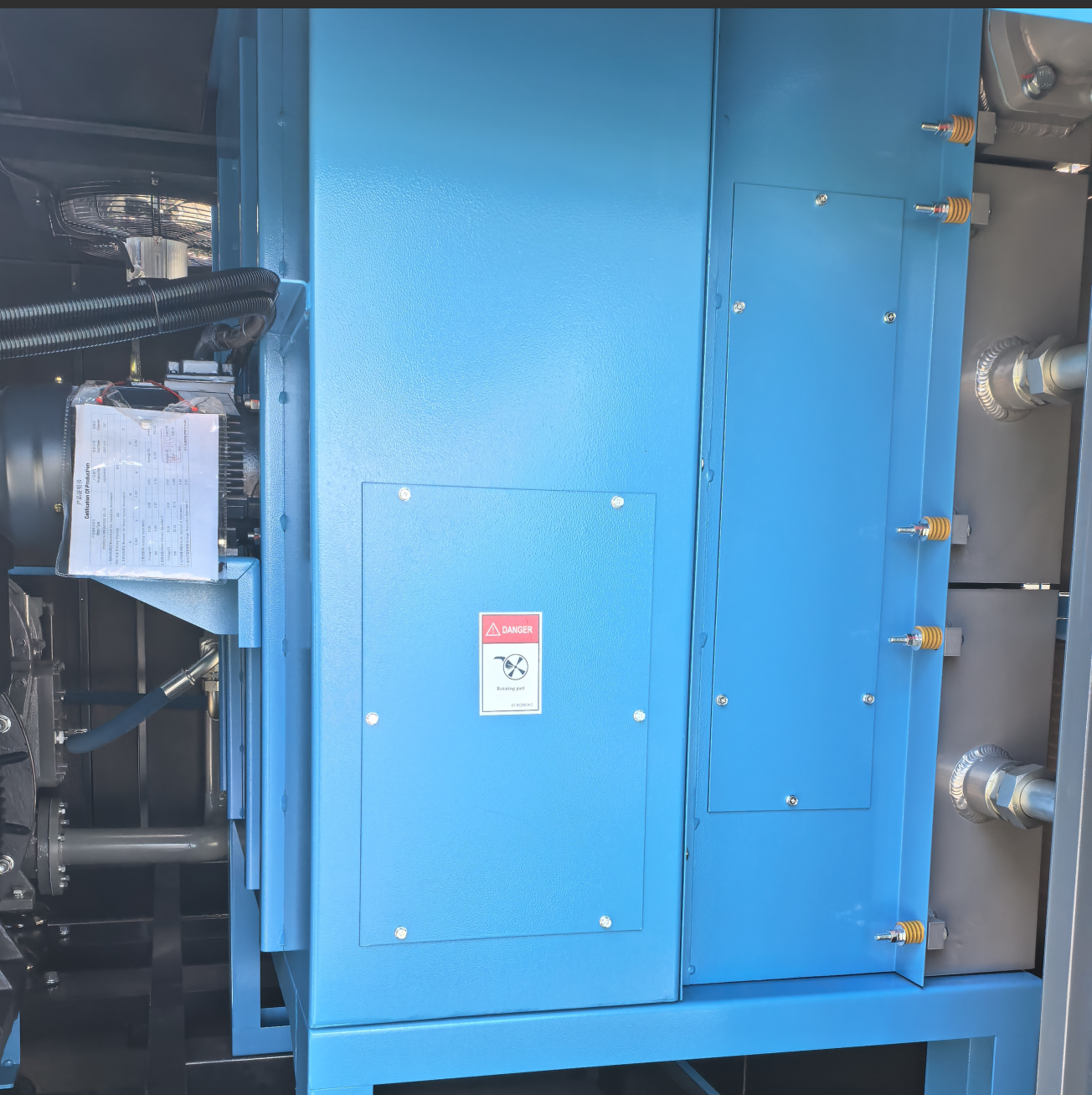

  • Efficient after cooler

The cooler adopts a new type of threaded finned tube shell-and-tube heat exchanger, and the compressed air goes inside the tube. The advantages are as follows: a. The compressed air goes through the tube, which improves the pressure bearing capacity compared with the outer finned tube.


AGCD-185D II B VP Screw Air Compressor, Specifically Designed for Factory Energy-Saving Retrofits; Two-Stage Compression Saves 30%+ on Electricity Costs


  • Independent air intake system

Independent air intake ensures that the intake air temperature is equal to the ambient temperature. Large-capacity air filter is used to achieve better filtering effect, lower intake pressure loss, and energy saving and high efficiency. Maintenance and replacement are more convenient.

AGCD-185D II B VP Screw Air Compressor, Specifically Designed for Factory Energy-Saving Retrofits; Two-Stage Compression Saves 30%+ on Electricity Costs


Technical Specifications -AGCD-185II VP Diesel Portable Compressor
AGCD-185II VP Diesel Portable Compressor Parameters
ITEM UNIT MODEL AGCD-185II VP
Air capacity m³/min 17.54-43.85|15.80-39.50|13.06-32.90|11.16-27.90
Working pressure MPa 0.7~1.3
Compressor type
Oil inject dual stage screw compressor
Cooling type

Air cooling
Driven type
Direct driven
Inlet status Temperature ℃ ≤45
Inlet status Pressure MPa Atmospheric pressure
Inlet status Relative humidity
≤90%
Noise Level dB(A) ≤79
Residual oil content ppm ≤2
Drive rotor speed rpm 1500
Compressed air outlet temperature ℃ Ambient temperature＋10
Cooling air flow m3/hr 16200
Control mode
Intelligent controller
Safety valve set pressure MPa 0.77-1.43
Lubricating oil volume L 110
Lubricating oil brand
ROTORCOMP
Compressed air outlet connection
DN80
Dimension L mm 3150
Dimension W mm 1800
Dimension H mm 2100
Net Weight kg 2800
Motor Model
YPM-315L1-8
Motor Speed rpm 1500
Motor Rated Power KW 185
Motor Service factor
1.2
Motor Protection type
IP55
Motor Efficiency
IE3
Motor Startup mode
Frequency conversion starting
Motor Voltage V 80-200
Motor Frequency Hz 50
Motor Rated current A 338
Motor Weight of motor kg 1460
AGCD-185D II B VP Screw Air Compressor, Specifically Designed for Factory Energy-Saving Retrofits; Two-Stage Compression Saves 30%+ on Electricity Costs
CALT AGCD-185II VP Diesel Portable Compressor: Frequently Asked Questions (FAQ)
The headline claims "Saving 30%+ on electricity costs." How is this remarkable energy-saving effect achieved on the AGCD-185D II B VP model?

This is achieved through the powerful combination of "two-stage compression" and "intelligent Variable Frequency Drive (VP)." First, the two-stage air end inherently saves 10% to 15% of energy compared to traditional single-stage models. Second, the built-in high-precision VFD control system adjusts the motor speed in real time based on actual factory air demand, completely eliminating the power waste caused by the frequent "idling" of legacy compressors. Additionally, the VFD soft-start prevents current spikes during startup. This two-pronged approach delivers a comprehensive energy saving of over 30% in factory retrofits.

Many legacy factories have complex pipe networks with aging and air leaks. How does this energy-saving retrofit model handle such complex legacy pipeline conditions?
The AGCD-185D II B VP is specifically engineered to tackle such harsh conditions. Its VFD system possesses exceptional constant-pressure control capabilities, adjusting air delivery with microsecond-level response speeds to keep pipeline pressure fluctuations within $pm 0.01 text{ MPa}$. Even if the legacy network suffers from pressure instability due to production line changes, it replenishes air precisely to ensure a constant pressure for downstream equipment. This effectively reduces precision equipment alarms caused by pressure drops while avoiding excessive energy consumption from over-pressurization.
Factories undergoing energy-saving retrofits care most about ROI. Roughly how long will it take to recoup the investment cost of introducing this 185 kW-class equipment?

For high-power equipment like a 185 kW unit, electricity accounts for over 80% of its total lifecycle cost. If a factory replaces an aging single-stage compressor that runs 16 to 24 hours a day with this model, a 30% energy saving translates to hundreds of thousands of yuan in annual power bill reductions. Under most heavy-use conditions, enterprises can fully recoup the machine's retrofit cost within 12 to 18 months purely through energy savings, turning subsequent operations into pure financial return.
