AGCD-560D II B VP Quiet Air Compressor for Pharmaceutical Cleanrooms—Two-Stage Permanent Magnet Screw Compressor for Clean Air Supply
AGCD-560D II B VP Quiet Air Compressor for Pharmaceutical Cleanrooms—Two-Stage Permanent Magnet Screw Compressor for Clean Air Supply
AGCD-560D II B VP Quiet Air Compressor for Pharmaceutical Cleanrooms—Two-Stage Permanent Magnet Screw Compressor for Clean Air Supply
AGCD-560D II B VP Quiet Air Compressor for Pharmaceutical Cleanrooms—Two-Stage Permanent Magnet Screw Compressor for Clean Air Supply
AGCD-560D II B VP Quiet Air Compressor for Pharmaceutical Cleanrooms—Two-Stage Permanent Magnet Screw Compressor for Clean Air Supply
AGCD-560D II B VP Quiet Air Compressor for Pharmaceutical Cleanrooms—Two-Stage Permanent Magnet Screw Compressor for Clean Air Supply
AGCD-560D II B VP Quiet Air Compressor for Pharmaceutical Cleanrooms—Two-Stage Permanent Magnet Screw Compressor for Clean Air Supply
AGCD-560D II B VP Quiet Air Compressor for Pharmaceutical Cleanrooms—Two-Stage Permanent Magnet Screw Compressor for Clean Air Supply
Specifications
Payment Terms :
TT/LC,Western Union,D/P,D/A
Air capacity（m3/min） :
33.92~119.90
Working Pressure :
0.7~1.3MPa
Price :
Negotiable
Driven type :
Direct driven
Motor power :
560KW
Model Number :
AGCD-560II VP
MOQ :
1 unit
Delivery Time :
5-15 days
Supply Ability :
2,000-3,000 per month
Cooling type :
Air cooling
Packaging Details :
wooden case
Certification :
ISO、CE、TUV
Place of Origin :
made in China
Brand Name :
AIRERA
Description

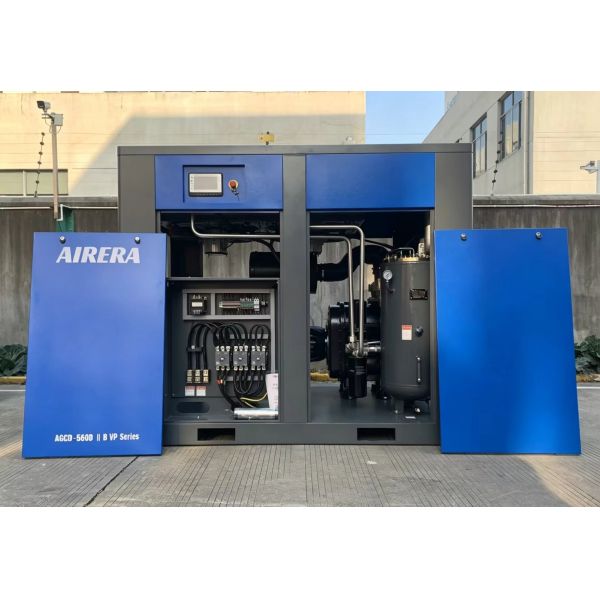

AIRERA AGCD-560D II B VP Quiet Two-Stage PM VSD Screw Compressor for Pharma Cleanrooms

The AIRERA AGCD-560D II B VP stands as a premium aerodynamic solution specifically engineered for pharma cleanrooms. Utilizing advanced two-stage compression paired with a highly efficient Permanent Magnet Variable Speed Drive (PM VSD) system, it delivers a massive supply of clean air while maximizing energy savings. Its specialized acoustic enclosure significantly reduces operational noise, fostering a quiet and stable environment for demanding pharma manufacturing lines. As the ideal choice for GMP-compliant air systems, this compressor eliminates contamination at the source, fully safeguarding the purity, safety, and superior quality of medicine production.

  • Industry-leading air host

The air compression chamber is completely separated from the oil chamber. The air side adopts a non-abrasive sealing system with a spring-loaded metal ring, and the lubricating oil side adopts a non-abrasive sealing system with a copper labyrinth seal. The two do not contact.


AGCD-560D II B VP Quiet Air Compressor for Pharmaceutical Cleanrooms—Two-Stage Permanent Magnet Screw Compressor for Clean Air Supply

  • Advanced and reliable electronic control system

Large-size color LCD touch screen, with a good human-machine communication interface, the touch screen has anti-mistouch and sleep functions;Completely monitor various parameters of the machine, including voltage detection, three-phase unbalance detection, overvoltage, overtemperature, etc., without special supervision;configure the Internet of Things, you can check the operating status of the unit on the mobile phone.Independent air duct design, suitable for various working conditions.


AGCD-560D II B VP Quiet Air Compressor for Pharmaceutical Cleanrooms—Two-Stage Permanent Magnet Screw Compressor for Clean Air Supply


  • Independent air intake system

Independent air intake ensures that the intake air temperature is equal to the ambient temperature. Large-capacity air filter is used to achieve better filtering effect, lower intake pressure loss, and energy saving and high efficiency. Maintenance and replacement are more convenient.

AGCD-560D II B VP Quiet Air Compressor for Pharmaceutical Cleanrooms—Two-Stage Permanent Magnet Screw Compressor for Clean Air Supply


Technical Specifications -AGCD-560II VP Diesel Portable Compressor
AGCD-560II VP Diesel Portable Compressor Parameters
ITEM UNIT MODEL AGCD-560II VP
Air capacity m³/min 47.96-119.9|46.28-115.7|37.40-93.50|33.92-84.80
Working pressure MPa 0.7~1.3
Compressor type
Oil inject dual stage screw compressor
Cooling type

Air cooling
Driven type
Direct driven
Inlet status Temperature ℃ ≤45
Inlet status Pressure MPa Atmospheric pressure
Inlet status Relative humidity
≤90%
Noise Level dB(A) ≤79
Residual oil content ppm ≤2
Drive rotor speed rpm 1500
Compressed air outlet temperature ℃ Ambient temperature＋10
Cooling air flow m3/hr 26200
Control mode
Intelligent controller
Safety valve set pressure MPa 0.77-1.43
Lubricating oil volume L 200
Lubricating oil brand
ROTORCOMP
Compressed air outlet connection
DN200
Dimension L mm 4500
Dimension W mm 2500
Dimension H mm 2200
Net Weight kg 13500
Motor Model
YEVP-500L2-4
Motor Speed rpm 1500
Motor Rated Power KW 560
Motor Service factor
1.2
Motor Protection type
IP55
Motor Efficiency
IE3
Motor Startup mode
Frequency conversion starting
Motor Voltage V 380(Special on request)
Motor Frequency Hz 25-50
Motor Rated current A 1005
Motor Weight of motor kg 2950
AGCD-560D II B VP Quiet Air Compressor for Pharmaceutical Cleanrooms—Two-Stage Permanent Magnet Screw Compressor for Clean Air Supply
CALT AGCD-560II VP Diesel Portable Compressor: Frequently Asked Questions (FAQ)

How does this air compressor ensure that the delivered air is completely free of oil contamination?

This model utilizes advanced oil-free separation technology combined with multi-stage high-efficiency filtration. It guarantees that the discharged compressed air meets Class 0 oil-free standards while effectively capturing micro-dust and bacteria, ensuring the air supply perfectly aligns with the hygienic requirements of biotech and medical supplies production.

How is its continuous operational stability in high-load pharma manufacturing lines?

Extremely stable. Equipped with AIRERA’s industrial-grade PM motor and heavy-duty two-stage air end, this model features an excellent cooling system and low bearing load design. It supports 24/7 continuous full-load operation, effectively eliminating the risk of downtime caused by air supply failures.

What conveniences does the intelligent control system of this equipment bring to workshop management?

Smart management is a major highlight. The built-in intelligent control panel monitors discharge pressure, temperature, and energy consumption data in real time, supporting remote joint control and fault pre-warnings. This allows cleanroom operators to easily achieve digital monitoring without entering the site frequently.
