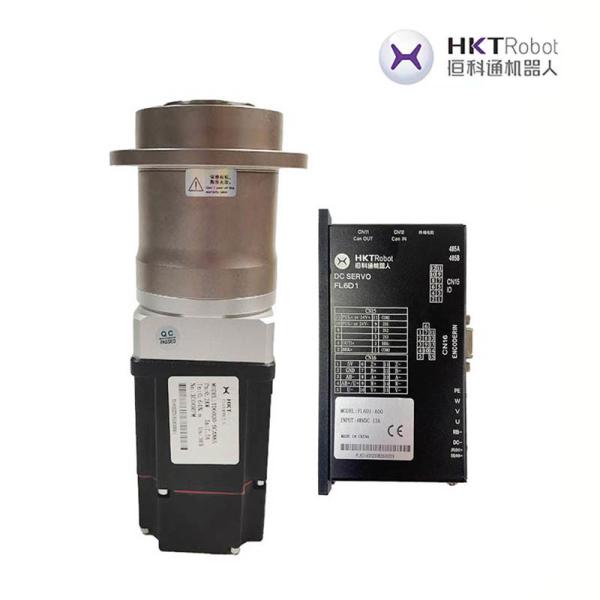

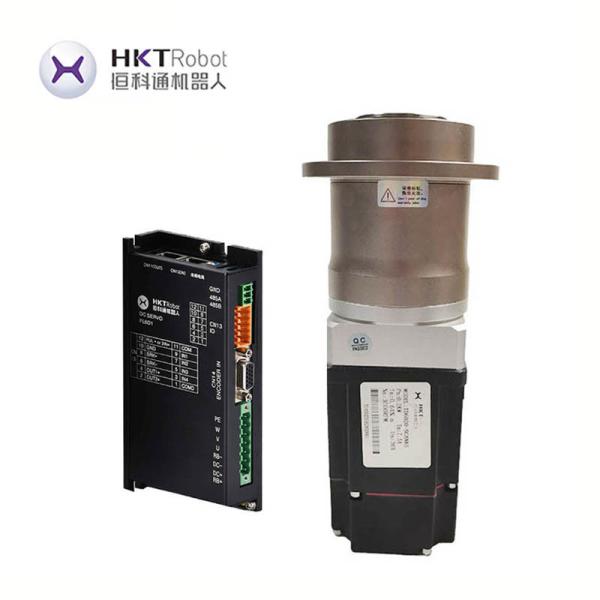

Industrial Servo AGV Drive System Encoder 500N
Industrial Servo AGV Drive System Encoder 500N
Industrial Servo AGV Drive System Encoder 500N
Industrial Servo AGV Drive System Encoder 500N
Specifications
Brand Name :
AGV-Robot
Model Number :
FL6D1 6020-LH064A-L2
Place of Origin :
China
Certification :
CE
MOQ :
1
Price :
Negotiable
Packaging Details :
Carton
Delivery Time :
1-4weeks
Payment Terms :
T/T
Encoder :
Absolute Value
Flange Size :
60*60mm
Max Axial Force :
390N
Rated Power :
200W
Brake :
With Brake
Max Radial Force :
500N
Description

Powerful Encoder for Industrial Applications Max Radial 500N and Max Axial 390N

Product Description:

The AGV Drive System is a perfect choice for robotic applications that require reliable movement with great precision. It provides a maximum radial force of 500N, max axial force of 390N, and a rated power of 200W. It is equipped with brake and an absolute value encoder to ensure accurate and reliable performance. The AGV drive system is designed to move with extreme precision and accuracy while maintaining a quiet and smooth operation.

Features:

1.Efficiency: They are highly efficient in power transmission, minimizing energy loss during operation and contributing to energy savings.


2.Low Backlash: Planetary reducers are designed to have minimal backlash, ensuring accurate and repeatable movements.


3.Precision Control: These drives offer precise control over motor speed and position, making them ideal for applications that require high accuracy and responsiveness.


4.Compatibility: They are compatible with a wide range of motors, allowing for flexibility in design and application.


5.Safety Features: Many low-voltage servo drives come with built-in safety features, such as overcurrent protection and fault detection, enhancing overall system safety.

Technical Parameters:

Servo Planetary Gearbox:

Model Unit Stages Ratios Nominal torquet Tn Maxiumum efficengy
HKTLH064A NM 2 9 19.5 92%
12 31.5
16 31.5
20 31.5
25 33.5
28 31.5
35 33.5
40 31.5
50 33.5
70 24

AGV Drive Motor:

Property Value
Rated Current 6.5A
Rated Speed 3000rpm
Supply Voltage DC 48V
Rated Torque 0.64Nm
Brake Brake
Encoder Absolute Value
Rated Power 200W
Number of Pole Pairs 5 Poles
Flange Size 60*60mm

Low Voltage Servo Drive:

Parameter Value
Supply Voltage 24-60VDC
Power 400W
Rated Current 11A
Peak Current 33A
Encoder Absolute and Incremental Encoder
Communication Protocol CANopen Modbus/RS485
Installation Aperture 5mm
