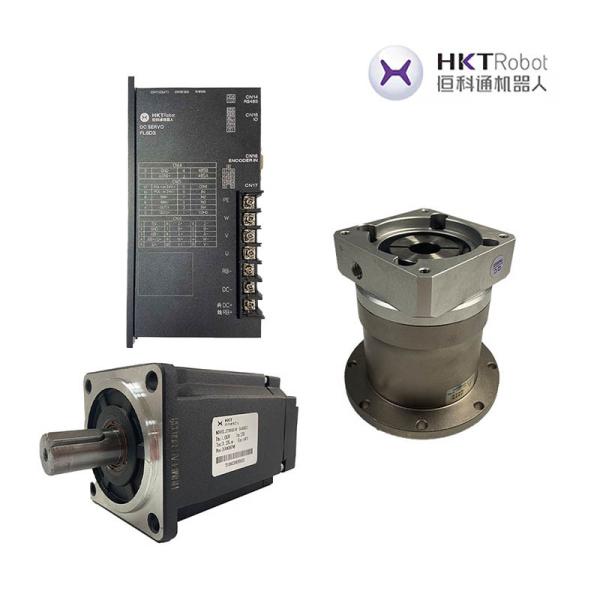

Industrial AGV Servo Motor Drive System Flange Size 80x80mm 1050N
Industrial AGV Servo Motor Drive System Flange Size 80x80mm 1050N
Industrial AGV Servo Motor Drive System Flange Size 80x80mm 1050N
Industrial AGV Servo Motor Drive System Flange Size 80x80mm 1050N
Specifications
Brand Name :
AGV-Robot
Model Number :
FL6D2 80100-LH090A-L1
Place of Origin :
China
Certification :
CE
MOQ :
1
Price :
Negotiable
Packaging Details :
Carton
Delivery Time :
1-4weeks
Payment Terms :
T/T
Brake :
No Brake
Encoder :
Incremental
Max Radial Force :
1050N
Max Axial Force :
850N
Flange Size :
80*80mm
Rated Power :
1000W
Description

AGV Drive System Flange Size 80*80mm with Max Radial Force 1050N for Industrial

Product Description:

The AGV Drive System is an efficient and reliable automated guidance vehicle solution designed for industrial and commercial applications. It is composed of a powerful motor with flange size of 80*80mm, a brakeless system, and an incremental encoder.

It provides a maximum axial force of 1050N and a rated power of 1000W, which enables it to move with smooth, precise and dynamic motion.

Features:

1.AGV drive system adopts mature and reliable AGV special steering wheel drive system, with independent steering motor control, accurate steering, can adapt to the operation of the road surface high and low potholes, so as to ensure stable operation according to the route.

2.The whole system is highly integrated, and provides rich external data interface, with good expansion and upgrade ability and adaptability to different application environments.

Technical Parameters:

Servo Planetary Gearbox:

Model Unit Stages Ratios Nominal torquet Tn Maxiumum efficengy
HKTLH090A NM 1 3 63 94%
4 90
5 100
7 68
10 43

AGV Drive Motor:

Property Value
Rated Current 25A
Rated Speed 3000rpm
Supply Voltage DC 48V
Rated Torque 3.2Nm
Brake No Brake
Encoder Incremental
Rated Power 1000W
Number of Pole Pairs 5 Poles
Flange Size 80*80mm
Max radial force 1050N
Max Axial Force 850N

Low Voltage Servo Drive:

Parameter Value
Peak Current 33A
Rated Current 11A
Power 1000W
Communication Protocol CANopen Modbus/RS485
Encoder Absolute and Incremental Encoder
Supply Voltage 24-60VDC
Installation Aperture 5mm
