Specifications
Brand Name :
AGV-Robot
Model Number :
FL6D2-8075-LH090A-L2
Place of Origin :
China
Certification :
CE
MOQ :
1
Price :
Negotiable
Packaging Details :
Carton
Delivery Time :
1-4weeks
Payment Terms :
T/T
Brake :
With Brake
Max Axial Force :
1100N
Rated Power :
750W
Max Radial Force :
1300N
Flange Size :
80*80mm
Encoder :
Incremental
Description

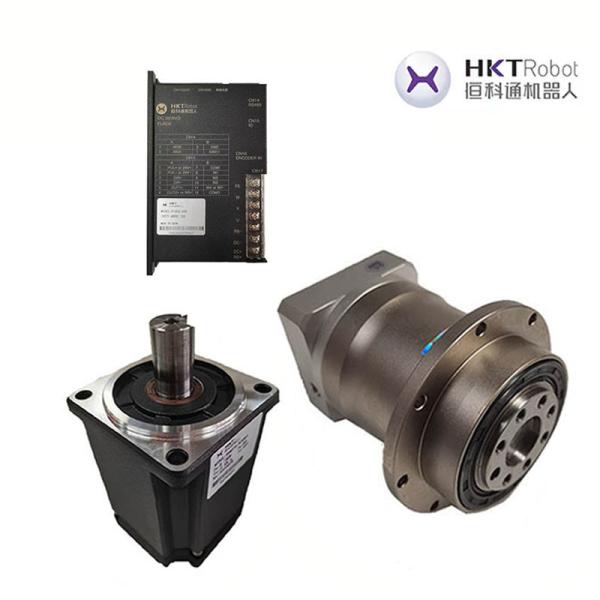

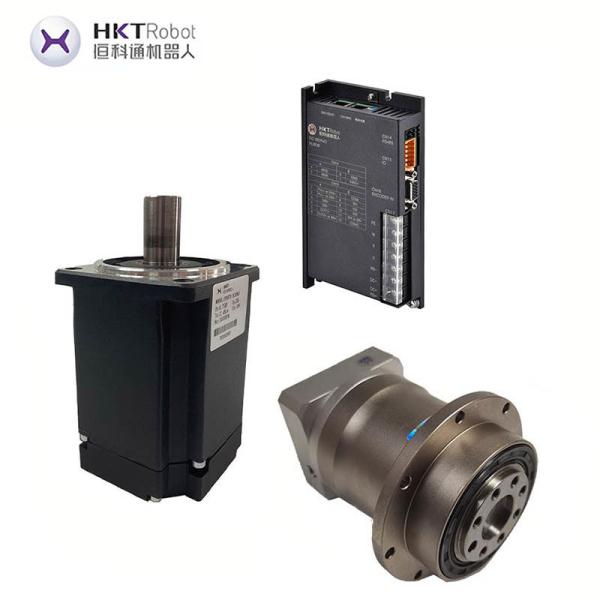

AGV Drive System with Max Axial Force 1100N 80*80mm Flange Size with Brake

Product Description:

The AGV Drive System is an innovative product designed to meet the needs of industrial automation. It features a flange size of 80*80mm, a rated power of 750W, a maximum radial force of 1300N and a maximum axial force of 1100N, all while providing with a brake. This drive system stands out from conventional solutions thanks to its high-rated power and flange size, making it an ideal choice for a wide variety of applications.

Features:

1. The AGV Drive System has overload protection, overheating protection and other functions, which can protect the motor and system from damage.


2. Various types of reducers: There are different types of reducers, such as gear reducers, worm reducers, planetary reducers, etc., which are suitable for different application scenarios.


3. The motor can adapt to different sizes and types of loads, from small drives to large industrial machinery.

Technical Parameters:

Servo Planetary Gearbox:

Model Unit Stages Ratios Nominal torquet Tn Maxiumum efficengy
HKTLH090A NM 2 9 75 92%
12 110
16 110
20 110
25 120
28 110
35 120
40 110
50 120
70 81

AGV Drive Motor:

Property Value
Rated Current 20A
Rated Speed 3000rpm
Supply Voltage DC 48V
Rated Torque 2.38Nm
Brake With Brake
Encoder Incremental
Rated Power 750W
Number of Pole Pairs 5 Poles
Flange Size 80*80mm
Max radial force 1300N
Max Axial Force 1100N

Low Voltage Servo Drive:

Parameter Value
Peak Current 33A
Rated Current 11A
Power 1000W
Communication Protocol CANopen Modbus/RS485
Encoder Absolute and Incremental Encoder
Supply Voltage 24-60VDC
Installation Aperture 5mm
