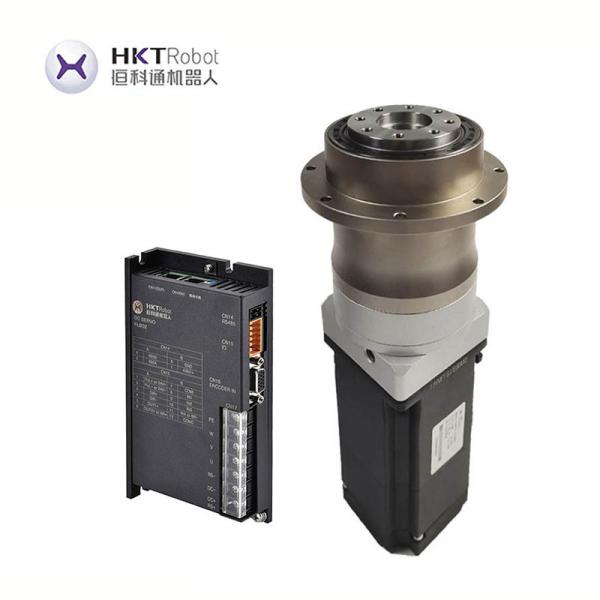

750 Watt CANopen AGV Drive System DC Motor 850N 5 Poles
750 Watt CANopen AGV Drive System DC Motor 850N 5 Poles
750 Watt CANopen AGV Drive System DC Motor 850N 5 Poles
750 Watt CANopen AGV Drive System DC Motor 850N 5 Poles
Specifications
Brand Name :
AGV-Robot
Model Number :
FL6D2 8075-LH090A-L1
Place of Origin :
China
Certification :
CE
MOQ :
1
Price :
Negotiable
Packaging Details :
Carton
Delivery Time :
1-4weeks
Payment Terms :
T/T
Encoder :
Incremental
Max Radial Force :
1050N
Max Axial Force :
850N
Brake :
No Brake
Flange Size :
80*80mm
Rated Power :
750W
Description

Efficient AGV Drive System Max Axial Force 850N No Brake

Product Description:

AGV Drive System is an innovative product, designed for maximum efficiency and performance. It features a powerful 750W rated power, 80*80mm flange size, 1050N max radial force, and 850N max axial force. This drive system offers an encoder feedback system with no brake, making it a reliable and efficient choice for any application. This drive system also features a highly durable construction, able to withstand long-term use and harsh environmental factors. With its advanced technology and superior performance, AGV Drive System is the ideal choice for any application.

Features:

1.Incorporates advanced lubrication systems that ensure optimal lubrication of gears and bearings, further contributing to extended lifespan and reduced maintenance requirements.

2. Designed to work seamlessly with different types of drive systems, providing versatility and adaptability to various AGV setups.

3.The drive system should be designed to handle the specific terrain and operating environment, whether it's a smooth factory floor or rough outdoor terrain.

Technical Parameters:

Servo Planetary Gearbox:

Model Unit Stages Ratios Nominal torquet Tn Maxiumum efficengy
HKTLH090A NM 1 3 63 94%
4 90
5 100
7 68
10 43

AGV Drive Motor:

Property Value
Rated Current 20A
Rated Speed 3000rpm
Supply Voltage DC 48V
Rated Torque 2.38Nm
Brake No Brake
Encoder Incremental
Rated Power 750W
Number of Pole Pairs 5 Poles
Flange Size 80*80mm

Low Voltage Servo Drive:

Parameter Value
Peak Current 33A
Rated Current 11A
Power 1000W
Communication Protocol CANopen Modbus/RS485
Encoder Absolute and Incremental Encoder
Supply Voltage 24-60VDC
Installation Aperture 5mm
