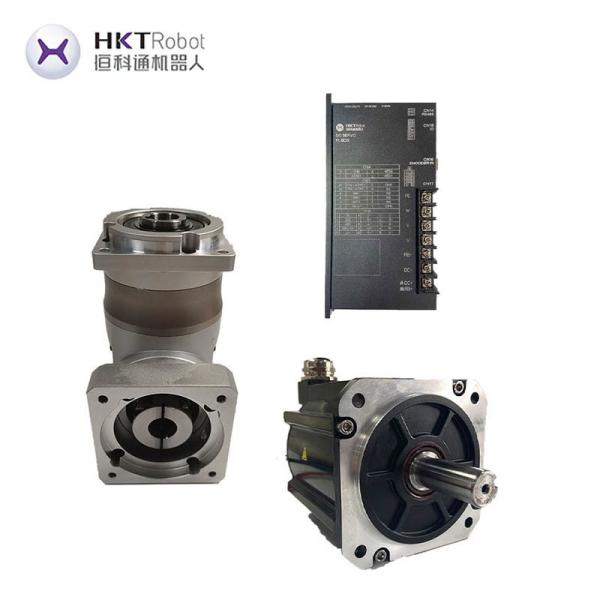

OEM AGV Drive Servo Motor With Integrated Controller 60A
OEM AGV Drive Servo Motor With Integrated Controller 60A
OEM AGV Drive Servo Motor With Integrated Controller 60A
OEM AGV Drive Servo Motor With Integrated Controller 60A
Specifications
Brand Name :
AGV-Robot
Model Number :
FL6D3 130150-ZK115A-L1
Place of Origin :
China
Certification :
CE
MOQ :
1
Price :
Negotiable
Packaging Details :
Carton
Delivery Time :
1-4weeks
Payment Terms :
T/T
Brake :
No Brake
Rated Power :
1500W
Encoder :
Incremental
Max Axial Force :
1700N
Flange Size :
130*130mm
Max Radial Force :
4400N
Description

AGV Drive System with Incremental Encoder Rated Currrent 60A without Brake

Product Description:

AGV Drive System is an advanced solution for efficient and reliable transportation of goods. It comes with a rated power of 1500W, which provides a maximum radial force of 4400N. It is equipped with an Incremental encoder, which ensures accurate and precise movement of the vehicle. The flange size of 130*130mm provides a robust and stable platform for transportation. AGV Drive System is perfect for industrial or commercial applications, and its high-quality components guarantee smooth and efficient operation.

Features:

1.The drive system features adaptive control capabilities, allowing it to dynamically respond to changing environmental conditions by rerouting AGVs or adjusting their speeds to maintain operational efficiency.

2.The system's energy-efficient design not only extends battery life but also reduces environmental impact by minimizing energy consumption.

3.By automating material transportation and logistics, the AGV drive system enhances productivity, reduces operational costs, and allows employees to focus on higher-value tasks.

Technical Parameters

Servo Planetary Gearbox:

Model Unit Stages Ratios Nominal torquet Tn Maxiumum efficengy
HKTZK115A NM 1 3 155 94%
4 230
5 245
7 165
10 95

AGV Drive Motor:

Property Value
Model Number TD130150-MCBNK5
Brake No Brake
Rated Power 1500W
Encoder Incremental
Rated Current 60A
Supply Voltage DC 48V
Flange Size 130*130mm
Rated Speed 3000rpm
Number of Pole Pairs 5 Poles
Rated Torque

5Nm

Low Voltage Servo Drive:

Parameter Specification
Model Number FL6D3Z1-A00
Rated Current 60A
Communication Protocol CANopen Modbus/RS485
Supply Voltage 24-60VDC
Power 2000W
Encoder Absolute and Incremental Encoder
Peak Current 120A
Installation Aperture 5mm
