Custom Servo Control AGV Drive System 2200N No Brake
Custom Servo Control AGV Drive System 2200N No Brake
Custom Servo Control AGV Drive System 2200N No Brake
Custom Servo Control AGV Drive System 2200N No Brake
Specifications
Brand Name :
AGV-Robot
Model Number :
FL6D3 130150-LF115A-L1
Place of Origin :
China
Certification :
CE
MOQ :
1
Price :
Negotiable
Packaging Details :
Carton
Delivery Time :
1-4weeks
Payment Terms :
T/T
Brake :
No Brake
Flange Size :
130*130mm
Encoder :
Absolute Value
Max Radial Force :
2200N
Rated Power :
1500W
Max Axial Force :
1600N
Description

AGV Drive Systemwith Max Radial Force 2200N No Brake

Product Description:

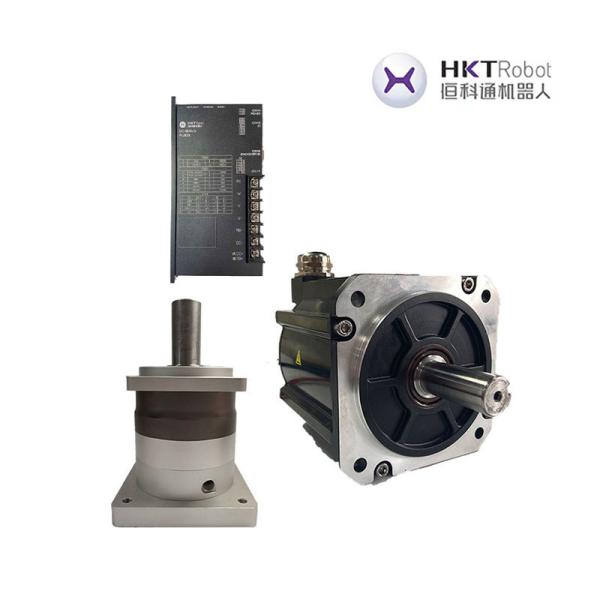

The AGV Drive System is a powerful and reliable robot drive system that is designed to meet the needs of a wide range of applications. Its rated power is 1500W and is capable of delivering a maximum radial force of 2200N. The drive system includes a flange size of 130*130mm and an encoder with absolute value for precise motion control. Furthermore, it does not require a brake, which adds to its efficiency. The AGV Drive System is the perfect choice for AGV robot applications due to its superior performance and reliability.

Features:

1,The drive system should be designed to handle the specific terrain and operating environment, whether it's a smooth factory floor or rough outdoor terrain.

2,Simplified integration: Integrated solutions usually have simpler electrical and mechanical integration, reducing the time and workload of installation and commissioning.

3,Quality assurance: Components from the same supplier usually follow the same quality standards and certifications to ensure product reliability and durability.

4,AGV drive systems are scalable to meet the needs of various industries and applications. Whether you require a single AGV or a fleet of them, the drive systems can be configured accordingly.

Technical Parameters:

Servo Planetary Gearbox:

Model Unit Stages Ratios Nominal torquet Tn Maxiumum efficengy
HKTLF115A NM 1 3 155 94%
4 230
5 245
7 165
10 95

AGV Drive Motor:

Property Value
Rated Current 60A
Rated Speed 3000rpm
Supply Voltage DC 48V
Rated Torque 5Nm
Brake No Brake
Encoder Absolute value
Rated Power 1500W
Number of Pole Pairs 5 Poles
Flange Size 130*130mm
Max radial force 2200N
Max Axial Force 1600N

Low Voltage Servo Drive:

Parameter Specification
Rated Current 60A
Communication Protocol CANopen Modbus/RS485
Supply Voltage 24-60VDC
Power 2000W
Encoder Absolute and Incremental Encoder
Peak Current 120A
Installation Aperture 5mm
