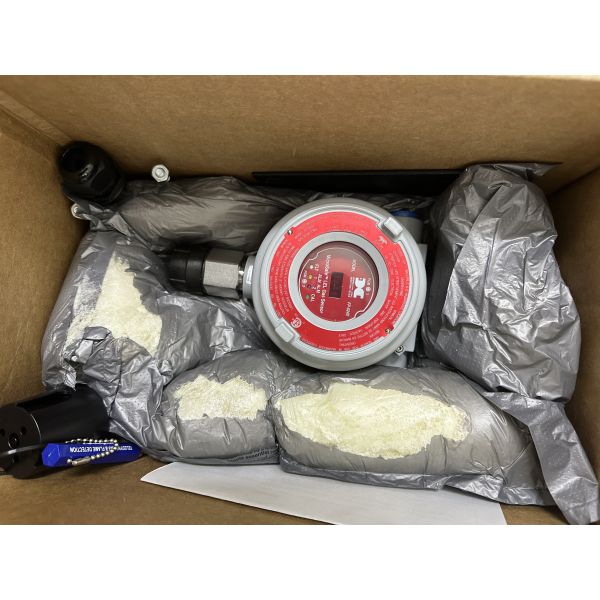

Teledyne Detcon FP-524D Gas Detector | 0-100% LEL, 4-20mA, Explosion Proof
Teledyne Detcon FP-524D Gas Detector | 0-100% LEL, 4-20mA, Explosion Proof
Teledyne Detcon FP-524D Gas Detector | 0-100% LEL, 4-20mA, Explosion Proof
Teledyne Detcon FP-524D Gas Detector | 0-100% LEL, 4-20mA, Explosion Proof
Teledyne Detcon FP-524D Gas Detector | 0-100% LEL, 4-20mA, Explosion Proof
Teledyne Detcon FP-524D Gas Detector | 0-100% LEL, 4-20mA, Explosion Proof
Teledyne Detcon FP-524D Gas Detector | 0-100% LEL, 4-20mA, Explosion Proof
Teledyne Detcon FP-524D Gas Detector | 0-100% LEL, 4-20mA, Explosion Proof
Teledyne Detcon FP-524D Gas Detector | 0-100% LEL, 4-20mA, Explosion Proof
Teledyne Detcon FP-524D Gas Detector | 0-100% LEL, 4-20mA, Explosion Proof
Specifications
Brand Name :
Teledyne Detcon
Model Number :
FP-524D
Certification :
ATEX
Place of Origin :
US
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,XT,ALIPAY
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Power Supply :
1
Ambient Temperature :
-
Electrical Rating :
G
Certifications :
S
Description

Teledyne Detcon FP-524D Gas Detector | 0-100% LEL, 4-20mA, Explosion Proof

Teledyne Detcon FP-524D fixed-point combustible gas transmitter. Catalytic bead sensor, 0-100% LEL range, 4-20mA/HART output, Class I Div 1, IP66.

Product Overview

The Teledyne Detcon FP-524D is a fixed-mount combustible gas transmitter​ designed for continuous monitoring of explosive atmospheres in hazardous locations. It utilizes a matched-pair catalytic bead sensor (MicroSafe™ design) for detecting a wide range of flammable gases and vapors from 0 to 100% LEL. The unit features a non-intrusive, menu-driven calibration interface, 4-digit LED display, and is housed in an explosion-proof (NEMA 4X) enclosure suitable for harsh industrial environments like oil & gas and chemical plants.

Technical Specifications (Gas Sensing & Performance)

Parameter

Specification

Manufacturer​

Teledyne Detcon

Model​

FP-524D

Detection Type​

Combustible Gas (% LEL)

Sensor Technology​

Matched-Pair Catalytic Bead

Measurement Range​

0 – 100 % LEL (Lower Explosive Limit)

Accuracy​

±3% (0-50% LEL), ±5% (50-100% LEL)

Response Time​

T50 < 10 sec, T90 < 30 sec

Warm-up Time​

< 2 minutes (typical)

Sensor Life​

3 – 5 years (typical)

Technical Specifications (Electrical & Mechanical)

Parameter

Specification

Power Supply​

12 – 28 V DC

Power Consumption​

< 3.5 W (typically ~1.7 W)

Output Signal​

4-20 mA linear (2-wire), Optional HART

Hazardous Area Approval​

Class I, Division 1, Groups B, C, D; ATEX Zone 1

Enclosure Rating​

NEMA 4X / IP66

Operating Temperature​

-40 °C to +40 °C / +75 °C (see datasheet)

Calibration​

Non-intrusive magnetic/menu (AutoSpan)

Display​

4-digit LED with status LEDs

Key Features

  • Explosion-Proof Construction:​ Certified for Class I Div 1 hazardous areas.

  • Smart Diagnostics:​ MicroSafe™ circuitry with fault monitoring (sensor failure, loop check).

  • Field-Replaceable Modules:​ Plug-in transmitter and sensor for easy maintenance.

  • Low Power Consumption:​ Suitable for remote solar-powered applications.

  • Long Sensor Life:​ Robust catalytic bead sensor resistant to poisoning.

Applications

  • Oil & gas wellheads and production facilities

  • Refineries and petrochemical plants

  • Wastewater treatment plants (digester gas)

  • Confined space entry monitoring

  • Pipeline compressor stations
