SICK WT100-2N1439 | Mini Photoelectric Sensor, 1.2m Range, NPN
SICK WT100-2N1439 | Mini Photoelectric Sensor, 1.2m Range, NPN
SICK WT100-2N1439 | Mini Photoelectric Sensor, 1.2m Range, NPN
SICK WT100-2N1439 | Mini Photoelectric Sensor, 1.2m Range, NPN
Specifications
Brand Name :
SICK
Model Number :
WT100-2N1439
Certification :
ATEX
Place of Origin :
CN
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,XT,ALIPAY
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Power Supply :
1
Ambient Temperature :
-
Electrical Rating :
G
Certifications :
S
Description

SICK WT100-2N1439 | Mini Photoelectric Sensor, 1.2m Range, NPN

SICK WT100-2N1439 miniature energetic reflex sensor. 10-30V DC, NPN output, 0-1.2m range, IP67, M3 mounting. Ideal for object detection in tight spaces.

Product Overview

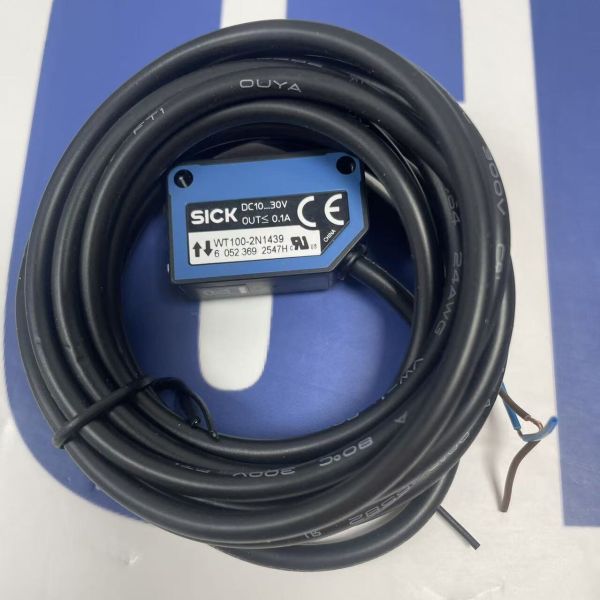

The SICK WT100-2N1439​ is a compact miniature photoelectric sensor​ from the W100-2 series. This energetic reflex sensor​ (direct reflection type) features a very small housing (11x31x20 mm) with a surprisingly long detection range of up to 1.2 meters. It operates on a 10-30V DC supply with an NPN transistor output​ and includes a potentiometer for sensitivity adjustment and a switch for light/dark operation selection. Its tiny size and M3 threaded mounting make it ideal for space-constrained automation applications.

Technical Specifications (Electrical & Functional)

Parameter

Specification

Manufacturer / Series​

SICK / W100-2

Model / Order No.​

WT100-2N1439 (6052369)

Sensor Principle​

Energetic Reflex (Direct Reflection)

Light Source​

Visible Red Light (LED, 632 nm)

Max. Detection Range​

1.2 m (90% white)

Operating Range​

0 – 750 mm (adjustable)

Supply Voltage​

10 – 30 V DC

Output Type​

NPN (Sourcing)

Switching Mode​

Light ON / Dark ON (Selectable)

Max. Output Current​

100 mA

Response Time​

≤ 0.5 ms

Technical Specifications (Mechanical & Environmental)

Parameter

Specification

Housing Dimensions (WxHxD)​

11 x 31 x 20 mm

Housing Material​

ABS/PC/POM (Black)

Lens Material​

PMMA

Protection Rating​

IP67

Mounting​

Integrated M3 Thread

Connection​

3-core PVC Cable (2 m)

Operating Temperature​

-25 °C to +55 °C

Storage Temperature​

-40 °C to +70 °C

Key Features

  • Miniature Size:​ Extremely compact (11mm width) for integration into tight machine spaces.

  • Long Range:​ Detects objects up to 1.2m away despite its small footprint.

  • Easy Setup:​ Features a potentiometer for sensitivity adjustment and a rotary switch for Light/Dark mode selection.

  • Robust Performance:​ IP67 rating protects against dust and temporary immersion, suitable for harsh industrial environments.

Applications

  • Object detection and counting on conveyors

  • Presence sensing in packaging machinery

  • Door and cover monitoring

  • Material handling and logistics automation
