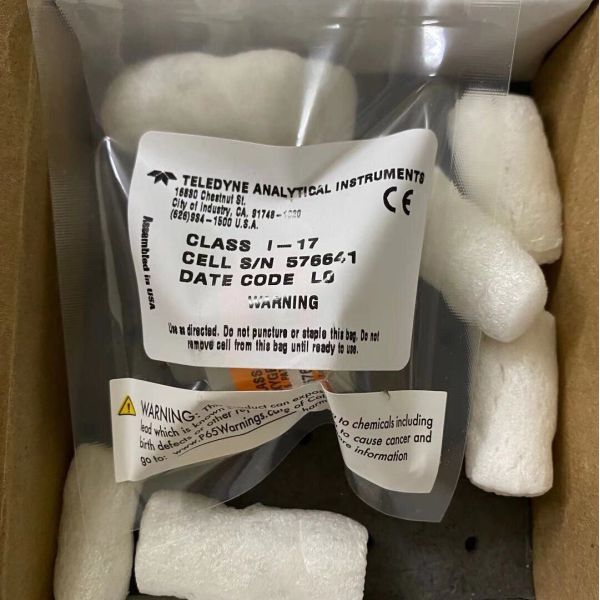

Teledyne CLASS I-17 | I-17 Micro-Fuel Cell Oxygen Sensor for Analyzers
Teledyne CLASS I-17 | I-17 Micro-Fuel Cell Oxygen Sensor for Analyzers
Teledyne CLASS I-17 | I-17 Micro-Fuel Cell Oxygen Sensor for Analyzers
Teledyne CLASS I-17 | I-17 Micro-Fuel Cell Oxygen Sensor for Analyzers
Teledyne CLASS I-17 | I-17 Micro-Fuel Cell Oxygen Sensor for Analyzers
Teledyne CLASS I-17 | I-17 Micro-Fuel Cell Oxygen Sensor for Analyzers
Specifications
Brand Name :
Teledyne
Model Number :
CLASS I-17
Certification :
ATEX
Place of Origin :
US
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,XT,ALIPAY
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Power Supply :
1
Ambient Temperature :
-
Electrical Rating :
G
Certifications :
S
Description

Teledyne CLASS I-17 | I-17 Micro-Fuel Cell Oxygen Sensor for Analyzers

Teledyne CLASS I-17 electrochemical micro-fuel cell oxygen sensor. Measures 0–100% O₂, used in portable & panel-mounted gas analyzers. 3-year life in air.

Product Overview

The Teledyne CLASS I-17​ is a patented micro-fuel cell (MFC) electrochemical sensor​ designed for measuring oxygen concentration​ in gas analysis applications. It is a maintenance-free, disposable transducer that produces a current output directly proportional to the partial pressure of oxygen. This sensor is commonly used as the sensing element in Teledyne GB300 portable oxygen analyzers​ and other panel-mounted instruments for monitoring gas purity and safety.

Technical Specifications (Electrical & Performance)

Parameter

Specification

Manufacturer / Series​

Teledyne Analytical Instruments / CLASS I

Model / Type​

CLASS I-17 (Micro-Fuel Cell)

Sensor Technology​

Electrochemical, Micro-Fuel Cell (MFC)

Measurement Range​

0 – 100 % O₂ (typical)

Output Signal​

Current (µA), proportional to O₂ partial pressure

Response Time (T90)​

< 10 seconds (for step change)

Accuracy​

±2% of Full Scale (under stable conditions)

Expected Service Life​

~36 months (in normal air operation)

Warm-Up Time​

< 2 minutes

Technical Specifications (Mechanical & Application)

Parameter

Specification

Housing Dimensions​

Ø 1.25 inch (31.75 mm) x 0.75 inch (19 mm) thick

Sensing Area​

Ø 0.7 inch (large area for reduced condensation error)

Electrical Connection​

2 concentric foil contacts (rear-mounted)

Operating Temperature​

0 °C to +45 °C (recommended)

Sample Flow Rate​

Unaffected by variations (diffusion-based)

Orientation​

Unaffected by shock, vibration, or position

Typical Application​

GB300 Portable Analyzer, 3190/3290 Series Analyzers

Key Features

  • Maintenance-Free Operation:​ Sealed, disposable design with no electrolytes to refill.

  • Oxygen-Specific:​ High specificity to O₂, minimal cross-sensitivity to other gases.

  • Large Sensing Area:​ Reduces errors caused by condensation in the sample stream.

  • True Zero:​ Requires no zero gas; reads zero in the absence of oxygen.

Applications

  • Portable oxygen analyzers (e.g., diving gas, medical oxygen)

  • Inert gas monitoring and purity verification

  • Industrial safety and process gas analysis

  • Laboratory gas mixture analysis

[citation:web2][citation:web5]

Teledyne CLASS I-17 | I-17 Micro-Fuel Cell Oxygen Sensor for Analyzers
