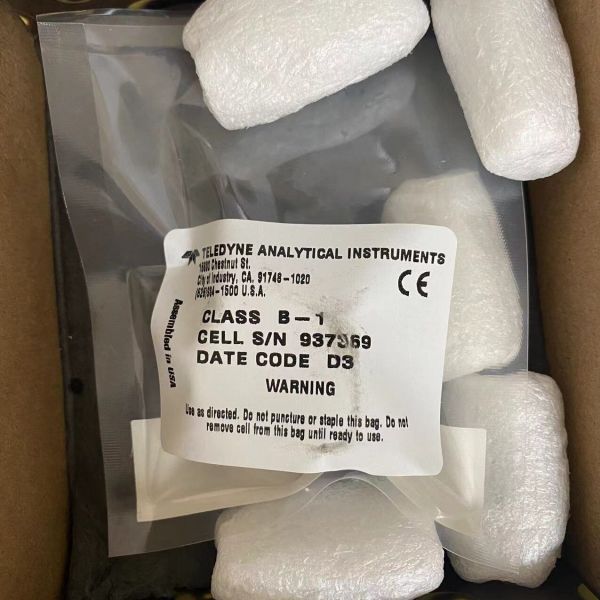

Teledyne CLASS B-1 | C06689-B1 Micro-Fuel Cell %O2 Sensor for Fast Response
Teledyne CLASS B-1 | C06689-B1 Micro-Fuel Cell %O2 Sensor for Fast Response
Teledyne CLASS B-1 | C06689-B1 Micro-Fuel Cell %O2 Sensor for Fast Response
Teledyne CLASS B-1 | C06689-B1 Micro-Fuel Cell %O2 Sensor for Fast Response
Teledyne CLASS B-1 | C06689-B1 Micro-Fuel Cell %O2 Sensor for Fast Response
Teledyne CLASS B-1 | C06689-B1 Micro-Fuel Cell %O2 Sensor for Fast Response
Teledyne CLASS B-1 | C06689-B1 Micro-Fuel Cell %O2 Sensor for Fast Response
Teledyne CLASS B-1 | C06689-B1 Micro-Fuel Cell %O2 Sensor for Fast Response
Specifications
Brand Name :
Teledyne
Model Number :
CLASS B-1
Certification :
ATEX
Place of Origin :
US
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,XT,ALIPAY
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Power Supply :
1
Ambient Temperature :
-
Electrical Rating :
G
Certifications :
S
Description

Teledyne CLASS B-1 | C06689-B1 Micro-Fuel Cell %O2 Sensor for Fast Response

Teledyne CLASS B-1 (P/N C06689-B1) micro-fuel cell oxygen sensor. Measures 0–25% O₂ with <10s response, ideal for combustion flue gas and safety analyzers.

Product Overview

The Teledyne CLASS B-1​ (Part Number C06689-B1) is a general-purpose electrochemical micro-fuel cell (MFC)​ designed for percent-level oxygen measurement​ in industrial gas analysis. It prioritizes fast response time​ over extended life, making it a standard choice for combustion efficiency monitoring, flue gas analysis, and portable safety instruments​ where rapid readings are critical.

Technical Specifications (Performance & Electrical)

Parameter

Specification

Manufacturer / Series​

Teledyne Analytical Instruments / CLASS B

Model / Part Number​

CLASS B-1 (C06689-B1)

Sensor Type​

Sealed Electrochemical Micro-Fuel Cell

Measurement Range​

0 – 25 % O₂ (Standard Calibration)

Output Signal​

Current (µA), proportional to O₂ partial pressure

Response Time (T90)​

< 10 seconds (typically ~7s for 90% FS)

Accuracy​

±2% of Full Scale (at constant temperature)

Expected Service Life​

~8 – 12 months (in normal air/combustion gas)

Technical Specifications (Mechanical & Environmental)

Parameter

Specification

Housing Dimensions​

Ø 1.25 inch (31.75 mm) × 0.75 inch (19 mm) thick

Sensing Area​

Ø 0.7 inch (Large area to minimize condensation error)

Electrical Connection​

2 concentric foil contacts (rear-mounted)

Operating Temperature​

0 °C to +50 °C (32°F to 122°F)

Sample Flow​

Diffusion-controlled (Unaffected by flow rate)

Warm-Up Time​

< 2 minutes

Key Application​

General %O₂ in flue gas, air, inert backgrounds

Key Features

  • Fast Response:​ Optimized for applications requiring quick O₂ level detection (e.g., combustion tuning).

  • Maintenance-Free:​ Sealed, disposable design with no electrolyte refilling required.

  • True Zero:​ Generates zero current in the absence of oxygen; requires no zero gas.

  • Flow Insensitive:​ Diffusion-based operation is unaffected by sample flow rate variations.

Applications

  • Combustion flue gas analyzers (boilers, furnaces)

  • Portable oxygen safety monitors

  • Industrial process gas %O₂ measurement

  • Laboratory gas mixture analysis

[citation:web2][citation:web5][citation:web6]
