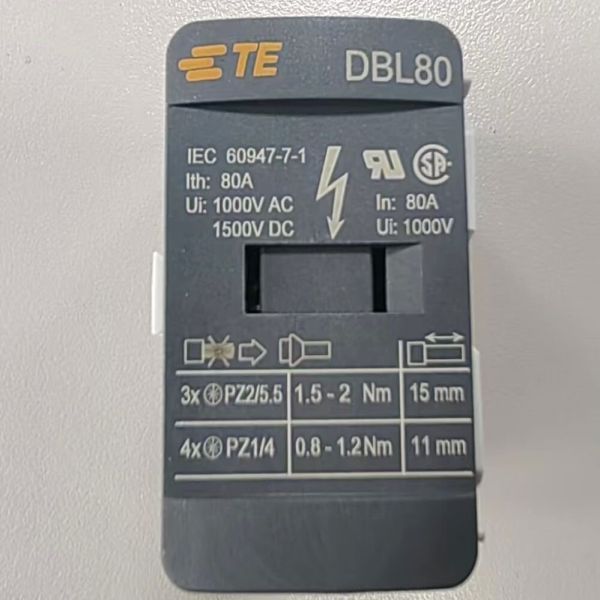

TE Connectivity DBL80 | 1SNL308010R0000 80A DIN Rail Power Distribution Block
TE Connectivity DBL80 | 1SNL308010R0000 80A DIN Rail Power Distribution Block
TE Connectivity DBL80 | 1SNL308010R0000 80A DIN Rail Power Distribution Block
TE Connectivity DBL80 | 1SNL308010R0000 80A DIN Rail Power Distribution Block
TE Connectivity DBL80 | 1SNL308010R0000 80A DIN Rail Power Distribution Block
TE Connectivity DBL80 | 1SNL308010R0000 80A DIN Rail Power Distribution Block
Specifications
Brand Name :
TE Connectivity
Model Number :
DBL80
Certification :
ATEX
Place of Origin :
IN
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,XT,ALIPAY
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Power Supply :
1
Ambient Temperature :
-
Electrical Rating :
G
Certifications :
S
Description

TE Connectivity DBL80 | 1SNL308010R0000 80A DIN Rail Power Distribution Block

TE Connectivity DBL80 (P/N 1SNL308010R0000) single-pole power distribution block. 80A, 1-in/6-out, 1000V AC / 1500V DC rating, for industrial control panels and solar PV combiner boxes.

Product Overview

The TE Connectivity DBL80​ (Part Number 1SNL308010R0000, formerly Entrelec) is a single-pole, 80A DIN rail power distribution block. It functions as a feed-through/splitter block​ designed to distribute a single high-current input to multiple output circuits​ (up to 6 loads) within industrial control panels, power supplies, and solar combiner boxes. It features screw clamp terminations and a compact design for efficient panel wiring.

Technical Specifications (Electrical & Ratings)

Parameter

Specification

Manufacturer / Brand​

TE Connectivity / Entrelec

Part Number / Model​

DBL80 (1SNL308010R0000)

Product Type​

Power Distribution Block (Feed-Through)

Rated Current (IEC/UL)​

80 A

Rated Voltage​

1000 V AC / 1500 V DC

Short-Circuit Current Rating​

100 kA

Peak Withstand Current​

27 kA

Power Loss​

2.56 W (at rated current)

Dielectric Strength​

2200 V

Technical Specifications (Mechanical & Wiring)

Parameter

Specification

Number of Circuits​

1 Input, 6 Outputs (7 positions total)

Termination Type​

Screw Clamp

Wire Range (Main)​

2.5 – 16 mm² (14 – 4 AWG)

Wire Range (Output)​

2.5 – 6 mm² (14 – 10 AWG)

Housing Material​

Polyamide (Grey), UL 94V-0

Mounting​

DIN Rail (TH35-15 / TH35-7.5)

Dimensions (H×W×D)​

66 × 28.4 × 50.2 mm

IP Rating​

IP20

Operating Temperature​

-55 °C to +110 °C

Key Features

  • Space-Saving Design:​ Compact footprint for high-density panel layouts.

  • High DC Voltage Rating:​ Supports up to 1500V DC, making it suitable for photovoltaic (PV) applications.

  • Multi-Tap Capability:​ Distributes one input to six output circuits, reducing wiring complexity.

  • High Short-Circuit Withstand:​ Robust construction for industrial environments.

Applications

  • Industrial control panel main power distribution

  • PLC and power supply feeder blocks

  • Solar PV combiner boxes and DC distribution

  • Machine tool electrical cabinets

[citation:web1][citation:web3][citation:web6]
