Schneider Electric LT4708M7S | TeSys LT47 Electronic Overcurrent Relay, 0.5-6A, 200-240V AC
Schneider Electric LT4708M7S | TeSys LT47 Electronic Overcurrent Relay, 0.5-6A, 200-240V AC
Schneider Electric LT4708M7S | TeSys LT47 Electronic Overcurrent Relay, 0.5-6A, 200-240V AC
Schneider Electric LT4708M7S | TeSys LT47 Electronic Overcurrent Relay, 0.5-6A, 200-240V AC
Specifications
Brand Name :
Schneider Electric
Model Number :
LT4708M7S
Certification :
ATEX
Place of Origin :
FR
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,XT,ALIPAY
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Power Supply :
1
Ambient Temperature :
-
Electrical Rating :
G
Certifications :
S
Description

Schneider Electric LT4708M7S | TeSys LT47 Electronic Overcurrent Relay, 0.5-6A, 200-240V AC

Schneider Electric LT4708M7S TeSys LT47 electronic overload relay. 0.5-6A adjustable range, 200-240V AC supply, 1NO+1NC contacts, manual reset, DIN rail mount for motor protection.

Product Overview

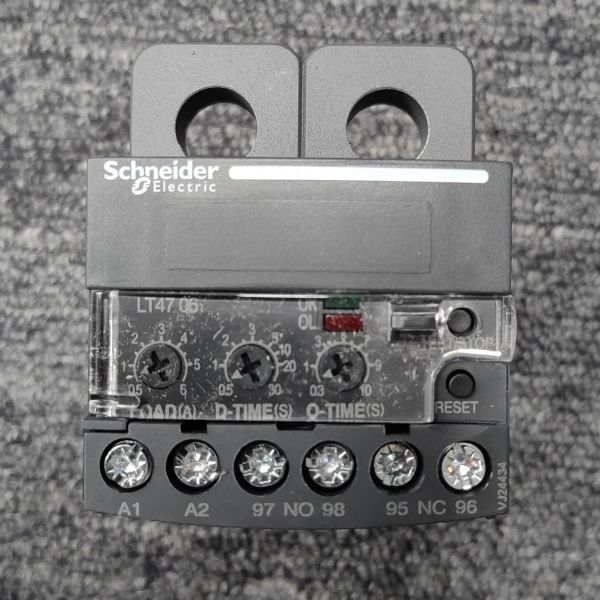

The Schneider Electric LT4708M7S​ is an electronic overcurrent relay​ from the TeSys LT47 series. It provides precise motor protection (overload, phase failure, locked rotor) for small motors. This unit operates with external current transformers (CTs)​ for isolation and features an adjustable current setting range of 0.5–6 A, making it suitable for protecting pumps, fans, and conveyors in industrial control panels.

Technical Specifications (Electrical & Protection)

Parameter

Specification

Manufacturer / Series​

Schneider Electric / TeSys LT47

Model / Part Number​

LT4708M7S

Product Type​

Electronic Overcurrent Relay (Motor Protection)

Rated Supply Voltage (Us)​

200 – 240 V AC (50/60 Hz)

Adjustable Current Setting (Ir)​

0.5 – 6 A​ (via front dial)

Protection Functions​

Overload (OL), Phase Failure, Locked Rotor

Tripping Class / Time​

Adjustable D-time (Start Delay): 0.5 – 30 s
Adjustable O-time (Overload): 0.3 – 10 s

Auxiliary Contacts​

1 NO + 1 NC​ (Signaling Circuit)

Rated Insulation Voltage (Ui)​

690 V AC (IEC 60947-4-1)

Technical Specifications (Mechanical & Environmental)

Parameter

Specification

Connection Method​

Screw Clamp Terminals

Control Wiring Range​

1.0 – 2.5 mm² (AWG 18-14)

Mounting​

DIN Rail (35 mm)

Dimensions (W×H×D)​

Approx. 71 × 70.3 × 77.2 mm

IP Rating​

IP20

Reset Type​

Manual (Push-button)

Operating Temperature​

-25 °C to +60 °C

Standards​

IEC 60947-4-1, UL 508, CSA C22.2

Key Features

  • CT-Based Sensing:​ Uses external current transformers for safe, isolated current measurement.

  • Triple Protection:​ Guards against overloads, phase loss, and mechanical jamming (locked rotor).

  • Visual Diagnostics:​ LED indicators (Run/Trip) for quick status checking.

  • Flexible Timing:​ Independent adjustment of start delay (D-time) and overload trip time (O-time).

Applications

  • Small AC motor protection in conveyor systems

  • Pump and fan motor control panels

  • Machine tool motor protection circuits

[citation:web1][citation:web2][citation:web3]
