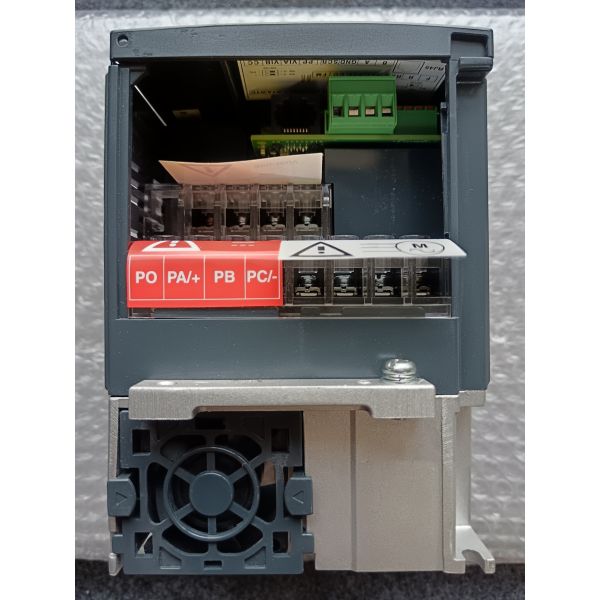

Schneider Electric ATV212HU22N4 | Altivar 212 2.2kW 3HP 380-480V VFD
Schneider Electric ATV212HU22N4 | Altivar 212 2.2kW 3HP 380-480V VFD
Schneider Electric ATV212HU22N4 | Altivar 212 2.2kW 3HP 380-480V VFD
Schneider Electric ATV212HU22N4 | Altivar 212 2.2kW 3HP 380-480V VFD
Specifications
Brand Name :
Schneider Electric
Model Number :
ATV212HU22N4
Certification :
ATEX
Place of Origin :
ID
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,XT,ALIPAY
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Power Supply :
1
Ambient Temperature :
-
Electrical Rating :
G
Certifications :
S
Description

Schneider Electric ATV212HU22N4 | Altivar 212 2.2kW 3HP 380-480V VFD

Schneider Electric ATV212HU22N4 Altivar 212 variable frequency drive. 2.2kW (3HP), 380-480V 3-phase input, 5.1A output, IP21, built-in EMC filter, Modbus/BACnet for HVAC pumps & fans.

Product Overview

The Schneider Electric ATV212HU22N4​ is a 2.2 kW (3 HP) variable frequency drive (VFD)​ from the Altivar 212 series. Designed specifically for HVAC applications​ (pumps, fans, compressors), it features a 380-480V 3-phase input, an integrated EMC filter, and built-in building automation protocols (Modbus, BACnet). Its compact chassis is optimized for variable torque loads in commercial building systems.[citation:web2][citation:web4][citation:web5]

Technical Specifications (Electrical & Performance)

Parameter

Specification

Manufacturer / Series​

Schneider Electric / Altivar 212

Model / Part Number​

ATV212HU22N4

Product Type​

Variable Frequency Drive (VFD)

Rated Motor Power​

2.2 kW (3 HP)

Rated Output Current​

5.1 A

Supply Voltage​

380 – 480 V AC, 3-Phase (323 – 528 V range)

Output Frequency Range​

0.5 – 200 Hz

Control Modes​

V/F, Sensorless Flux Vector (SVC), Quadratic V/F (Pump/Fan)

Overload Capacity​

120% for 60 seconds

Built-in EMC Filter​

Yes (Class C2)

Switching Frequency​

6 – 16 kHz (adjustable)

Technical Specifications (Control & Mechanical)

Parameter

Specification

I/O Configuration​

3 DI, 2 AI, 2 Relay Outputs, 1 AO

Communication Ports​

RS-485 (Modbus RTU), RJ45; Optional LonWorks card

Protocols​

Modbus, BACnet, METASYS N2, APOGEE FLN

IP Protection Rating​

IP21 (IP55 with kit)

Mounting​

Panel Mount (Vertical ±10°), optional DIN rail kit

Dimensions (W×H×D)​

107 × 143 × 150 mm

Operating Temperature​

-10 °C to +50 °C (derating above 40°C)

Standards & Certifications​

CE, UL, CSA, IEC 61800-3, RoHS

Key Features

  • HVAC-Optimized Algorithms:​ Pre-programmed functions for pumps & fans (sleep/wake, PID, fireman’s override).

  • Integrated Connectivity:​ Native support for building management systems via Modbus and BACnet.

  • Low Harmonics:​ C-less technology reduces input current distortion (THDi <35%) without external chokes.

  • Compact Design:​ Slim 107mm width saves panel space in crowded mechanical rooms.

Applications

  • Commercial building HVAC pumps (chilled water, condenser)

  • Ventilation fans and air handling units (AHUs)

  • Cooling tower fans and building automation systems

Schneider Electric ATV212HU22N4 | Altivar 212 2.2kW 3HP 380-480V VFD

More Products

Pepperl Fuchs Safety Barrier

Allen Bradley PLC Controllers

SICK Instruments

Festo Cylinder

IFM Sensors

About ACH

Founded in 2012, ACH is a top-tier distributor of industrial automation products, supplying genuine devices from leading brands like ABB, P+F, E&H, AB, MTL to emerging markets worldwide. Our mission is to provide 100% Genuine products at the most competitive prices, helping customers reduce costs and strengthen their market position.

Schneider Electric ATV212HU22N4 | Altivar 212 2.2kW 3HP 380-480V VFD
Frequently Ask & Questions
Are preferential prices available?

Long-term brand partners can get competitive product prices. At the same time, ACH controls the profit per order to 5%, providing the most competitive prices.

Are the Products Genuine OEM Units?

Yes, all products from ACH are certified genuine OEM units. We acquire our inventory through official OEM channels and trusted third-party suppliers, ensuring every item is authentic and reliable.

How will you arrange shipment?

We'll handle the shipping for you. Through our partnerships, we can secure competitive rates with major carriers like FedEx, DHL, TNT, and UPS, ensuring a smooth and cost-effective delivery.

What is the warranty of goods?

One-year Warranty.

How long is the logistics cycle of the product?

Products are divided into spot and futures, and the delivery period of different brands of products is also different. For details, please contact the ACH business manager.
