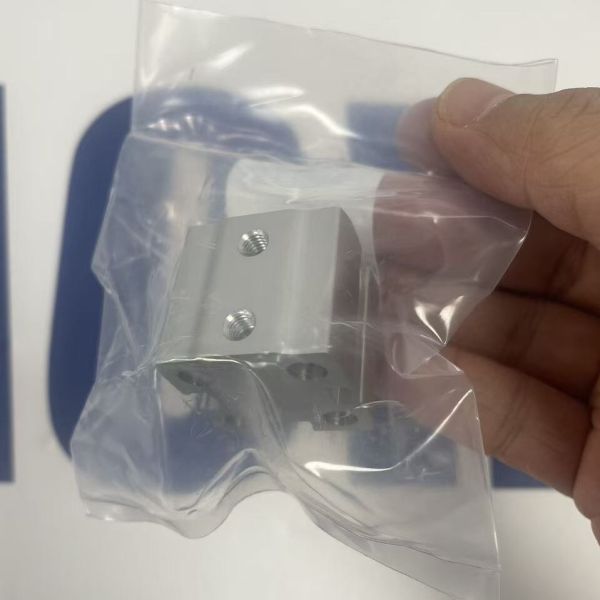

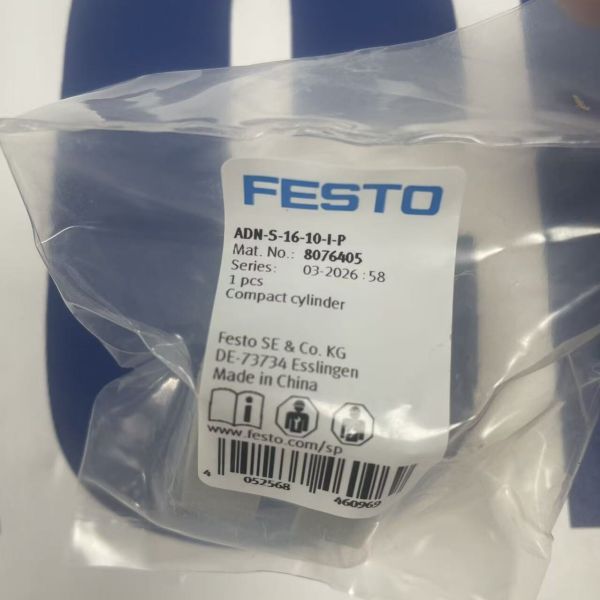

Festo ADN-S-16-10-I-P | 16mm Bore, 10mm Stroke, Double-Acting Cylinder
Festo ADN-S-16-10-I-P | 16mm Bore, 10mm Stroke, Double-Acting Cylinder
Festo ADN-S-16-10-I-P | 16mm Bore, 10mm Stroke, Double-Acting Cylinder
Festo ADN-S-16-10-I-P | 16mm Bore, 10mm Stroke, Double-Acting Cylinder
Festo ADN-S-16-10-I-P | 16mm Bore, 10mm Stroke, Double-Acting Cylinder
Festo ADN-S-16-10-I-P | 16mm Bore, 10mm Stroke, Double-Acting Cylinder
Specifications
Brand Name :
FESTO
Model Number :
ADN-S-16-10-I-P
Certification :
ATEX
Place of Origin :
CN
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,XT,ALIPAY
Supply Ability :
100pcs per month
Delivery Time :
Negotiable
Packaging Details :
carton
Power Supply :
1
Ambient Temperature :
-
Electrical Rating :
G
Certifications :
S
Description

Festo ADN-S-16-10-I-P | 16mm Bore, 10mm Stroke, Double-Acting Cylinder

Festo ADN-S-16-10-I-P compact pneumatic cylinder. 16mm bore, 10mm stroke, double-acting, with female thread (I) and elastic cushioning (P). Ideal for tight spaces.

Product Overview

The Festo ADN-S-16-10-I-P​ is a compact, double-acting pneumatic cylinder​ from the ADN-S series. Designed for applications with severe space constraints, it features a 16 mm piston diameter​ and a 10 mm stroke. Key characteristics include a female threaded piston rod (I)​ and elastic cushioning on both ends (P)​ for smooth deceleration. This cylinder is constructed from anodized aluminum alloy with a stainless-steel piston rod, making it suitable for general automation tasks requiring precise, short-stroke linear motion.

Technical Specifications (Mechanical & Functional)

Parameter

Specification

Manufacturer​

Festo

Series​

ADN-S (Compact Cylinder)

Article Number​

ADN-S-16-10-I-P​ (8076405)

Bore Size​

16 mm​

Stroke Length​

10 mm​

Piston Rod Thread​

Female Thread (I)​

Cushioning​

Elastic Cushioning Rings (P)​

Operating Mode​

Double-Acting

Mounting Type​

Through-hole / Female Thread

Pneumatic Connection​

M5 (Internal)

Technical Specifications (Performance & Environmental)

Parameter

Specification

Operating Pressure Range​

0.6 ... 10 bar​ (0.06 ... 1.0 MPa)

Theoretical Force (at 6 bar)​

~121 N (Advance), ~90 N (Return)

Operating Medium​

Compressed Air (per ISO 8573-1)

Operating Temperature​

0 °C ... +60 °C​

Housing Material​

Anodized Aluminum Alloy

Piston Rod Material​

Stainless Steel

Seals Material​

NBR (Standard)

Weight​

Approx. 32.5 g

Key Features

  • Space-Saving Design:​ The ADN-S series offers a shorter housing length and reduced width compared to standard cylinders, ideal for compact machinery.

  • Elastic Cushioning:​ Non-adjustable polymer cushioning rings at both ends reduce impact noise and wear without requiring manual adjustment.

  • Female Thread (I):​ The piston rod end features a female thread, providing flexibility for attaching custom tooling or accessories.

Applications

  • Small parts handling and positioning in assembly automation

  • Clamping, ejecting, and lifting mechanisms in confined spaces

  • Packaging machinery and pick-and-place systems
