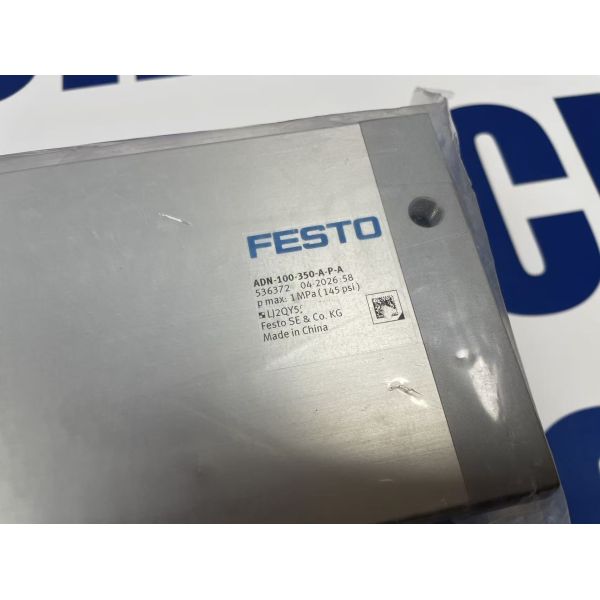

Festo ADN-100-350-A-P-A | 100mm Bore ISO 21287 Compact Cylinder

Festo ADN-100-350-A-P-A compact pneumatic cylinder. 100mm bore, 350mm stroke, double-acting, male piston rod thread, elastic cushioning, for proximity sensor.

Product Overview

The Festo ADN-100-350-A-P-A​ is a compact pneumatic cylinder​ compliant with ISO 21287​ standard. It features a 100 mm bore​ and 350 mm stroke, designed for space-saving automation applications. This variant is configured with a male piston rod thread (A)​ and elastic cushioning (P)​ on both ends. The piston incorporates a magnet for non-contact position sensing (A)​ via reed or inductive proximity sensors.

Technical Specifications (Dimensional & Mechanical)

Parameter

Specification

Series / Model​

ADN-100-350-A-P-A

Bore Size​

100 mm​

Stroke Length​

350 mm​

Piston Rod Thread​

Male Thread (A)​

Cushioning Type​

Elastic Cushioning Rings (P)​

Position Sensing​

With Magnet (for Sensor)​

Pneumatic Connection​

G1/8​ (BSPP)

Mounting Options​

Through-hole, Female thread, Accessories

Technical Specifications (Performance & Operating)

Parameter

Specification

Operating Mode​

Double-acting​

Operating Pressure​

0.6 ... 10 bar​

Theoretical Force @ 6 bar​

~4524 ... 4712 N

Ambient Temperature​

-20 ... +80 °C​ (Standard)

Operating Medium​

Compressed air (to ISO 8573-1)

Conforms to Standard​

ISO 21287​

Material (Barrel)​

Smooth-anodised wrought aluminium alloy

Key Features

  • Space-Saving Design:​ Compact profile compared to traditional ISO 15552 cylinders, saving up to 50% installation space.

  • Integrated Magnet:​ Piston magnet enables easy integration with proximity sensors for position feedback.

  • Elastic Cushioning:​ Self-adjusting end-position cushioning reduces impact noise and wear at stroke ends.

  • High Force Density:​ 100mm bore provides high thrust force in a compact form factor for pressing and clamping.

Applications

  • Machine Tool Automation:​ Clamping, lifting, and ejection mechanisms.

  • Packaging Machinery:​ Pusher and gate control systems.

  • Material Handling:​ Transfer unit actuators and indexing tables.
