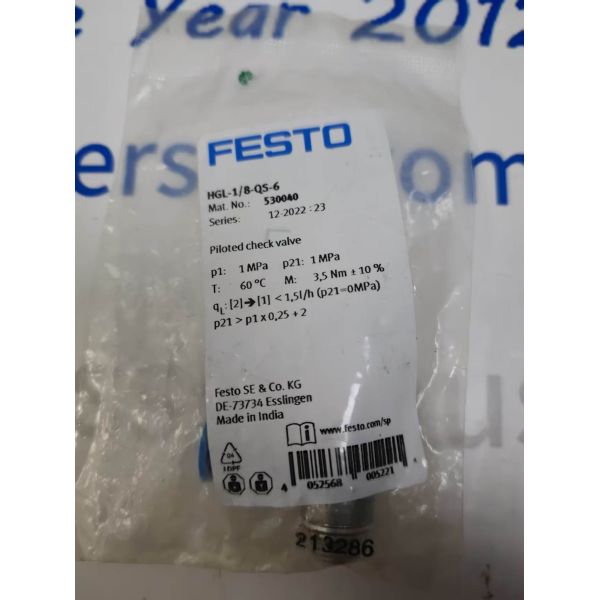

Festo HGL-1/8-QS-6 | G1/8 Meter-In Flow Control Valve, 6mm Tube
Festo HGL-1/8-QS-6 | G1/8 Meter-In Flow Control Valve, 6mm Tube
Festo HGL-1/8-QS-6 | G1/8 Meter-In Flow Control Valve, 6mm Tube
Festo HGL-1/8-QS-6 | G1/8 Meter-In Flow Control Valve, 6mm Tube
Festo HGL-1/8-QS-6 | G1/8 Meter-In Flow Control Valve, 6mm Tube
Festo HGL-1/8-QS-6 | G1/8 Meter-In Flow Control Valve, 6mm Tube
Specifications
Model Number :
HGL-18-QS-6
Brand Name :
FESTO
MOQ :
1
Delivery Time :
Negotiable
Payment Terms :
T/T,XT,ALIPAY
Ambient Temperature :
-
Supply Ability :
100pcs per month
Power Supply :
1
Price :
Negotiable
Electrical Rating :
G
Certification :
ATEX
Place of Origin :
IN
Packaging Details :
carton
Certifications :
S
Description
Festo HGL-1/8-QS-6 | G1/8 Meter-In Flow Control Valve, 6mm Tube
Festo HGL-1/8-QS-6 one-way flow control valve (meter-in). G1/8 female port, QS-6 push-in for Ø6mm tube, needle adj., free reverse flow, for supply-side speed control on pneumatic cylinders.

Product Overview

The Festo HGL-1/8-QS-6​ is a one-way flow control valve (meter-in type)​ from the HGL series, used to regulate the supply (pressurizing) flow​ to a double-acting pneumatic cylinder to control advance or retract speed. It features a G1/8" female threaded port​ for inline installation and a QS-6 push-in connector​ for 6 mm outside-diameter PU/nylon tubing. The valve allows full free-flow in the reverse direction and adjustable throttling in the metered direction via a knurled knob with lock nut.

Technical Specifications (Pneumatic & Performance)

Parameter
Specification
Model / Order Code​
HGL-1/8-QS-6​
Function​
One-Way Flow Control Valve (Meter-In / Supply Throttle)​
Port Size (Threaded End)​
G1/8"​ (BSP Parallel Female)
Tube Connection (Push-In End)​
QS-6​ — accepts Ø6 mm​ Pneumatic Tubing (PU / Nylon)
Flow Adjustment​
Needle Type, continuously variable
Free-Flow Direction​
From Push-In → Threaded Port (full open, no restriction)
Metered Direction​
Threaded Port → Push-In (adjustable restriction)
Operating Pressure​
0.2 … 10 bar​
Operating Medium​
Compressed Air (lubricated or non-lubricated per ISO 8573-1)
Flow Rate (Typical Qₘₐₓ)​
~250–400 L/min (depending on setting — reference: Festo data sheet)

Technical Specifications (Mechanical & Environmental)

Parameter
Specification
Mounting Style​
Inline — screws onto cylinder port, manifold, or tee; tube pushes in opposite end
Body / Knob Material​
Nickel-plated Brass / PBT (Plastic Knob)
Seal Material​
NBR (Standard)
Ambient Temperature​
-10 … +60 °C​
Positive Locking Nut​
Yes — prevents inadvertent setting change from vibration
Conforms to​
DIN / ISO Pneumatic Symbol (One-Way Throttle)
Weight (Approx.)​
~45 g

Key Features

  • Meter-In (Supply) Throttle:​ Installed on the cylinder supply port​ — regulates how fast air fills the cylinder chamber. Note: for best double-acting cylinder control, meter-out (exhaust throttle — LRLL series)​ is generally preferred to avoid stick-slip; meter-in is used when exhaust is open or for single-acting cylinders.
  • Push-In Tube Release:​ Quick-connect/disconnect for Ø6 mm tubing — simply push tube in; lift collet to remove. No tools for tubing.
  • Lockable Adjustment:​ Knurled knob with integrated lock nut secures the flow setting against vibration.
  • Free-Flow Check:​ Unrestricted reverse flow ensures no back-pressure builds when air is exhausting from the metered side.

Applications

  • Single-Acting Cylinder Speed:​ Controlling extend speed of spring-return cylinders (only one direction needs throttling).
  • Supply-Side Regulation:​ Where process dictates meter-in (e.g., soft-start or when exhaust is separately metered).
  • Air Motor / Tool Feed:​ Regulating supply air to air motors, vacuum generators, or blow guns.
  • Retrofit / OEM:​ Direct screw-in on G1/8 cylinder ports or manifold branches with Ø6 mm supply tubing.
Note: For meter-out (exhaust throttling — recommended for double-acting cylinders), use the LRLL-1/8-QS-6​ (same G1/8 + QS-6 but opposite flow direction). For other tube sizes: QS-4 (Ø4 mm), QS-8 (Ø8 mm), QS-10 (Ø10 mm) are also available in the HGL-1/8-QS-x family. Always confirm application requirement — meter-out usually gives smoother motion on double-acting cylinders.
