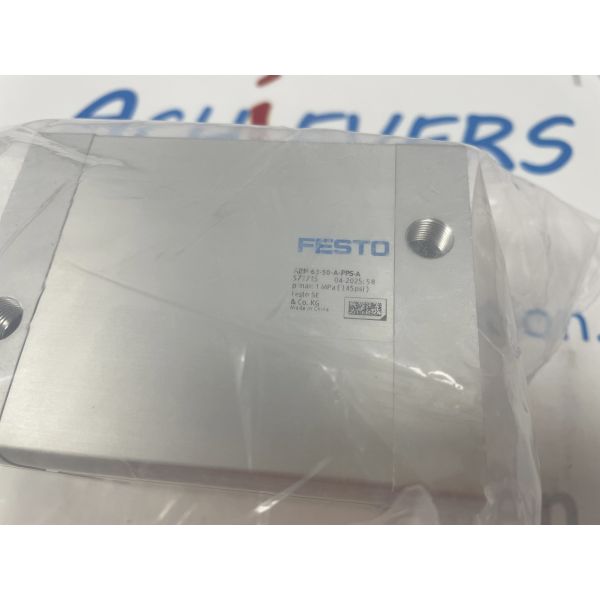

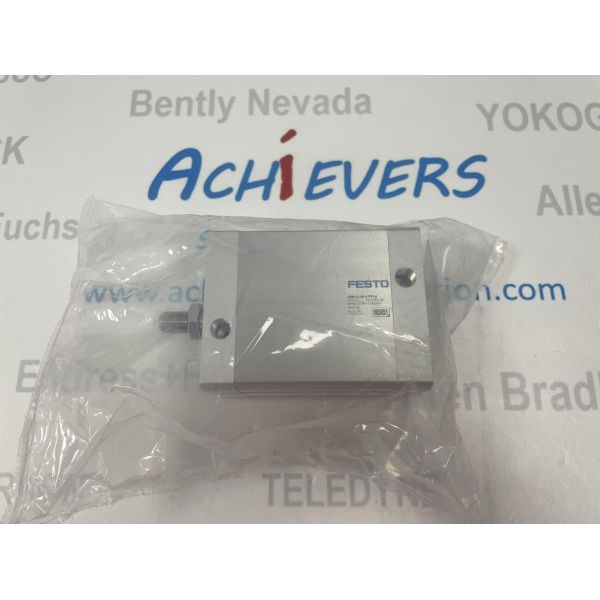

Festo ADN-63-50-A-PPS-A | ISO 21287 Compact Cylinder 63mm Bore 50mm Stroke
Festo ADN-63-50-A-PPS-A | ISO 21287 Compact Cylinder 63mm Bore 50mm Stroke
Festo ADN-63-50-A-PPS-A | ISO 21287 Compact Cylinder 63mm Bore 50mm Stroke
Festo ADN-63-50-A-PPS-A | ISO 21287 Compact Cylinder 63mm Bore 50mm Stroke
Festo ADN-63-50-A-PPS-A | ISO 21287 Compact Cylinder 63mm Bore 50mm Stroke
Festo ADN-63-50-A-PPS-A | ISO 21287 Compact Cylinder 63mm Bore 50mm Stroke
Festo ADN-63-50-A-PPS-A | ISO 21287 Compact Cylinder 63mm Bore 50mm Stroke
Festo ADN-63-50-A-PPS-A | ISO 21287 Compact Cylinder 63mm Bore 50mm Stroke
Specifications
Ambient Temperature :
-
Model Number :
ADN-63-50-A-PPS-A
Power Supply :
1
Brand Name :
FESTO
MOQ :
1
Delivery Time :
Negotiable
Payment Terms :
T/T,XT,ALIPAY
Supply Ability :
100pcs per month
Price :
Negotiable
Packaging Details :
carton
Electrical Rating :
G
Certification :
ATEX
Certifications :
S
Place of Origin :
DE
Description
Festo ADN-63-50-A-PPS-A | ISO 21287 Compact Cylinder 63mm Bore 50mm Stroke
Festo ADN-63-50-A-PPS-A compact pneumatic cylinder. ISO 21287, 63mm bore, 50mm stroke, double-acting, PPS=pneumatic cushioning both ends, A=male piston rod thread, magnetic piston for sensor.

Product Overview

The Festo ADN-63-50-A-PPS-A​ is a double-acting compact pneumatic cylinder​ compliant with ISO 21287. It features a 63 mm bore, 50 mm stroke, adjustable pneumatic cushioning (PPS)​ at both ends, and a male piston rod thread (A). The piston includes an integrated magnet ring​ for position sensing with proximity switches. This space-saving design is approximately 50% shorter than an equivalent ISO 15552 cylinder, ideal for confined machine areas.

Technical Specifications (Dimensional & Mechanical)

Parameter
Specification
Model Code​
ADN-63-50-A-PPS-A​
Bore Diameter​
63 mm​
Stroke Length​
50 mm​
Piston Rod Thread​
Male (M16×1.5)​ — denoted by "A"
Cushioning​
Pneumatic Adjustable (PPS — both ends)​
Position Sensing​
Yes (Magnet Ring for Proximity Sensor)​
Ports​
G1/4"​ (BSPP)
Mounting Style​
Through-holes / Female thread on front cap (ISO 21287)

Technical Specifications (Performance & Operating)

Parameter
Specification
Action​
Double-acting​
Operating Pressure​
0.6 … 10 bar​
Theoretical Force @ 6 bar​
~1870 N (Advance), ~1740 N (Retract — accounts for rod area)
Operating Medium​
Filtered Compressed Air (to ISO 8573-1:2010 Class 4)
Ambient Temperature​
-20 … +80 °C​ (Standard)
Conforms to​
ISO 21287​
Material (Barrel/Rod)​
Hard-anodized Aluminum Alloy / High-alloy Steel (Chrome-plated)

Key Features

  • ISO 21287 Compliance:​ Standardized dimensions ensure interchangeability and smaller footprint than ISO 15552 cylinders.
  • Magnetic Piston:​ Built-in magnet allows easy mounting of slot-type proximity sensors (e.g., Festo SME/SMT series).
  • Adjustable Pneumatic Cushioning:​ PPS cushions absorb impact energy and reduce noise—adjustable via hex key for different loads/speeds.
  • Male Rod Thread:​ Simplifies direct attachment of clevis, eye, or custom tooling without adapter nuts.

Applications

  • Pick & Place Modules:​ Short-stroke clamping, ejecting, or pressing in assembly automation.
  • Packaging Machinery:​ Actuating folder flaps, pusher plates in confined spaces.
  • Testing Fixtures:​ Applying light clamping force in jigs and inspection stations.
Note: For elastic (non-adjustable) cushioning see the "A-P-A" variant. Sensors (SME-8M...) are ordered separately and clip into the cylinder body groove.
