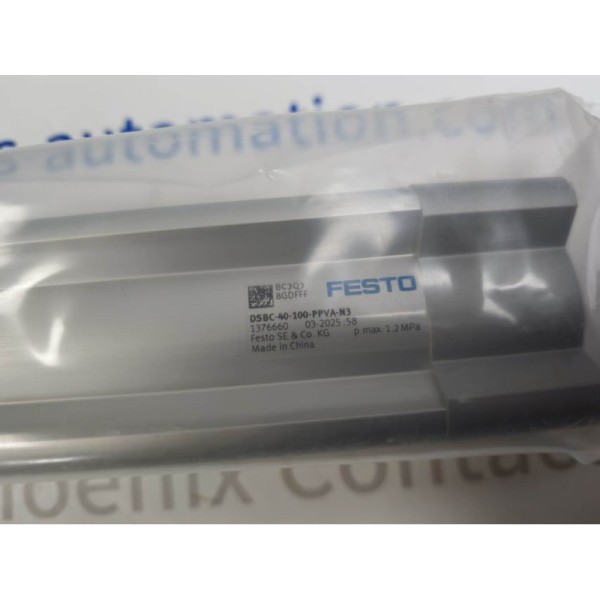

Festo DSBC-40-100-PPVA-N3 | ISO 15552 Cylinder 40mm Bore 100mm Stroke, PPV Air Cushion, N3 Proximity Slot
Festo DSBC-40-100-PPVA-N3 | ISO 15552 Cylinder 40mm Bore 100mm Stroke, PPV Air Cushion, N3 Proximity Slot
Festo DSBC-40-100-PPVA-N3 | ISO 15552 Cylinder 40mm Bore 100mm Stroke, PPV Air Cushion, N3 Proximity Slot
Festo DSBC-40-100-PPVA-N3 | ISO 15552 Cylinder 40mm Bore 100mm Stroke, PPV Air Cushion, N3 Proximity Slot
Festo DSBC-40-100-PPVA-N3 | ISO 15552 Cylinder 40mm Bore 100mm Stroke, PPV Air Cushion, N3 Proximity Slot
Festo DSBC-40-100-PPVA-N3 | ISO 15552 Cylinder 40mm Bore 100mm Stroke, PPV Air Cushion, N3 Proximity Slot
Specifications
Price :
Negotiable
Packaging Details :
carton
Certification :
ATEX
Model Number :
DSBC-40-100-PPVA-N3
Supply Ability :
100pcs per month
Electrical Rating :
G
Payment Terms :
T/T,XT,ALIPAY
Certifications :
S
Delivery Time :
Negotiable
Ambient Temperature :
-
Brand Name :
FESTO
MOQ :
1
Power Supply :
1
Description
Festo DSBC-40-100-PPVA-N3 | ISO 15552 Cylinder 40mm Bore 100mm Stroke, PPV Air Cushion, N3 Proximity Slot
Festo DSBC-40-100-PPVA-N3 ISO 15552 double-acting cylinder. 40mm bore, 100mm stroke, adjustable pneumatic cushion both ends (PPV), magnetic piston, N3 proximity sensor slot, G1/4 ports.

Product Overview

The Festo DSBC-40-100-PPVA-N3​ is a double-acting pneumatic cylinder​ conforming to ISO 15552 (formerly ISO 6431 / VDMA 24562)​ standard. It features a 40 mm bore, 100 mm stroke, adjustable pneumatic cushioning at both ends (PPV = Pneumatic Cushion Both Ends — Adjustable), and an integrated magnetic piston ring​ for non-contact position sensing. The -N3 suffix​ denotes the standard T-slot / C-slot proximity sensor groove​ along the barrel. Ports are G1/4"​ and the piston rod thread is M12×1.25 male.

Technical Specifications (Dimensional & Mechanical)

Parameter
Specification
Model Code​
DSBC-40-100-PPVA-N3​
Bore Diameter​
40 mm​
Stroke Length​
100 mm​
Piston Rod Thread​
Male M12 × 1.25​
Cushioning​
PPV — Adjustable Pneumatic Cushioning Both Ends​
Position Sensing​
Yes — Magnetic Piston (for C-slot / T-slot sensors, N3 = Festo standard groove)​
Ports​
G1/4"​ (BSPP Female)
Mounting Style​
Basic (Through-holes in front cap & rear clevis tapped hole — ISO 15552) — optional foot/lug/trunnion mounts available

Technical Specifications (Performance & Operating)

Parameter
Specification
Action​
Double-acting​
Operating Pressure​
0.6 … 10 bar​ (recommended 6 bar for catalog force values)
Theoretical Force @ 6 bar​
Advance: ~754 N / Retract: ~663 N (accounts for rod area)
Operating Medium​
Filtered Compressed Air (ISO 8573-1:2010 Class 4), lubricated or non-lubricated
Ambient Temperature​
-20 … +80 °C​ (Standard seals: NBR)
Conforms to​
ISO 15552 / VDMA 24562 / NF E49-003​
Material (Barrel / Rod / End Caps)​
Hard-anodized Aluminum Alloy Barrel / Chrome-plated High-alloy Steel Rod / Die-cast Aluminum End Caps
Weight (Approx.)​
~0.95 kg

Key Features

  • ISO 15552 Interchangeability:​ Standardized dimensions ensure drop-in replacement for cylinders from SMC (MB series), Norgren (RA/802x), IMI (Lintra Plus), etc.
  • Adjustable Pneumatic Cushioning (PPV):​ Hex-key adjustable cushions absorb impact energy smoothly — tunable for different payloads/speeds vs. fixed elastomeric bumpers.
  • Magnetic Piston + N3 Groove:​ Accepts Festo SME/SMT or SMT-8M C-slot/T-slot sensors — no drilling or brackets needed for end-position feedback.
  • Wide Mounting Options:​ Compatible with ISO-standard foot (FA/FB), clevis (CA/CB), trunnion (TC/TB), and pivot (UB/UF) accessories.

Applications

  • General Automation:​ Actuating clamps, pushers, ejectors, and lift tables on packaging and assembly lines.
  • Material Handling:​ Driving linear slides, diverter arms, and stopper cylinders on conveyors.
  • Process Skids:​ Pneumatic on/off for valve actuators, damper doors, and sample probes.
  • Retrofit Projects:​ Replacing legacy ISO 15552 cylinders — identical envelope and port locations.
Note: For elastic (non-adjustable) cushioning​ see DSBC-40-100-P-A-N3; for front flange / rear clevis pre-assembled​ add the appropriate mounting kit code (e.g., DSBC-40-100-PPVA-N3+FB-40 for front flange). Proximity sensors (SME-8M-DS-24V-K…) and mounting accessories are ordered separately and clip/screw into the N3 groove.

Festo DSBC-40-100-PPVA-N3 | ISO 15552 Cylinder 40mm Bore 100mm Stroke, PPV Air Cushion, N3 Proximity Slot
